ASUS ROG Strix Helios RGB Mid-Tower Gaming Case

asus rog strix helios

THE FIRST ROG CHASSIS Craft a showcase build with the ROG Strix Helios case from ASUS. This exclusive mid-tower gaming chassis features three smoked tempered-glass panels, is built with an aluminium frame and offers unique integrated front-panel RGB lighting which can be controlled via ASUS AURA Sync with a variety of colours and effects. Build the ultimate gaming machine with this incredible case, which can house all the way up to an EATX motherboard, with room for serious water-cooling setups and built-in cable management. The ROG Strix Helios provides impressive expandability and performance, perfect for any gaming enthusiast.

Enjoy Premium Design & Aesthetics

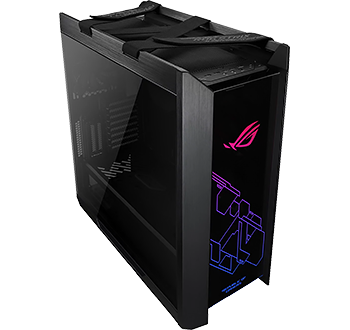

tempered glass

MADE WITH SMOKED TEMPERED GLASS The ROG Strix Helios is made for showcase builds with three 4mm, smoked tempered-glass panels fitted in a refined brushed-aluminum frame. A beautiful display of dynamic RGB lighting is integrated into the front panel to allow you to make your system stand out from the rest.

Versatile Cooling Options

cooling fans

SPACIOUS AREA FOR FANS The ROG Strix Helios can house three 120mm or three 140mm fans in the front, three 120mm or two 140mm fans on the top, and one 120mm or one 140mm fan on the rear of the case. This allows you to create a fantastic airflow to keep your system cool and performing at its best.

radiators

EXTENSIVE LIQUID COOLING SUPPORT You can install a radiator up to 420mm on the front of the ROG Strix Helios, or a radiator up to 360mm on top and one up to 140mm on the rear to enhance your cooling even further with liquid cooling.

Create Spectacular Visuals with RGB Lighting

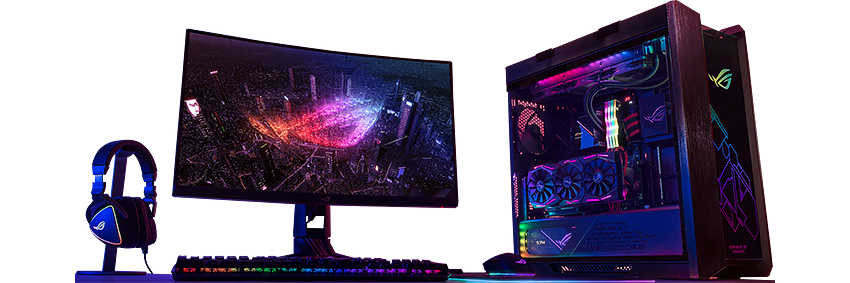

asus aura sync

VIA ASUS AURA SYNC Featuring integrated addressable RGB LEDs in the front panel that can be customized using a dedicated control button with Aura software, the ROG Strix Helios can display millions of colours and a range of effects. You can synchronize colours and effects with a vast ecosystem of components to create a visually appealing light show inside your rig.
*Note that some lighting effects require the ASUS Aura software and vary by model. Default case I/O panel lighting controls: Static, Breathing, Strobing and Rainbow.

Learn about the different effects you can use with Aura Sync:

static

STATIC

breathing

BREATHING

strobing

STROBING

rainbow

RAINBOW

cycle

COLOUR CYCLE

comet

COMET

flash

FLASH & DASH

wave

WAVE

yoyo

GLOWING YO-YO

night

STARRY NIGHT

music

MUSIC EFFECT

gpu temp

GPU TEMP

Show off your Components However you Like

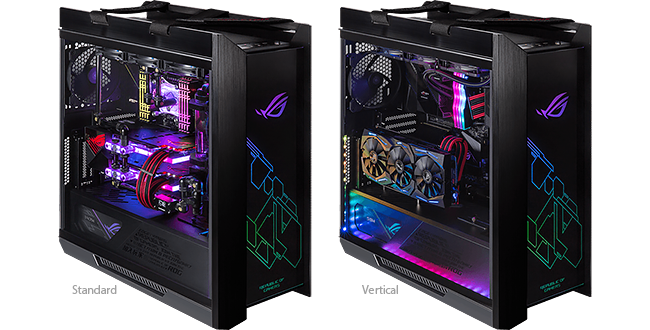

gpu mounting

FLEXIBLE GRAPHICS CARD MOUNTING The ROG Strix Helios allows you to display your graphics card either vertically or horizontally. Fit up to three graphics cards in a standard orientation, or two vertically for extra style points using a bundled bracket.
* A riser cable is required to install the graphics card vertically. (Sold separatley)

Super-easy Cable Management for Clean Build Design

EFFORTLESS CABLE MANAGEMENT Keep your build sharp, neat and tidy with the ROG Strix Helios' flexible covers and intuitive cable-management system.

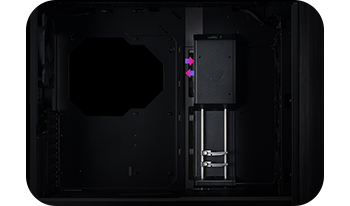

multi cover

MULTIFUNCTION COVERThis cover with GPU braces hides cable, provides support for your GPU and allows for an SSD or ROG Aura Terminal to be mounted for display.

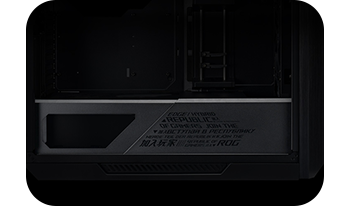

shroud

PSU SHROUDThe flexible two-piece PSU shroud has a front cut-out to enable compatibility with ROG Thor or other OLED-integrated power supplies.

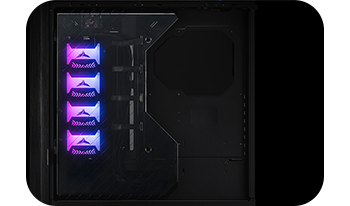

cable cover

REAR CABLE COVERA translucent rear cover conceals wiring and allows illumination from the ROG Aura Terminal, SSDs or other devices with RGB lighting to shine.

Numerous Connections to Keep you Plugged In

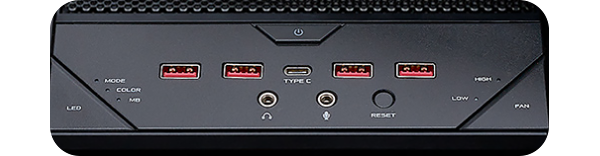

helios i/o panel

INNOVATIVE I/O PANEL The I/O panel of the ASUS ROG Strix Helios is loaded with connectivity options, including a reversible USB 3.1 Type-C™ port. It also features dedicated fan speed and RGB lighting controls for making adjustments easier than ever.

Access to Your System has Never Been Easier

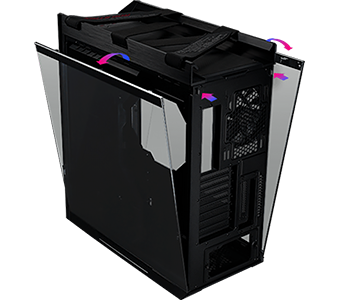

release panels

PANEL RELEASE BUTTONS One push of the release buttons at the rear of the case lets you swing down the side panels for instant, tool-less access to the interior. The tempered-glass panels are bottom-hinged, meaning they will remain supported at an angle until you're ready to detach them completely.

Make your Cooling Gear Simple to Install

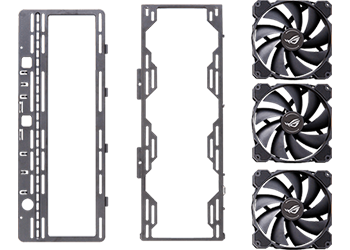

fan mounts

FAN & RADIATOR MOUNTS Two removable brackets let you easily mount fans and radiators before installing the whole unit into the case, simplifying your building experience.

Take your Gaming Machine Anywhere

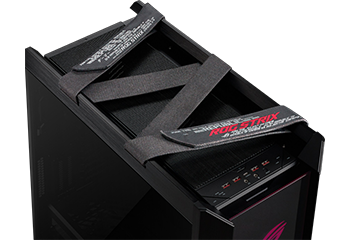

travel handles

COMFORTABLE CASE HANDLES Easily carry your gaming rig to LAN parties using the ergonomic and stylish fabric handles that have been rigorously tested to support up to 50 kg.

Always Enjoy a Super-Clean System

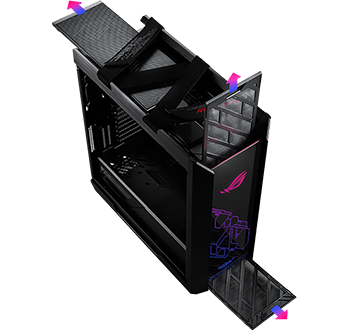

filters

DEDICATED DUST FILTERS The ROG Strix Helios features removable filterss on the top, front and bottom of the case. This provides all-round protection from dust and allows you to make short work of cleaning and maintenance so you can get back to gaming in no time.

Explore the Unmatched Potention of the ASUS ROG Strix Helios Case

video
Specifications
Core Chassis Specifications
Case Edition ROG Strix Helios
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (Upto 12" x 10.9")
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Fan Controller Buttons
  • 1 x Headphone Out
  • 1 x LED Control Button
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Reset Button
  • 4 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type-C
Drive Bays
  • 4 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
Standard Expansion Slots 8
Vertical Expansion Slots 2 (additional vertical)
Fans & Filters
Fan Bays 7 x 120mm / 6x 140mm
Fans Included 4 x 140mm
Fan Controller/Hub Front Panel Fan Controller
Dust Filters
  • Bottom
  • Front
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360/420mm
Top Radiator Compatibility 1 x 120/140/240/280/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120/140mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 190 mm
Max GPU Card Length 450 mm
Cable Routing Space 33 mm
Side Panels
Window/s Yes
Window Configuration
  • 1 x Alternate Side
  • 1 x Front
  • 1 x Main Side
Window Construction Tempered Glass (Tinted)
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Front Panel Addressable RGB LED Lighting
LED Lighting Colour RGB
LED Lighting Support & Control
  • Compatible with ASUS AURA Sync
  • Control via Compatible Motherboard D-RGB Header
  • Control via Inc. Controller/Hub (Buttons/Switches)
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 220 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Aluminium / Steel / Tempered Glass
Dimensions 250 x 591 x 565 (WxHxD mm)
Weight 18 kg (Approx)
