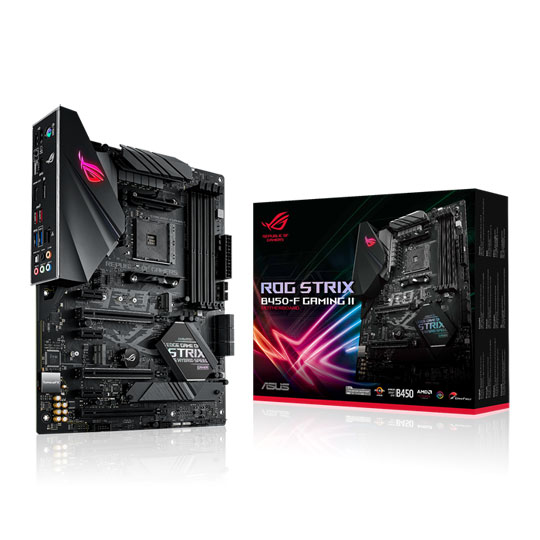

ASUS AMD Ryzen ROG STRIX B450-F GAMING II AM4 PCIe 3.0 ATX Motherboard
ASUS ROG STRIX B450-F GAMING II, AMD B450, AM4, DDR4, PCIe 3.0, Dual M.2, 3-Way CrossFire, GbE, USB 3.2 Gen2, ATX
By DPD On 21st Jun
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
ROG STRIX B450-F GAMING II AM4 ATX Motherboard from ASUS
Get The Most of your build The ROG STRIX B450-F GAMING II motherboard has been designed to help you create a well formed balanced build, the B450-F Gaming II packs a serious punch. Boasting amped-up robust power delivery, an optimised thermal design and more stable DRR4 memory the ROG Strix B450-F Gaming II is well-equipped to handle the latest 3rd Gen AMD Ryzen™ CPUs and beyond. Additional features include dual m.2 slots, USB 3.2 Gen 2, UEFI and ASUS technology, a premounted I/O shield and it's not just performance this motherboard excels in but aesthetics too with ASUS-exclusive AURA SYNC RGB lighting and technology combined with the unique Strix gaming spirit with its stylish cut across the I/O shroud, its cyberpunk-inspired ROG eye logo across the PCB plate, and futuristic cybertext highlights. You can rest assured your performance will take you higher and you'll look great doing it.
High Quality ROG STRIX Power Design
VRM Thermal DesignThe ROG Strix B450-F Gaming II uses new alloy chokes that deliver better efficiency, and high-quality thermal pads to help transfer heat from the VRM array to a sink that has ample surface area for the latest processors. And to ensure critical components always make optimal contact, there's a backplate on the rear of the board that helps balance MOSFET temperatures while providing structural reinforcement
Teamed Power Stages8+4 Power Stages combine high-side and low-side MOSFETs and drivers into a single dynamic package delivering the power and efficiency required to get the most from AMD CPUs.
Alloy Capacitors & ChokesSuperior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to a massive 110% performance increase compared to other industry standards.
digipower+ Power ControlAn innovative set of controllers for digital VRM and DRAM voltage. these controllers offer ultra-precise memory and voltage tune to grant maximum system efficiency, stability and performance.
Amped-UP PerformanceWith a robust power design to drive multi-core Ryzen processors, plus cooling, storage, connectivity and audio options for a wide range of hardware, ROG Strix B450-F Gaming II offers gamers everything they need for a budget or high-performance build.
Dual M.2 Slots for Better Performance
Dual PCIe 3.0 x4 M.2Dual PCIe® 3.0x4 M.2 slots provide NVM Express™ SSD RAID support for an incredible performance boost. Create a RAID configuration with up to three PCI Express® 3.0 storage devices via two M.2 slots and a PCIe x16 slot to enjoy incredible data-transfer speeds.
ROG SupremeFX Audio Technology
AI NOISE CANCELLING MICROPHONE SOFTWAREBuilt-in ROG SupremeFX audio technology ensures pristine audio for ROG Strix B450-F Gaming II. Along with ensuring a flat frequency response for a neutral, detailed sound signature, it offers two front-panel outputs driven by op amps that deliver high-quality audio to gaming headsets..
Outshine the Competition with ASUS Aura Sync
Your Motherboard, Your Way ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.
Boost your Game with Ramcache III
LAUNCH YOUR APPS AT NECK BREAKING SPEEDS RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds. Smart mode automatically caches all your storage devices to maximize your system's resources using an intuitive interface which displays real time drive information. RamCache III also allows you to efficiently check the health status of assigned memory.
ASUS Armoury Crate and More
Speed your game loads Armoury Crate is a new software utility designed to give you centralised control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate lets you easily customise RGB lighting and effects for compatible devices and synchronise them with Aura Sync to create a unified lighting scheme across your system. You can also use Armoury Crate to download the user manual, drivers and software. In addition, Armoury Crate features a dedicated product registration page as well as a news feed to help you stay in touch with the gaming community.
AI Networking Gives you Many More Features
THE MOST IMMERSIVE ENTERTAINMENT ROG Strix Gaming is VR Ready and beyond! The ASUS Beyond VR Ready marque means that ROG Strix Gaming has been tested with loads of class-leading components to ensure that your productivity, gaming, and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready provides a new way to configure and build your dream system with total confidence.
IdentificationGameFirst VI analyzes your usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps. The database is regularly updated to ensure that apps are recognised.
BoostGameFirst VI intelligently switches application priority and adjusts bandwidth as you need. When gaming, it accelerates and prioritises game packets giving you supersmooth online gameplay — even when you're streaming high-quality video or transferring large files.
VisualisationAn intuitive graph gives you an overview of the network in real time. Simply click on the tab to view current bandwidth usage of each application, geolocation status of each network connection, and an analysis of each WiFi channel.
World Renowned UEFI BIOS
Not just for veteransThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Mode An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
EZ(Easy) ModeEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

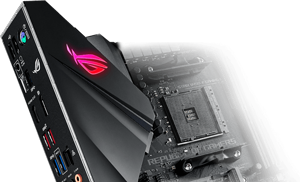

Pre-Mounted I.O ShieldROG’s patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.

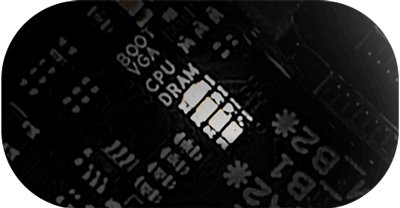

Q-LEDS Four onboard LEDs indicate power status, and any problem with the CPU, memory, graphics card or boot device for quick diagnosis

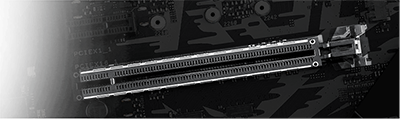

SafeslotThe reinforced ASUS SafeSlot provides stronger PCIe device retention and greater shearing resistance.

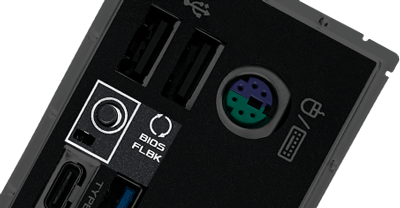

BIOS Flashback™ BIOS Flashback™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS Flashback port and press the button. Updates can even be performed without having memory or a CPU installed.
|Edition||ROG STRIX B450-F GAMING II|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||ROG SupremeFX 8-Ch. HD Audio S1220A|
|Primary GPU Interface||PCIe 3.0 (x16)|
|NVIDIA SLI Support||Not Supported|
|AMD CrossFire Support||3-Way CrossFire|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||
|SATA Support||SATA3 / M.2|
|RAID Support via||SATA3 / M.2|
|Storage Mode Support||
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Intel (Gigabit LAN)|
|Rear I/O Connectors||
|Board Dimensions||305 x 244 mm|
|Model Number||ROG STRIX B450-F GAMING II|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 36 months
- Return to base
- DOA Period:
- 28 days
- RTB Period:
- 36 months
