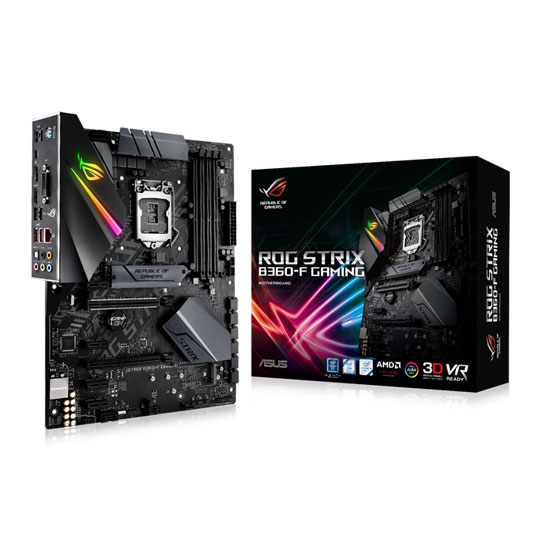

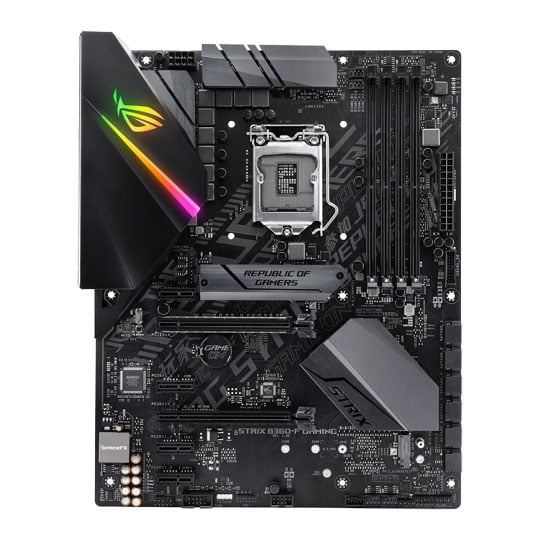

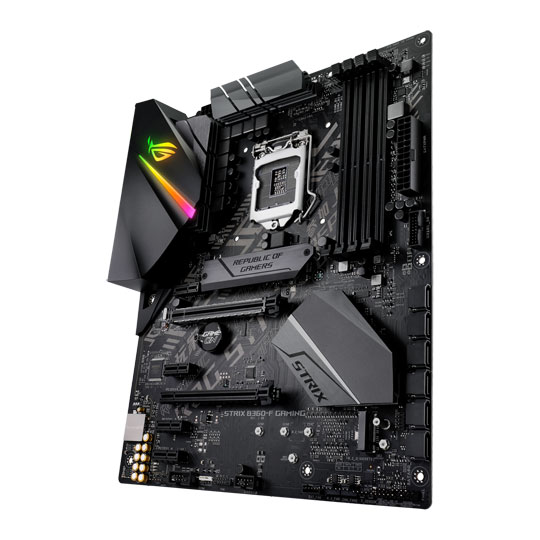

ASUS ROG STRIX Intel B360-F GAMING Coffee Lake ATX Motherboard

ASUS ROG STRIX B360-F GAMING, Intel B360, S 1151, DDR4, SATA3, Dual M.2, 2-Way CrossFire, GbE, USB 3.1 Gen2 A+C, ATX

Thumbnail 1 : ASUS ROG STRIX Intel B360-F GAMING Coffee Lake ATX Motherboard Thumbnail 2 : ASUS ROG STRIX Intel B360-F GAMING Coffee Lake ATX Motherboard Thumbnail 3 : ASUS ROG STRIX Intel B360-F GAMING Coffee Lake ATX Motherboard Thumbnail 4 : ASUS ROG STRIX Intel B360-F GAMING Coffee Lake ATX Motherboard ASUS ROG STRIX Intel B360-F GAMING Coffee Lake ATX Motherboard : video thumbnail 1 ASUS ROG STRIX Intel B360-F GAMING Coffee Lake ATX Motherboard : video thumbnail 2
Scan code: LN88963 Manufacturer code: ROG STRIX B360-F GAMING
From £11.58 / month (APR 14.9%)
Monthly Payment: £22.39
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £128.99
Total inc. interest: £134.29
Monthly Payment: £11.58
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £128.99
Total inc. interest: £138.95
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 19th Nov 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together
Product Overview ROG STRIX B360-F GAMING
Intel B360 ATX gaming motherboard with Aura Sync RGB LED lighting, pre-mounted I/O shield, dual M.2, on-board M.2 heatsink, SATA 6Gbps and USB 3.1 Gen 2.

ROG Pre-Mounted I/O Shield
ROG STRIX B360-F GAMING adopts ROG’s patent-pending Pre-mounted I/O Shield, a special design that provides increased protection against electrostatic discharge and a better DIY experience for users.

The new I/O Shield expands on the original design by streamlining the motherboard installation process reducing installation to a single step.

Gamer’s Guardian
Protect All Sides In Real World
DRAM Overcurrent Protect: All connection ports and DRAM are protected against overcurrent and short-circuit damage by on-board resettable fuses, extending your motherboard's life.
DIGI+ VRM: Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra- smooth and ultra-clean power delivery to the CPU at all times!
Highly Durable Components: Resist extreme temperature variations of between -55°C and 105°C —110% better than the industry standard.
Stainless Steel Back I/O: Crafted from chromium-plated, corrosion-resistant stainless steel, the input/output (I/O) panel is three times longer than ordinary panels!

Protect Your Graphics Card Investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance.

Easy PC Diagnosis
4 LEDs indicate problems with CPU, memory, graphics card or boot device for quick diagnosis with different colours.
The LED lights up to indicate that the system status. This is a reminder that you should shut down the system and unplug the power cable before removing any motherboard component.

Aura SDK
Infinite Possibilities
The Aura SDK is now available for public download. The Aura SDK serves as a framework to better integrate RGB lighting with games, programs, and more.
Hardware Partners: To allow for more involved development and expand the entire Aura ecosystem
Game Developers: Tools that can be used to enhance the gaming environment, aid game immersion, or display vital system stats via lighting effects
Independent Programmers: To create unique effects that fill specific and niche needs.

3D Printing Friendly Design
Make It Your Own
3D-printing-friendly motherboard with patent-pending mounting design, enabling users to mount their 3D-printed parts easily with standard M.2 nuts.
3D printing extends are not just decorations for your boards. Designs will continue to create an entire ecosystem of accessories to truly make your PC unique.

M.2 Cooling Solution
Keeps Your Drive Cool, Makes Your Board Cooler
To keep M.2 SSD drives cool and maintain stable operation, ROG Strix H370-F/B360-F offer an M.2 heatsink: an upgrade that adds style and functionality.
T-Sensor Header: Connect bundled thermal sensor cable to monitor M.2 device temperature anytime.
M.2 Fan Header: The M.2 fan can work with the temperature sensor for better active air cooling effect.

PCIe 3.0 Lanes
ROG Strix H370-F/ B360-F Gaming CPU PCIE 3.0 lane allocation for discrete VGA cards.

ASUS OptiMem Technology
ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signalling by balancing trace lengths between memory slots.

These enhancements allow the H370-F and B360-F to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload – whether you're gaming or running intensive applications.

Dual M.2 On-Board
Let Your SSDs Scream at Top Speed
• Dual M.2 slots (2242-2280).
• 1 x NVMe and 1 x SATA/PCIEx2 M.2 SSD devices support for an incredible performance boost.
• Intel Optane Memory Ready.

Fan Control – Fan Xpert 4
Increase GPU as a Source of Fan Tuning
When the CPU in the water-cooled state, GPU is the key factor for case’s environmental temperature. The new fan control function can set GPU temperature as a fan tuning source, more accurate and effective to reduce the system temperature!

Gaming Audio
SupremeFX, Sonic Studio III, Sonic Radar III
ROG Strix H370/B360 series offers superior HW & SW solutions to satisfy your audiophile needs. The audio upgrades bring the features to another level, such as better experience in gaming, music recording and web-broadcasting.

Audio Line Shielding
Precision analog/digital separation block electromagnetic interference from the motherboard or add-ons to provide cleaner audio.

Dual OP AMPs Designed For Front Panel Headphone Devices
Drive some of the very best headphones from 32 ohms to 600 ohms available for exceptional gaming-audio and music-listening experiences.

Audio Cover
Effective shielding preserves the integrity of audio signals for the best quality.

Premium Nichicon® Audio Capacitors
Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.

S1220A Codec
ROG’s awesome SupremeFX audio technology has levelled up with the new SupremeFX S1220A codec. It delivers an exceptional 120dB signal-to-noise ratio (SNR) on the line-out connection and that means supreme quality! We’ve also added a low-dropout regulator for cleaner power delivery to the codec.

Intel Ethernet
More throughput, less processing, great gaming experience.

Pumped-up throughput, Best surge protection.

GameFirst IV
Network-optimization software for no delay gameplay.

ROG GameFirst IV
Multi-Gate Teaming – Team Up To Banish Lag
GameFirst IV optimizes network traffic for faster, lag-free online gaming — and the Multi-Gate Teaming can further team up to four network connections for maximum and the smoothest-ever gameplay.

ROG Clone Drive
Clone Drive is a smart and convenient software that allows you to simultaneously make an exact image or clone of your computer's storage device to up to two other drives. Features • LGA1151 Socket: Ready for 8th Gen Intel® Core™ desktop processors.
• Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including RGB strips.
• Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.
• 3D-Printing-Friendly Design: Dedicated 3D mounts make quick work of fitting 3D-printed parts.
• On-Board M.2 Heatsink: Cools M.2 drive to deliver consistent storage performance and enhanced reliability.
• Advanced Cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.
• Gaming Audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.
• Gaming Connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C™ connectors.
• Gaming Networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer, lag-free online play.
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel B360
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 64GB (4x16GB)
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • DVI-D
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3
  • 1 x M.2, 22-42/60/80, PCIe Gen3/SATA
  • 4 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via Not Supported
Storage Mode Support
  • Intel Optane Memory Ready
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 5-pin EXT_FAN(Extension Fan) connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x M.2 Fan Header
  • 1 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x T_Sensor Connector
  • 1 x TPM Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)

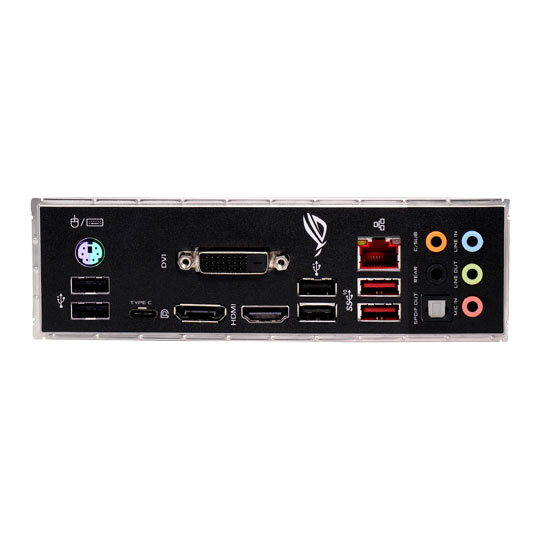

Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x DVI-D
  • 1 x HDMI 1.4b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 2 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 244 mm
Additional Information
Scan Code LN88963
Model Number ROG STRIX B360-F GAMING
GTIN 4712900906202
