Scan code: LN120780 Manufacturer code: ROG MAXIMUS Z690 HERO

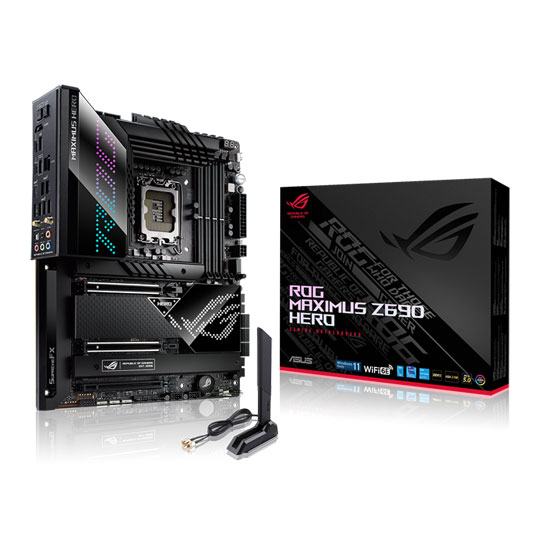

ASUS Intel Z690 ROG MAXIMUS HERO DDR5 PCIe 5.0 ATX Motherboard

ASUS ROG MAXIMUS Z690 HERO, Intel Z690, S 1700, DDR5, PCIe 5.0, SATA3, M.2, 2.5GbE/ax WiFi, TB4, ATX

Thumbnail 1 : ASUS Intel Z690 ROG MAXIMUS HERO DDR5 PCIe 5.0 ATX Motherboard Thumbnail 2 : ASUS Intel Z690 ROG MAXIMUS HERO DDR5 PCIe 5.0 ATX Motherboard Thumbnail 3 : ASUS Intel Z690 ROG MAXIMUS HERO DDR5 PCIe 5.0 ATX Motherboard Thumbnail 4 : ASUS Intel Z690 ROG MAXIMUS HERO DDR5 PCIe 5.0 ATX Motherboard
Scan code: LN120780 Manufacturer code: ROG MAXIMUS Z690 HERO
£519.98Item due today
Due today
From £14.45 / month (APR 0%) or 0% for 4 months
Monthly Payment: £43.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £519.98
Total inc. interest: £519.98
Monthly Payment: £21.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £519.98
Total inc. interest: £519.98
Monthly Payment: £14.45
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £519.98
Total inc. interest: £519.98
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £12.99 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
ASUS Cashback Promo

ROG Z690 Maximus Hero Intel 12th Generation ATX Motherboard

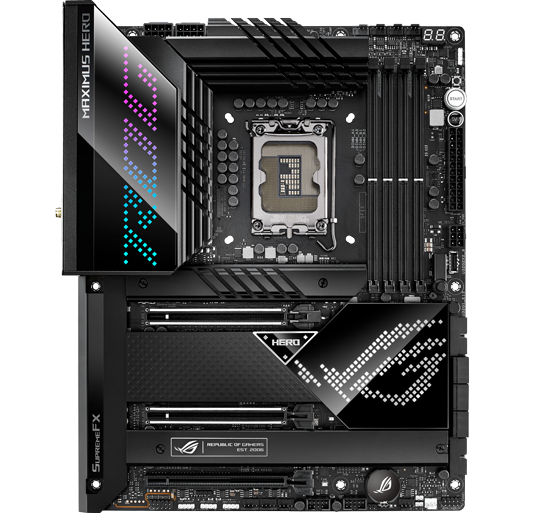

ASUS ROG Maximus Hero Z690 Motherboard

GET READY FOR THE NEWEST GENERATION Introducing the newest series of Z690 motherboards – ROG Maximus Hero from ASUS. The ROG Maximus Z690 Hero is a quintessential strand of the Republic of Gamers DNA, replete with high-octane components to satisfy users who seek an introduction to the enthusiast-grade Maximus line. Its arsenal of cooling, power delivery and connectivity stands ready to handle whatever the latest 12th Gen Intel® Core™ processors throw at it. And with its new animated Polymo lighting display on the I/O cover that dazzles with vibrant RGB logos and patterns, the ROG Maximus Z690 Hero has the looks to match its leverage.

Please note: This motherboard is compatible with Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® Z690Chipset

LGA 1700CPU Socket

12th Gen Intel®Compatible Processors

ATXForm Factor

Teamed Power Architecture and Power Solution

Breakdown

1. Supports the latest 12th Gen Intel® Processors
2. Dual Channel Memory, Max. 128GB, DDR5 / Supports Intel® XMP and OPTIMEM III
3. PROCOOL II Power Connector   |   4. 20+1 Power Stages
5. Expansion Slot: 2x PCIe 5.0 x16 slots / 1x PCIe 4.0 x16 slot (x4, x4/x4 via ROG Hyper M.2 Card)
6. Three M.2 Socket: supports PCIe 4.0 x4, 3.0 x4, PCIe 4.0 x4 & SATA modes
Two M.2 Socket via ROG Hyper M.2 Card: supports PCIe 5.0 x4/PCIe 4.0 x4 mode / PCIe 4.0 x4 mode

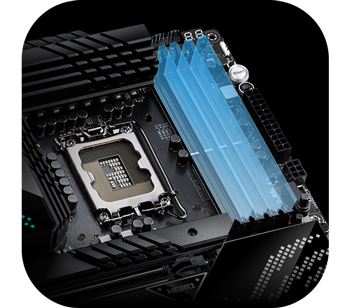

Experience DDR5 Overclocking Strength

Push frequency and timings to the max Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the Maximus Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).

features

A dedicated circuit for DDR5Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.

features

High-quality components 1. 10K Black metallic capacitors
2. MicroFine alloy chokes
3. The VRM features 20+1 power stages
4. 8+8-pin PROCOOL II power connectors
The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.

AI Overclocking at a Glance

Intelligent Motherboard ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition. Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push each system to its limits.

features

Designed by ExpertsFor each new motherboard platform, ROG in-house experts painstakingly profile thousands of processors and system configurations to hone the highly advanced algorithm of AI Overclocking.

features

Predictive EdgeThe algorithm analyses your CPU and system cooling, and then defines optimal voltage and frequency settings. Predicted values can be applied manually or engaged automatically to save time.

features

Real-time AdjustmentsOnce activated, the AI Overclocking utility continually tracks vital system stats, making profile adjustments to account for changes in system usage or ambient temperature.

Top-level PC Performance Demands Exceptional Cooling

cooling

Cooler by design The ROG Maximus Z690 Hero is armed with robust VRM and chipset heatsinks that provide the perfect balance of mass and surface area for heat dissipation. Load up with an AIO or custom cooling loop paired with your choice of fans to keep thermals under complete control. Three dedicated heatsinks keep up to three M.2 drives in the optimum operating temperature range for consistent performance and reliability.

1. VRM and aluminium I/O heatsink
2. Three dedicated M.2 heatsinks
3. L-shaped heatpipe
4. High-conductivity thermal pad
5. Dual M.2 slots feature M.2 backplates
6. Dedicated chipset heatsink

Grow your RGB Gaming World

RGB

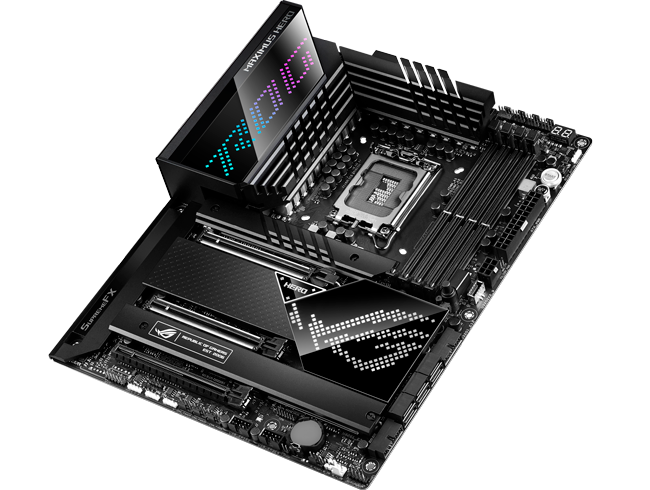

Personalize and gear up with ROG components In addition to elite performance, ROG Maximus Z690 Hero introduces the new Polymo Lighting display, gracing the I/O cover with an eye-catching microstructural array of light and color. This intricate design features two RGB patterns, empowering builders to show off a luminous RGB style that they won’t see anywhere else. From graphics card and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so you’ll enjoy greater choice as your system expands.

Expert Thermal Management

cooling

The most comprehensive cooling options ever Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI. Every onboard header auto-detects any PWM or DC fan, with three chassis fan headers offering ASUS HYDRANODE support. Includes a dedicated PWM/DC header for self-contained water-cooling setups.

cooling

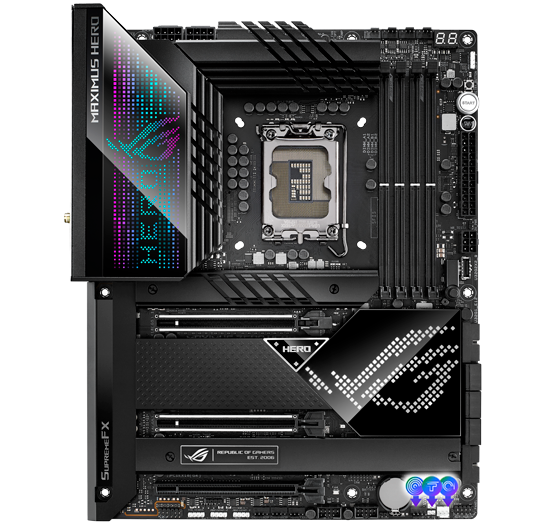

Water-cooling headers A dedicated header can supply over 3 amps to a high-performance PWM or DC water pumps. A dedicated header enables monitoring of temperatures at the input/output points of any component. A dedicated header enables constant monitoring of flow rate throughout the entire loop.

Cooling Solution Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop. ROG Maximus Z690 Hero features the most comprehensive cooling options ever.

Need More M.2 Storage or Even Faster Data Transfers?

features

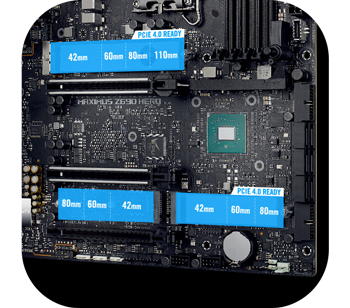

Three Onboard M.2 SlotsROG Maximus Z690 Hero features three onboard M.2 slots, with two offering support for the latest PCIe 4.0 SSDs.

features

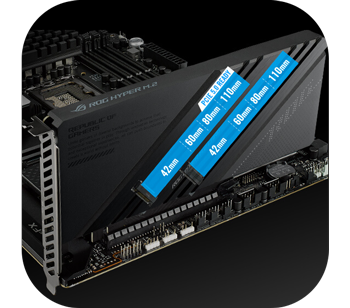

ROG HYPER M.2 CARD PCIE 5.0 READYThe bundled ROG Hyper M.2 Card features two more slots, one of which is a PCIe 5.0 and ready to perform at up to twice the speed of the accompanying PCIe 4.0 slot.

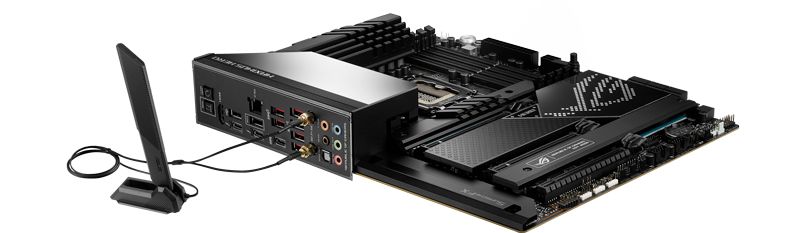

Supreme Networking Capability

Networking

Intel® WIFI 6E (GIG+)Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.

Intel® 2.5 GB EthernetOnboard Intel® 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, smooth lag-free gaming and high-res video streaming.

Onboard USB Ports and Thunderbolt 4 Connectivity

features

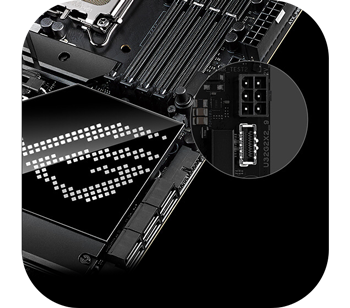

FRONT-PANEL CONNECTOR WITH QUICK CHARGE 4+USB 3.2 Gen 2x2 adds an additional lane that can boost Type-C data transfers with speeds of up to 20 Gbps. The port also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.

features

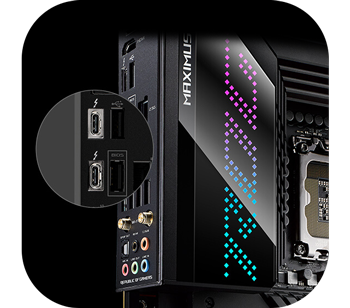

TWO THUNDERBOLT 4 USB-C® PORTSEach port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps.

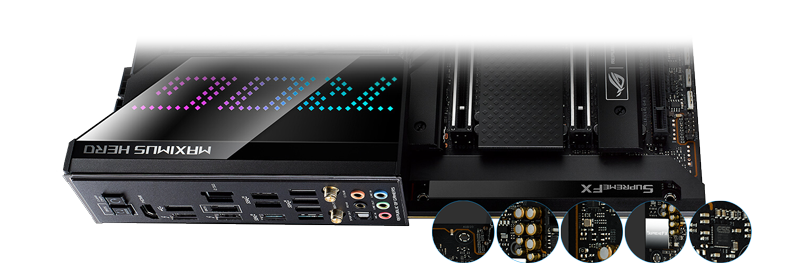

Fine-quality Components for Exceptional Clarity & Fidelity

Audio

Unique Design Features for Powerful Audio ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. There's also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec, and an ESS® 9018Q2C integrated DAC capable of reaching -115dB THD+N to provide playback that conveys all the subtlety and nuances of the audio track. ROG Maximus Z690 Hero includes a pre-loaded DTS Sound Unbound app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

Control your Rig with Armoury Crate

Armoury Crate

account management software Armoury Crate is a software utility designed to provide centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.

Specifications
Core Specifications
Edition ROG MAXIMUS Z690 HERO
Form Factor ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400+(OC)
Max. Memory Capacity 128GB
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 1 x PCIe 4.0 x16
  • 2 x PCIe 5.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
Internal I/O
  • 1 x 2-pin W_IN connector
  • 1 x 2-pin W_OUT connector
  • 1 x 24-pin (Power)
  • 1 x 3-pin W_FLOW connector
  • 1 x 4-pin AIO Pump Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 6-pin PCIe (Power)
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x FlexKey Button
  • 1 x Front Panel Audio Header
  • 1 x ReTry Button
  • 6 x SATA III - 6Gb/s
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 5 x Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x HDMI
  • 1 x S/PDIF-Out (Optical)
  • 2 x Thunderbolt 4
  • 2 x USB 2.0
  • 6 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 x 490 mm
Note
Additional Information
Scan Code LN120780
Model Number ROG MAXIMUS Z690 HERO
GTIN 4711081455493
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
