Scan code: LN101523 Manufacturer code: ROG CROSSHAIR VIII IMPACT

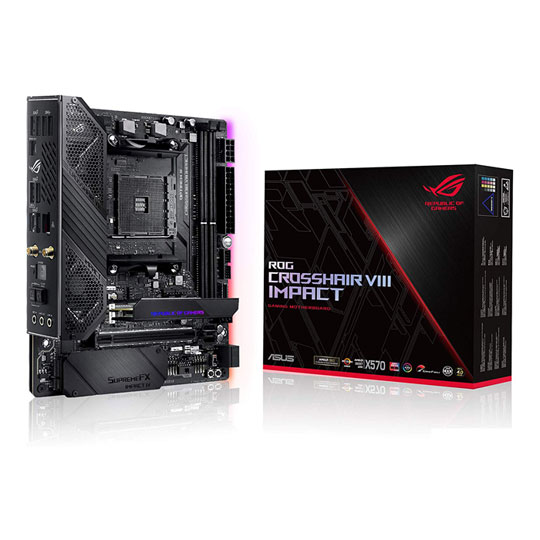

ASUS AMD Ryzen X570 ROG Crosshair VIII IMPACT WiFi AM4 PCIe 4.0 Mini-DTX Motherboard

ASUS ROG Crosshair VIII IMPACT (WI-FI), AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2.5G/5Ghz WiFi 6, Mini-DTX

Free FREE ROG SHEATH XL PAD WORTH £34.99 - LN 72246
Thumbnail 1 : ASUS AMD Ryzen X570 ROG Crosshair VIII IMPACT WiFi AM4 PCIe 4.0 Mini-DTX Motherboard Thumbnail 2 : ASUS AMD Ryzen X570 ROG Crosshair VIII IMPACT WiFi AM4 PCIe 4.0 Mini-DTX Motherboard Thumbnail 3 : ASUS AMD Ryzen X570 ROG Crosshair VIII IMPACT WiFi AM4 PCIe 4.0 Mini-DTX Motherboard Thumbnail 4 : ASUS AMD Ryzen X570 ROG Crosshair VIII IMPACT WiFi AM4 PCIe 4.0 Mini-DTX Motherboard
Scan code: LN101523 Manufacturer code: ROG CROSSHAIR VIII IMPACT
£349.99
Order now and get it tomorrow, Thu 29th Jul
From £16.80 / month (APR 14.9%)
Monthly Payment: £31.42
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £349.99
Total inc. interest: £377.04
Monthly Payment: £16.80
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £349.99
Total inc. interest: £403.18
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.74 / month (APR 15.9%)
Delivery Options
  • By DPD On 29th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

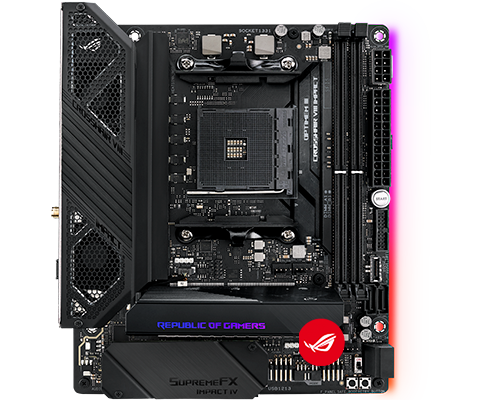

ASUS X570 ROG Crosshair VIII Impact Mini-DTX Motherboard

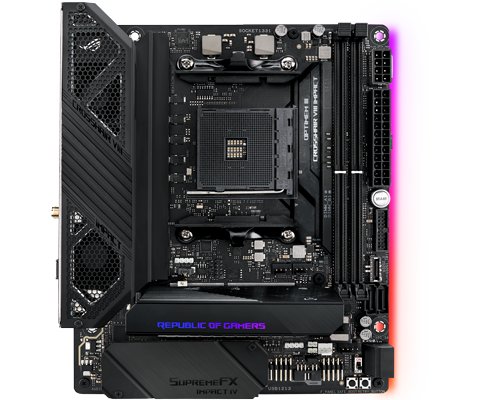

Equipped to Handle the new AMD Ryzen 3rd Gen CPUSThe ROG Crosshair VIII series heralds the arrival of Impact, the compact motherboard with colossal potential. Primed for the latest 3rd Generation Ryzen CPUs, the Impact's tiny Mini-DTX frame is packed with the latest ATX grade features including dual m.2 slots, Wi-Fi 6 technology, PCIe 4.0 technology, SupremeFX audio, Aura Sync RGB LED lighting, SATA 6Gb/s and USB 3.2 Gen 2. Coupled with advanced power delivery and cooling solutions the ROG Crosshair VIII Impact is the perfect motherboard for gaming enthusiasts who prefer a smaller form factor that is ready to rival it's full sized siblings.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

Mini-DTXForm Factor

Compact Small-Form Factor Design

Compact Mini-DTX

Just what is Mini-DTX?Impact’s unusual Mini-DTX form factor is a deliberate choice. Many Mini-ITX cases ship with enough space for a dual-slot graphics card, meaning there’s typically unused space below the bottom PCIe® slot – space that could be utilized to mount more components or enable additional features. Being marginally taller than mini-ITX allows Impact to exploit this unused space, allowing ROG engineers to squeeze in features while still fitting a large proportion of mini-ITX PC cases.

Ready for New Multi-Core Processors

Power Connectors

8-pin Power ConnectorsThe latest ProCool II power connector offers higher endurance and longer lifespan by lowering impedance to prevent hotspots and connector failure. The new design includes upgrades to metal amour and solid pins for better dissipation.

Mosfets

Power Stage MosfetsThe VRM is comprised of 8+2 TDA21472 power stages, each rated to handle 70 amps.

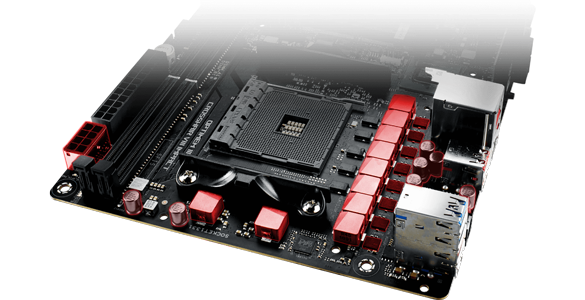

Power

Robust Power DeliveryThe monstrous compute power of multi-core processors necessitates a power circuit that rapidly responds to massive current swings. Featuring an array of 10 strategically paired power stages, the Impact's VRM is geared for any workload and all operating conditions. Robust power delivery starts at the component level. Every aspect of the ROG Crosshair VIII Impact's VRM is generously over-specified for the task.

Choke

Microfine Allow ChokesEach power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

Caps

10K Black Metallic CapacitorsMetallic capacitors Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.

Double Capacity DIMM Support

Double capacity Dimm Support

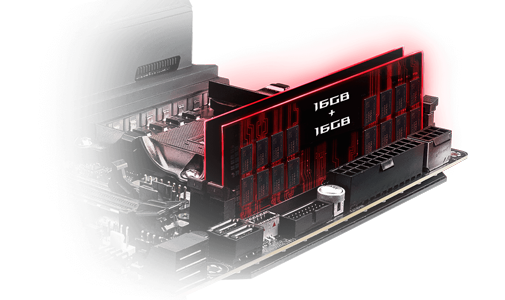

Featuring ASUS Optimem IIIInfused with proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, Optimem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack the Impact with your favorite modules and maximize Ryzen 3000 throughput for applications that demand massive bandwidth, or balance infinity fabric and memory performance for a diverse range of workloads. Crosshair VIII Impact features a unique memory-trace design that supports up to 32GB per slot for a total memory capacity of 64GB. With double-capacity UDIMM modules, the Impact delivers four-DIMM memory capacity in a compact, dual-DIMM design.

Advanced Connectivity for a Seamless Gaming Experience.

WiFI 6

Wi-Fi 6 (AX200)ROG Crosshair VIII Impact comes with onboard Wi-Fi 6 (802.11ax) support, offering ultrafast networking speeds, improved network capacity and better performance in dense Wi-Fi environments for exceptional online gaming experiences with the convenience of a wireless connection.

Intel EthernetROG Crosshair VIII Impact features the latest Intel® Ethernet (I211-AT) ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.​​

Exceptional Audio

Exceptional Audio

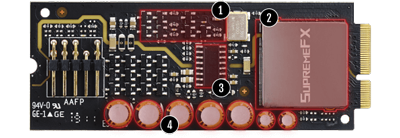

1. Switching MosfetsUnique design allows the codec's impedance-sensing function to be ported to either the front or rear headphone. 42. s1220 Codec10 DAC channels, simultaneous 7.1 channel playback, independent 2.0-channel, multiple-stream stereo to front panel outputs. 3. ESS ES9023PThe ESS® ES9023P digital-to-analog converter creates a perfect balance for top-tier audio clarity capable of 112db DNR /-94dB THD+N for superior front-panel output. 4. Nichicon CapsFine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.

Innovative Storage to Keep your Stuff

Dual M.2

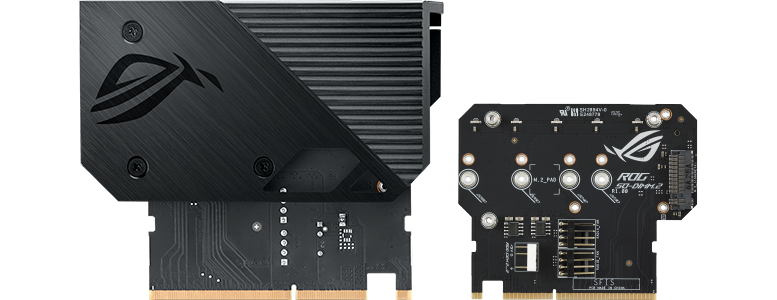

Dual M.2 Storage with SO-Dimm.2 AIC Dual PCIe 4.0 M.2 slots support up to 2280 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform. The Bundled ROG SO-DIMM.2 is an innovative expansion card that allows two PCIe® 4.0 M.2 drives to be connected via Impact’s SO-DIMM interface. You can then add metal heatsinks, helping to control thermals for maximum performance while elevating the aesthetics.

Light Up your System with ASUS Aura Sync

Aura Sync

Grow Your Gaming WorldGear up with ROG components, from graphics and monitors, to mice and keyboards, and up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands. Control your lighting and choose from numerous lighting effects to bring a personal touch to your system.

Ultimate Cooling Performance with ASUS ROG

Thermal

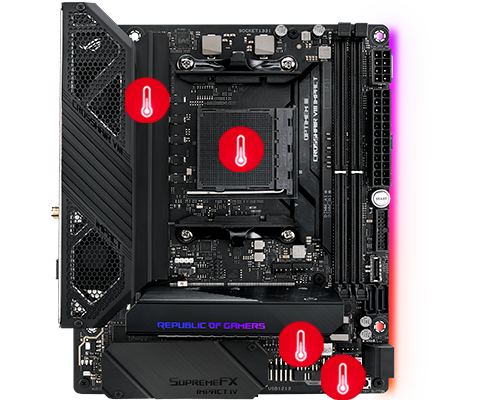

Multiple Temperature Sources Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.

Pump

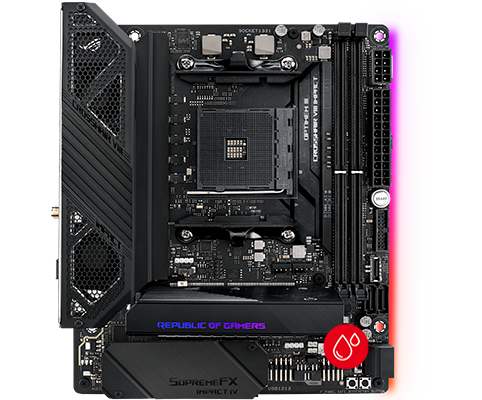

Water Pump+ A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.

Fans

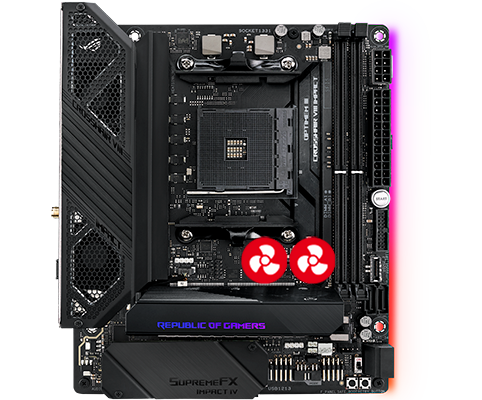

4-Pin PWM/DC Fan Every onboard header supports auto-detection of PWM or DC fans.

ROG

ROG Water-Cooling Zone Water In/Out and water-flow headers feed status information straight into the AI Suite utility, so you can keep track of coolant temperatures and the flow rate of the entire loop to ensure the best cooling performance.

Control Your Rig With Detailed Tuning Software

Fan Xpert 4

Flexible Cooling Controls With the ROG Series you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

TPU Insight

CPU Performance Boost Unleash your PC’s full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

EPU Guidance

All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.

Turbo App

Optimization for gamers and professionals Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App every day. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level, meaning your ROG system is perfectly optimized for what you're doing.

DIGI+POWER CONTROL

Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Specifications
Core Specifications
Edition ROG Crosshair VIII Impact
Form Factor Mini-DTX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio ROG SupremeFX 8-Channel HD Audio
Graphics Support
Primary GPU Interface None
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots 1 x PCIe 4.0 x16
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Aura RGB Strip Headers
  • 3 x Chassis Water Pump/Fan Connector
  • 1 x CPU Fan Connector
  • 1 x Front Panel Connector
  • 1 x LN2 Mode jumper(s)
  • 2 x M.2
  • 1 x NODE connector
  • 1 x Reset Button
  • 1 x ReTry Button
  • 1 x Safe Boot Button
  • 4 x SATA III - 6Gb/s
  • 1 x Slow Mode Switch
  • 1 x START (Power On) button
  • 1 x System panel connector
  • 1 x T_Sensor Connector
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x W_FLOW header
  • 1 x W_IN header
  • 1 x W_OUT header
  • 1 x Water Pump Header
External Connectivity
Network Interface Type
Network Chip/Modules
  • 2 x 802.11ax WiFi + BT5
  • 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x ASUS Wi-Fi GO! module
  • 1 x Clear CMOS Button
  • 1 x Line In (LED-Illuminated)
  • 1 x Line Out (LED-Illuminated)
  • 1 x Mic-In
  • 1 x Q-Code LED
  • 1 x Reset Button
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 3.2 Gen1 Type-A
  • 6 x USB 3.2 Gen2 Type-A
  • 1 x USB BIOS Flashback Button
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 203 x 170 mm
Note AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Additional Information
Scan Code LN101523
Model Number ROG CROSSHAIR VIII IMPACT
GTIN 4718017372558
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
