Scan code: LN114282 Manufacturer code: 90MB1590-M0EAY0

ASUS AMD Threadripper Pro WS WRX80E-SAGE SE WIFI PCIe 4.0 eATX Motherboard

ASUS PRO WS WRX80E-SAGE SE WIFI, AMD WRX80, sWRX8, DDR4, 3x M.2, SLI/CrossFire, Dual 10GbE, ax WiFi, USB 3.2 Gen2, E-ATX

Thumbnail 1 : ASUS AMD Threadripper Pro WS WRX80E-SAGE SE WIFI PCIe 4.0 eATX Motherboard Thumbnail 2 : ASUS AMD Threadripper Pro WS WRX80E-SAGE SE WIFI PCIe 4.0 eATX Motherboard Thumbnail 3 : ASUS AMD Threadripper Pro WS WRX80E-SAGE SE WIFI PCIe 4.0 eATX Motherboard Thumbnail 4 : ASUS AMD Threadripper Pro WS WRX80E-SAGE SE WIFI PCIe 4.0 eATX Motherboard
Scan code: LN114282 Manufacturer code: 90MB1590-M0EAY0
£889.99
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
From £30.41 / month (APR 14.9%)
Monthly Payment: £79.90
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £889.99
Total inc. interest: £958.76
Monthly Payment: £42.72
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £889.99
Total inc. interest: £1,025.24
Monthly Payment: £30.41
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £889.99
Total inc. interest: £1,094.54
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £22.23 / month (APR 15.9%)
Delivery Options
  • By DPD On 26th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together
Product Overview

Ultimate Power for Professional Productivity

ASUS Pro WS WRX80E-SAGE SE WIFI is engineered to unleash the incredible power of the latest AMD® Ryzen® Threadripper™ Pro series processors and is a reliable foundation for professional creative workloads that benefit from multi-core CPUs, such as video editing and 3D rendering. Additionally, seven PCIe 4.0 slots with SafeSlot fortification deliver exceptional performance with the latest high-power graphics cards.


Low-Profile Professionalism

With metallic black aluminium extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS WRX80E-SAGE SE WIFI presents a professional, low-profile look for content creators.?


Multi-GPU Support

Pro WS WRX80E-SAGE SE WIFI features seven PCIe® 4.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modelling and simulation, and rendering applications.


Intel Dual 10G Ethernet

Featuring dual onboard 10G LAN ports powered by the cutting-edge Intel X550-AT2 Ethernet controller, Pro WS WRX80E-SAGE SE WIFI makes short work of multi-terabyte transfers and provides server-grade connectivity with low-latency.


USB 3.2 Gen2x2 Type-C

The latest USB standard doubles transfer bandwidth by opening another USB 3.2 Gen2 lane to achieve its maximum throughput of up to 20Gbps. In addition to blazingly fast data-transfer speeds, USB 3.2 offers easy connectivity and ultimate flexability via USB-3 ports.


Front Panel Connector

The front panel USB 3.2 Gen2 connector is ready for next-gen PC cases and devices.


3 M.2 PCIe 4.0

Pro WS WRX80E-SAGE SE WIFI includes three M.2 and two U.2 slots wired to PCIe 4.0 x4 bandwidth. Creators working with massive video files can RAID together multiple NVMe devices for massive I/O bandwidth and seamless playback in their editing bays. These three slots rest under dedicated heatsinks to prevent SSD throttling under heavy loads.


More Storage

With NVMe RAID support for Ryzen™ Threadripper™ PRO processors, unused CPU PCIe® 4.0 lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs to provide incredible throughput — up to 8x faster than individual PCIe® 3.0 x4 SSDs. RAID can also be configured with PCIe® 3.0 SSDs.

Please note: With included ASUS Hyper M.2 x16 Gen 4 card. RAID is limited to a maximum of 10 NVMe SSDs on the AMD WRX80 platform.


ECC Memory Support

AMD Ryzen™ Threadripper™ PRO processors offer unrivalled memory bandwidth and supports 8 memory channels, up to 2048 GB. It supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure your creativity consistency and stability.


Intel® WiFi 6

The Intel® WiFi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimised for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.


ASMB9-iKVM for Remote Management

An integrated BMC (Baseboard Management Controller) is a key feature for workstations. It uses an Intel X550 dual 10 Gigabit Ethernet controller, with one port dedicated to the BMC to provide the intelligence for its IPMI architecture. The BMC manages the interface between system-management software and platform hardware. Administrators can remotely communicate with the BMC to take some corrective actions — such as resetting or power cycling a system.


16 Power Stages

Pro WS WRX80E-SAGE SE WIFI’s VRM is comprised of 16 power stages, delivering the power and efficiency that the latest AMD processors demand.


6-Pin Power Connectors

Two additional PCIe 6-pin power connectors can add power output stability when creators use many graphic cards onboard.


SOC and DRAM Heatsink

Since mass and airflow are critically important, our VRM heatsink is manufactured with skived, high aspect ratio thin fins. An SOC heatsink uses a semi-passive fan to draw heat away from the dual 10G LAN.


Actively Cooled Heatsink

The heatsink fin density is optimised to maximise surface area while maintaining a low-resistance exhaust path. The custom low-noise fan features a high-durability bearing with a 60,000-hour L10 lifespan.

Please note: L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.


M.2 Heatsinks

Three M.2 slots are covered by heatsinks to combat temperature-induced throttling that can affect performance during heavy, sustained storage loads.


Side-Mounted Connectors

Unique side-mounted connectors on the front-panel of the chassis keep cables away from the graphics cards and provide cleaner routing, easier management and a streamlined installation process.


Pre-Mounted I/O Shield

The patented I/O shield is finished in sleek matte black and comes pre-mounted for easy installation on the motherboard and is designed to allow air flow to keep the heat away from the board.


BIOS Flashback™

Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack™ port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU aren't present.


Immersive Audio Experience

The Realtek ALC4080 audio codec features high quality 120 dB SNR stereo playback output and 113 dB SNR recording input to offer pristine audio quality and is supported by EMI shielding and separate PCB layers for the left and right channels to maintain signal integrity. Additionally, DTS:X Ultra technology enables louder, immersive 3D spatial audio.

Power pre-regulator - Reduces power-input noise to ensure consistent performance.
Audio shielding - Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Integrated amplifier - Capable of driving high-impedance headphones, without rolling-off high or low frequencies.
Separate layer for left and right tracks - Ensures minimal crosstalk between audio paths.
De-pop circuit - Reduces start-up popping noise to all audio outputs.
Premium Japanese-made audio capacitors - Premium parts provide an immersive sound signature, with exceptional fidelity.


Solid Compatibility Validation

Pro WS WRX80E-SAGE SE WIFI has been extensively tested and validated under various environments and applications for compatibility and reliability.


Protect Your Graphics Card

SafeSlot is a PCIe® slot reengineered by ASUS to provide optimised attachment and shearing resistance. Manufactured in a single step using a new insert-moulding process, SafeSlot fortifies the slot with metal for enhanced strength and durability.


24/7 Reliability

Optimised for around-the-clock operations, Pro WS WRX80E-SAGE SE WIFI is tested under temperatures of up to 45° C and humidity of up to 80% in order to ensure it can thrive in different environments.

Features

AMD sWRX8 socket: Ready for AMD Ryzen™ Threadripper™ PRO Series Processors.
Ultrafast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel® X550-AT2 dual 10Gb Ethernet.
ASMB9-iKVM remote management: BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency.
Powerful performance: 16 power stages, multi-GPU support and R-DIMM memory support.
Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security.

Specifications
Core Specifications
Edition Pro WS WRX80E-SAGE SE WIFI
Form Factor E-ATX (12" x 13")
CPU Socket WRX8
Chipset WRX80
RAM Memory Support
Memory Type DDR4
Memory Channel Octa (8)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) RDIMM / UDIMM
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
Max. Memory Capacity 2048GB
Audio
Audio Realtek® ALC4080 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 4-Way SLi
AMD CrossFire Support N/A
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 3 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 7 x PCIe 4.0 x16
  • 8 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via M.2
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 6 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 6-pin PCIe (Power)
  • 2 x 8-pin (Power)
  • 1 x 8-pin PCIe (Power)
  • 1 x Battery cable header
  • 1 x BMC Switch
  • 1 x Chipset Fan Header
  • 1 x FlexKey Button
  • 1 x Front Panel Audio Header
  • 1 x IPMB Connector/Header
  • 2 x LAN activity LED header
  • 1 x LED connector
  • 3 x M.2
  • 1 x MicroSD Card Slot
  • 8 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SMBus header
  • 1 x START (Power On) button
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x TPM (SPI_TPM) header
  • 2 x U.2 Connector
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
  • 1 x VGA Port Header
  • 1 x VRM Heatsink Fan Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Dual Wired 10G LAN
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
  • 1 x Intel® X550 Dual Port (10GbE)

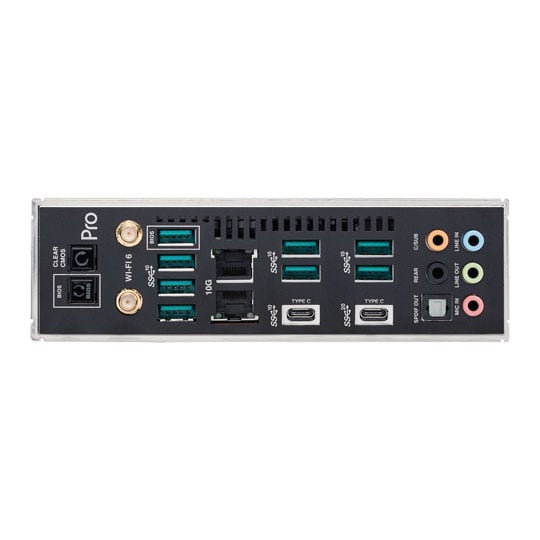

Rear I/O Connectors
  • 1 x BIOS FLASHBACK+ Button
  • 1 x Clear CMOS Button
  • 1 x RJ-45
  • 9 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 309.8 x 330.2 mm
Note
Additional Information
Scan Code LN114282
Model Number 90MB1590-M0EAY0
GTIN 4711081066262
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
