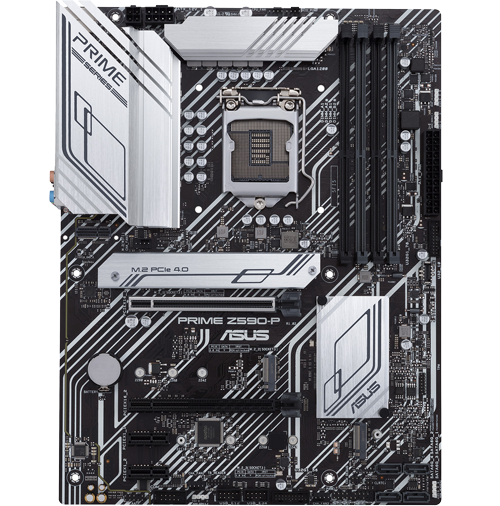

ASUS PRIME Intel Z590-P PCIe 4.0 ATX Motherboard

ASUS PRIME Z590-P, Intel Z590, S 1200, DDR4, PCIe 4.0, SATA3, 3x M.2, Realtek 2.5GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : ASUS PRIME Intel Z590-P PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS PRIME Intel Z590-P PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS PRIME Intel Z590-P PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS PRIME Intel Z590-P PCIe 4.0 ATX Motherboard
Scan code: LN114067 Manufacturer code: PRIME Z590-P
£179.99Item due on 04 November 2021
Due 4th Nov
From £16.16 / month (APR 14.9%)
Monthly Payment: £16.16
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £193.91
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ASUS PRIME Z590-P Intel 11th Generation ATX Motherboard

ASUS PRIME Z590-P ATX Motherboard

Get Yourself off to a Great Start Introducing the PRIME Z590-P motherboard from ASUS, which boasts boosted power delivery, an optimised cooling design to help you get the most out of the latest 11th and 10th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z590 series motherboards provide daily users and DIY PC builders a wealth of performance tuning options via intuitive software and hardware features. PRIME Z590-P has a futuristic aesthetic with an iridescent metallic nameplate and PCB cover, along with a black and white colour scheme on the PCB. Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximise productivity.

Please note: This motherboard is compatible with Intel® Socket LGA 1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors.

Intel Z590Chipset

LGA 1200CPU Socket

10th & 11th Gen IntelCompatible Processors

ATXForm Factor

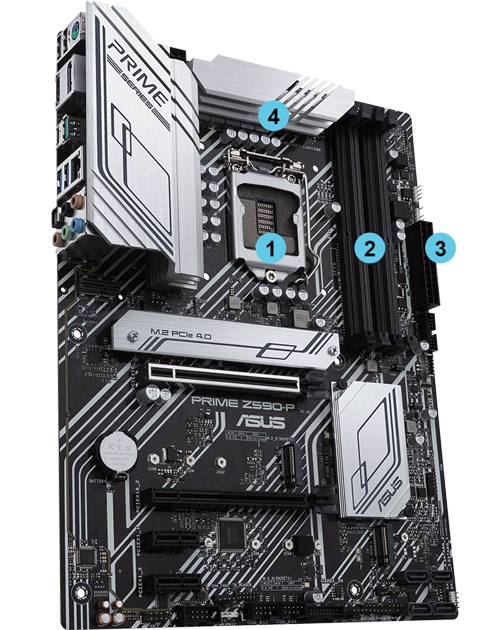

Component Breakdown of the ASUS Z590-P Motherboard

Breakdown

1. Supports 10th & 11th Gen Processors   |   2. 4x DIMM Slots / Max Memory 128GB DDR4 / OPTIMEM II
3. 24Pin ATX Hi-Density Connector   |   4. DIGI+ VRM – Digital power design with DrMOS
Expansion Slots: M.2 PCIe Gen4x4 / 1x M.2 PCIe Gen3x4 SATA3 / 1x M.2 PCIe Gen3x4 SATA3

CPU Performance BoostPrime Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. The TurboV Processing Unit (TPU) is an intelligent system-tuning utility that automatically fine-tunes voltages, monitors system stats and adjusts overclocking parameters for optimal performance.

Built to Take the Strain

cooling

cool to the core This PRIME Z590-P motherboard stays cool to the core and includes 3x chassis fan headers, 1x CPU Fan header and 1x AIO/Water pump fan header. With plenty of fan headers you'll know your components will keep cool. It also features multiple temperature sensors, AI Cooling and Fan Xpert 4 to provide an overall impressive cooling performance.

VRM Heatsink & Thermal Pads The two massive VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. A bundled fan holder provides additional cooling options.

Stack Cool 3+ 2-ounce copper PCB design can draw heat away from critical components to keep them at their optimal operating temperatures.

M.2 Heatsink Two M.2 heatsink takes care of the upper M.2 slot, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slots.

DIY Friendly with a Wealth of Connectivity

Connectivity

Stainless-Steel Back I/O This ASUS Z590 Intel® motherboard includes a total of 6 Rear USB ports and 9 Front USB ports, supporting high-end rigs loaded with peripherals, including USB3.2 Gen 2x2, a front-panel USB 3.2 Gen1 Type-C connectors and USB 3.2 Gen 2x2 can support data transmitting speeds up to 20Gbps. PRIME Z590-P supports PCIe 4.0, allowing users to run smoothly among PCIe 4.0 SSD storage devices and PCIe 4.0 graphics cards. With Thunderbolt 4 port can support up to 5 devices in a daisy-chain, and provide up to 100 W of power to fast-charge devices and it can support 8K resolution displays.

Outshine the Competition

RGB board

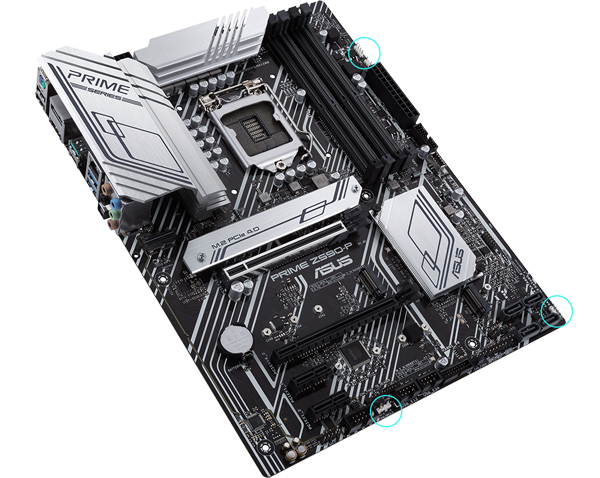

Unique Design Features for Pristine, Powerful Audio ASUS PRIME Z590-P is perfect for those seeking to create a sleek, futuristic-looking build and iridescent metallic nameplate and PCB cover. Prime Z590 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customise your system to create a uniquely personal look. With a wealth of 2x ARGB Gen2 and 2x Aura RGB headers, to outshine the competition. This DIY friendly motherboard comes with a durable I/O backing and ASUS M.2 Q-Latch, so you can install your M.2 SSD with one click and without a screw.

Specifications
Core Specifications
Edition PRIME Z590-P
Form Factor ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4700(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5100+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC898 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.0
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 3 x M.2
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Realtek (2.5GbE LAN)

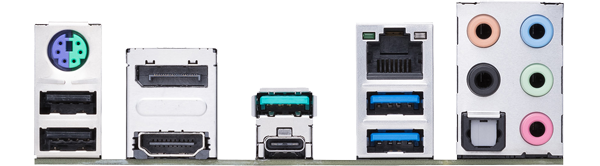

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 5.1 Audio I/O
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 234 mm
Note Intel® 11th Gen processors support PCIe 4.0 x16
Additional Information
Scan Code LN114067
Model Number PRIME Z590-P
GTIN 4711081101543
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
