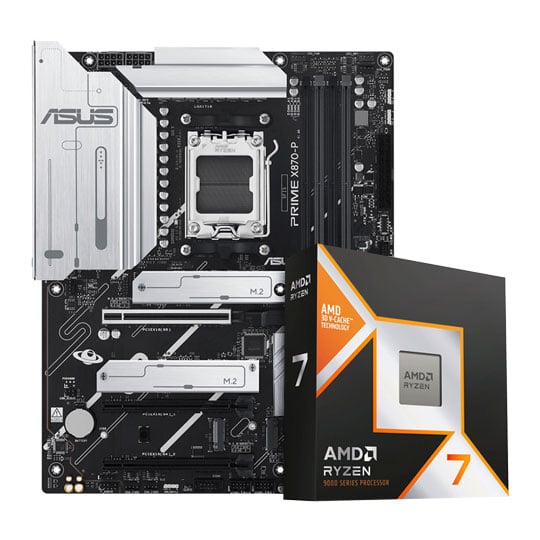

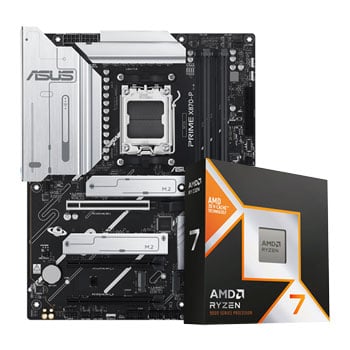

ASUS PRIME X870-P Motherboard + AMD Ryzen 7 9800X3D CPU Bundle

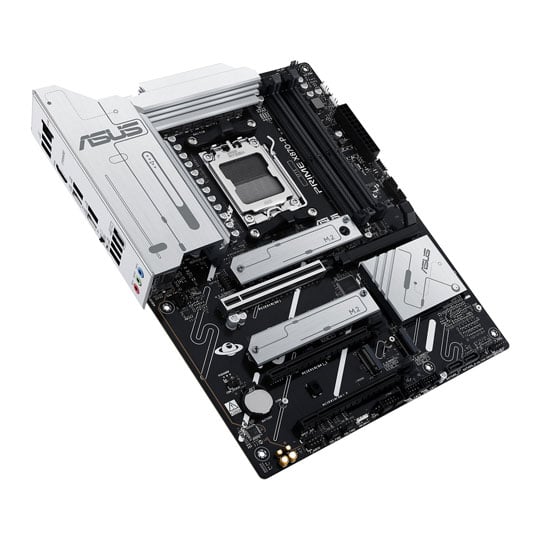

ASUS PRIME X870-P AM5 DDR5 PCIe 5.0 ATX Motherboard

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Robust Power Design

14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Eight-Layer PCB Design

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

ProCool Connectors

Proprietary connectors augment the motherboard's link to the power supply with 8 + 8 pin connectors that pass 12 volts of power directly to the processor. Each connector features solid pins that can handle more current than hollow-pin connectors.

Digi+ VRM Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.

Enhanced Memory & Storage Performance

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME X870-P maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.1

For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.

For those looking to surpass stock DDR5 speeds, the PRIME X870-P offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.

Four M.2 slots (up to 128 Gbps)

PRIME X870-P offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, two that support 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.

Cooler by Design

The PRIME X870-P motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

AIO Pump Header

A dedicated PWM/DC header supports self-contained water-cooling setups.

VRM Heatsinks and Thermal Pads

Two massive VRM heatsinks and essential thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Multiple Temperature Sources

Each header can dynamically reference four thermal sensors. Fan Xpert 4 lets you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

4-Pin PWM/DC Fan

Each onboard header supports auto-detection of PWM or DC fans.

M.2 Heatsinks

Two M.2 heatsinks take care of the M.2 slots, preventing throttling that can occur with M.2 storage during extended transfers. The heatsink installed on the M.2_2 slot is a flexible M.2 heatsink, which can be installed on the M.2_2 or M.2_3 slot.

Passive Chipset Heatsink

An aluminium passive chipset heatsink ensures optimal cooling and stable performance. It is more durable and longer-lasting than heatsinks with fans, which can be vulnerable to the build-up of dust and debris.

Smart Protection

A dedicated integrated circuit protects each fan header from overheating and excess current.

ASUS Fan Xpert 4

ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.

AI Cooling II

AI Cooling II balances the thermals and acoustics of any build with a single click. An exclusive ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

Cooler Compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.

Empowering Connections

The PRIME X870-P motherboard offers a versatile range of connectivity, including support for PCIe 5.0, Realtek 2.5Gb Ethernet, and an array of USB ports.

USB 40Gbps Type-C® Ports

Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.

PCIe 5.0 Slot

The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

PCIe Slot Q-Release

A physical lever unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new graphics card or other compatible device.

M.2 Q-Latch

The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.

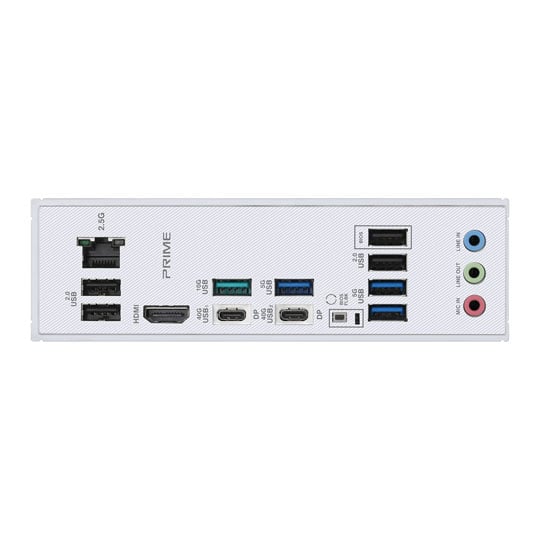

Pre-Mounted I/O Shield

Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

BIOS FlashBack™

BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button-no CPU or memory needed.

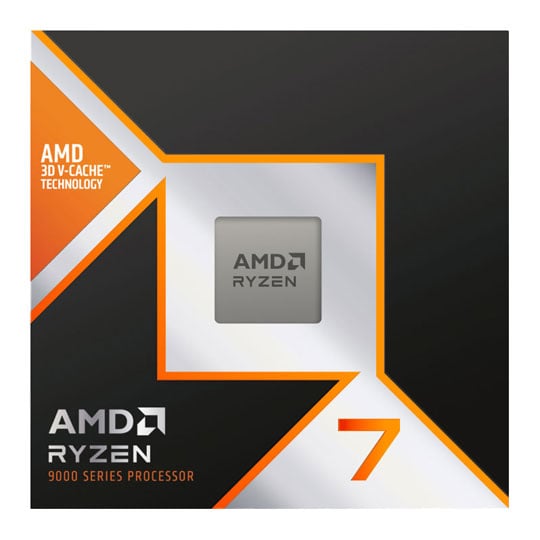

AMD Ryzen 7 9800X3D 8 Core AM5 CPU/Processor

Introducing the world’s most advanced gaming desktop processors, the AMD Ryzen™ 7 9800X3D series processor, now with 3D V-Cache™ technology to push your gaming to new frontiers. Boosted by AMD’s advanced “Zen 5” architecture and 4nm technology, you’ll feel unmatched power in every moment of high–performance gaming.

Push Past Limitations

AMD Ryzen™ 7 9800X3D Series processors are built with exclusive AMD 3D V-Cache™ technology, enabling the largest on-chip memory available on a consumer processor—up to 104MB. You’ll feel insane performance on any game with AMD EXPO™ memory, designed for increased frequencies to unlock higher and smoother frame rates.

Performance That Advances With You

AMD Ryzen™ 7 9800X3D Series processors are made with gamers in mind—they’re designed for the AM5 platform, enabled with the fastest DDR5 memory speeds, and equipped with PCIe® 5.0 for incredible bandwidth. This long-life platform evolves alongside the most demanding games and next-gen processors, so you can upgrade your game fast and easily.

Ai-Ready and Destined For Greatness

Features 4 Text (Features and Benefits) Unlock the potential of your PC with AI-ready AMD Ryzen™ processors. Bring incredible speed to every element of your rig—including productivity and content creation—with built-in AI acceleration and enhanced AI capabilities. Want to supercharge AI enhancements? Pair the Ryzen™ 9000 Series processors with Radeon™ RX 7000 Series graphics cards to experience the ultimate performance.

ASUS PRIME X870-P AM5 DDR5 PCIe 5.0 ATX Motherboard

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000, 8000 and 7000 series desktop processor.
Enhanced Power Solution: 14+2+1 80A DrMOS power stages, 8-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery.
Ultrafast Connectivity: PCIe® 5.0 x16 slot with full support for next-gen graphics cards, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, USB 40Gbps Type-C® ports, front USB 10Gbps Type-C and rear USB 10Gbps Type-A ports.
Comprehensive Cooling: Large VRM heatsink, Dual M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II.
DIY-Friendly Design: Pre-mounted I/O shield, Q-Antenna, PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack™, Flexible M.2 heatsink, BIOS Q-Dashboard, Q-LED Core.
Renowned Software: ASUS DriverHub, ASUS GlideX and intuitive UEFI BIOS dashboard.

AMD Ryzen 7 9800X3D 8 Core AM5 CPU/Processor

Socket: AM5.
Cores: 8.
Threads: 16.
Base Clock: 4.7GHz.
Max Boost Clock: 5.2GHz.
Cache: 104MB (w/ 3D V-Cache).
TDP: 120W.
• Zen5 Architecture.
• AMD EXPO™ Technology.
• Precision Boost Overdrive.
