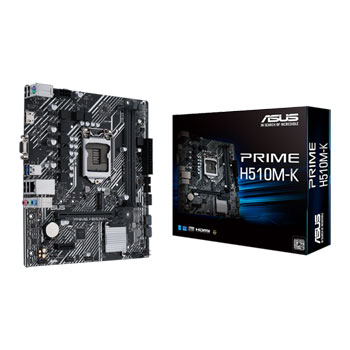

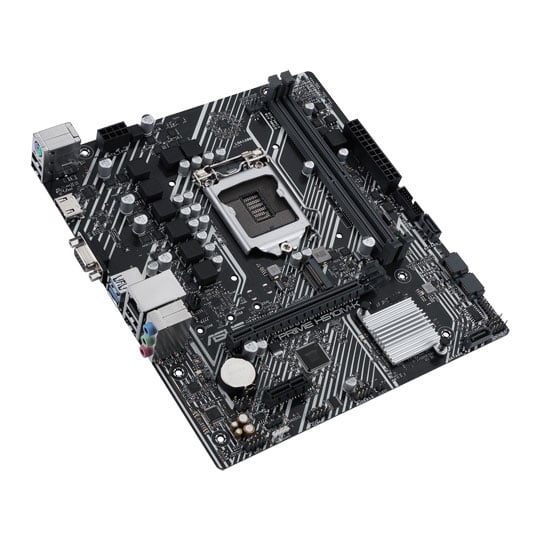

ASUS PRIME Intel H510M-K R2.0 MicroATX Motherboard

ASUS PRIME H510M-K R2.0, Intel H510, S 1200, DDR4, SATA3, PCIe 4.0, 1x M.2, GbE, USB 3.2 Gen1, mATX

Thumbnail 1 : ASUS PRIME Intel H510M-K R2.0 MicroATX Motherboard Thumbnail 2 : ASUS PRIME Intel H510M-K R2.0 MicroATX Motherboard Thumbnail 3 : ASUS PRIME Intel H510M-K R2.0 MicroATX Motherboard Thumbnail 4 : ASUS PRIME Intel H510M-K R2.0 MicroATX Motherboard
Scan code: LN135568 Manufacturer code: PRIME H510M-K R2.0
Order now and get it tomorrow, Wed 22nd May
£84.98
Get it Tomorrow, 22 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together
Product Overview

Prime H510M-K R2.0

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-K R2.0 provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.


Flexibility

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.


Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.


All-Around Energy Efficiency

With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.


Flexible Cooling Controls

Prime H510 series motherboards offer comprehensive control over system fans, via the included Fan Xpert software. Auto-Tuning mode intelligently configures all parameters with a single click.


Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.


UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.


Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.


Search Function

Quickly and easily find the option or setting you need.


ASUS User Profile

Port configuration settings between different BIOS versions or share them with friends.


Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.


Intuitive Graphical Fan Control

Fine-tune individual fan settings simply by dragging a curve with the mouse.


EZ XMP

Improve DRAM performance with one click.


Cooling

Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.


Cooler by Design

Prime H510 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.


Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.


4-Pin PWM/DC Fan

The onboard chassis fan header supports auto-detection of PWM or DC fan.


Performance

Prime H510 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.


Storage

M.2 Slot (up to 32 Gbps)

M.2 slot supports data-transfer speeds of up to 32 Gbps via x4 PCI Express® 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.


Connectivity

PCIe 4.0 Slot

ASUS H510 motherboards are designed specifically for 11th Generation Intel® Core™ CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.


USB 3.2 Gen 1 Type-A

Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.


Customization

Outstanding Audio

Combined Onboard Features Deliver Elevated Audio

Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.


Audio Shielding

Audio shielding ensures precision analogue/digital separation and greatly reduced multi-lateral interference.


Dedicated Audio PCB Layers

Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.


Premium Audio Capacitors

Provides warm, natural, and immersive sound with exceptional clarity and fidelity.


Personalization

Armoury Crate

Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal, plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.


DIY Friendly

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.


SafeSlot Core

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots.


Overvoltage Protection

World-Class Circuit-Protecting Power Design

An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.


Stainless-Steel Back I/O

3X Corrosion-Resistance for Greater Durability

Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.


1000+ Compatible Devices and Components

The Prime 500 series provide superior compatibility with thousands of components and our memory support list identifies memory compatibility, giving you more choices for worry-free PC-building experiences.


8000+ Validation Hours

Every ASUS motherboard is subjected to more than 8,000 hours of stringent tests, including burn-in, environmental, compatibility, software and safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.


Temperature And Humidity Tests

Ensures components withstand extreme conditions.


Thermal Measurement Tests

Ensures that the system remains cool and stable under the heaviest loads.


Insertion Tests

Every port and connector are put through repeated installation cycles.


Aging Tests

Up to 48-hour aging test ensures reliability.


Power-Consumption Tests

Checked for world-class energy efficiency.


Temperature And DC Margin Tests

Ensures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.


Thermal-Shock Tests

Ensures ability to survive temperature changes during transportation.


Non-Operation Shock Tests

Built to withstand jolts that may occur during shipping.

Features

Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors.
Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, 1 Gb Ethernet and USB 3.2 Gen.
Comprehensive cooling: PCH heatsink and Fan Xpert.
5X Protection III: Multiple hardware safeguards for all-round protection.

Specifications
Core Specifications
Edition Prime H510M-K R2.0
Form Factor MicroATX
CPU Socket 1200
Chipset Intel H470
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio
Graphics Support
Primary GPU Interface On-board
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x RGB Header
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 1 x System panel connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA)
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 226 x 203 mm
