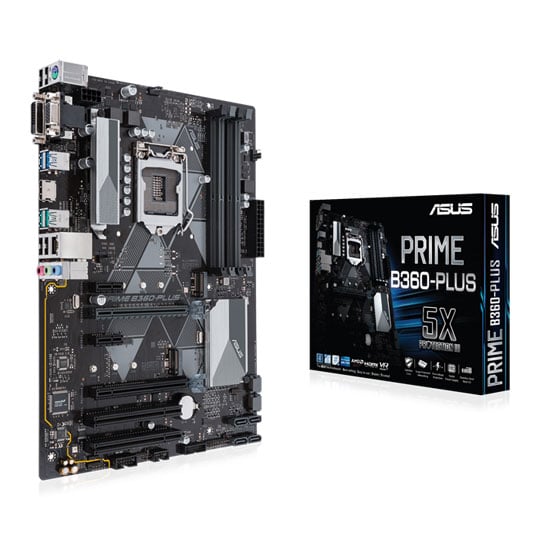

ASUS PRIME Intel B360-PLUS Coffee Lake ATX Motherboard
ASUS PRIME B360-PLUS, Intel B360, S 1151, DDR4, SATA3, Dual M.2, 2-Way CrossFire, Realtek GbE, USB 3.1 Gen2 A, ATX
|Instalment Rate:||14.9% p.a. (fixed)|
|Cost of purchase:||£104.99|
|Total inc. interest:||£113.10|
Purchase Rate: 19.9% p.a. (variable)
Representative: 19.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Flexible Fan Controls for Ultimate Cooling and Quietness
ASUS Prime B360 motherboards feature our best ever cooling capability, controllable from both Fan Xpert 2+ Core and the UEFI
Multiple Temperature Sensors for Optimal Cooling
Each header can be set to monitor and react to several thermal sensors, and via Fan Xpert 2+ you can even assign a sensor to monitor the temperature of supported ASUS graphics cards — for optimal cooling during GPU- or CPU-intensive workloads.
Improved DDR4 Stability
ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signalling by balancing trace lengths between memory slots. These enhancements allow the Prime 300 Series to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applications.
Intel Optane Memory Ready
Intel® Optane™ memory is a revolutionary high-speed storage technology — and it’s built right into Prime 300 series motherboards! Intel Optane accelerates your storage devices to reduce boot times and speed application launches, so everything just feels faster, smoother and more fun.
Speed up With On-Board M.2 — up To 32 Gbps
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.
Ultimate-Speed 10Gbps with USB 3.1 Gen 2 On-board
With backward-compatible USB 3.1 Gen 2 Type-A™, you‘ll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps — or twice as fast as USB 3.1 Gen 1!
Search Box (F9)
When you're ready for a deeper dive, Advanced mode enables full control over every aspect of the motherboard — with a built-in Search function to find the setting you need in the blink of an eye.
User can change some BIOS settings (such as memory speed).
• Create profile save settings (up to 8).
• User can freely read profile to know the setting of BIOS.
• After updating the BIOS, the new BIOS can still read the user profile of the previous BIOS.
Gear up! Win the battlefield
Beautiful LED-illuminated trace paths brighten your build and highlight noise-isolated, precision-shielded, interference-eliminated on-board audio like you've never before experienced!
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Dedicated Audio PCB Layers
Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
Premium Japanese Audio Capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
LED Illuminated Design
Brighten up your build with the gorgeous illuminated audio trace path and PCIe slot. Built-in LED lighting options illuminate your build in a variety of eye-catching styles.
Fortified PCIe with Solid Soldering
Safe Slot Core is the ASUS-exclusive enhanced PCIe slot, engineered to provide stronger retention and shearing resistance than a normal expansion slot — with a special strengthening hook to for a secure fit.
Stainless-Steel Back I/O
• 3X longer usage life compared to ordinary panels.
• We are the only MB maker using stainless steel shields!
LANGuard: Surge-Protected Networking
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.
Precise Digital Power Control and Long-Lasting Stability
• Rich tuning options, all-round balanced power phase loading.
• Dynamic adjustment, lower temperature can significantly enhance the overclocking stability.
World-Class Circuit-Protecting Power Design
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future – that's the ASUS way.
Complete and Public QVL
The superior compatibility of Prime 300 Series is evidenced by our extensive list of supported devices — which includes thousands of compatible components — and our Qualified Vendor List (QVL) that identifies memory compatibility. It all adds up to more choices for worry-free PC-building experiences.
Great Compatibility with ASUS Products
When you choose an ASUS Prime 300 series motherboard, it's likely you'll also go with ASUS for other components. ASUS designs products from the ground up so that graphics cards, sound cards and optical drives work flawlessly with your motherboard.
ASUS motherboards offer superb endurance. We verify this by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
• Superb Performance: Optimem, Intel Optane Memory Ready, 32Gb/s M.2 and Native USB 3.1 Gen 2.
• BIOS New Highlight: Search Box and User Profile.
• Gaming Audio: Dedicated Audio PCB Layer, Audio Shielding and Premium Japanese Audio Capacitors.
• Visual Beauty, Virtual Worlds: Aura Sync, LED-illuminated Design.
• Proven Quality: 5X PROTECTION III, 1000+ Compatible Devices, 8000+ Validation Hours.
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||64GB (4x16GB)|
|Audio||Realtek ALC887 7.1 HD Audio|
|Primary GPU Interface||PCIe 3.0 (x16)|
|NVIDIA SLI Support||Not Supported|
|AMD CrossFire Support||2-Way CrossFire|
|On-Board Graphics Connectors||
|SATA Support||SATA3 / M.2|
|RAID Support via||Not Supported|
|Storage Mode Support||
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Realtek RTL8111H (Gigabit LAN)|
|Rear I/O Connectors||
|Board Dimensions||305 x 221 mm|
|Model Number||PRIME B360-PLUS|
