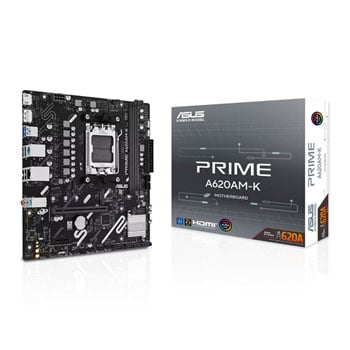

ASUS PRIME AMD A620AM-K DDR5 Micro-ATX Motherboard
ASUS PRIME A620AM-K, AMD A620A, S AM5, DDR5, SATA3, PCIe 4.0, M.2, GbE, USB 3.2 Gen1, mATX
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Asus Prime A620AM-K
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME A620AM-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Digital Power Design
PRIME A620AM-K features 6+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.
Stack Cool 3+: 2oz copper PCB design can draw heat away from critical components to keep the optimal operating temperatures.
Digi+ VRM control: The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.
Enhanced DDR5 Performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME A620AM-K maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.1
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
PCIe 4.0 M.2 Support
PRIME A620AM-K offers one M.2 slot that supports data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
Cooler by Design
The PRIME A620AM-K motherboard is engineered with onboard chipset heatsink and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ lets you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
4-Pin PWM/DC Fan: Each onboard header supports auto-detection of PWM or DC fans.
Smart Protection: A dedicated integrated circuit protects each fan header from overheating and excess current.
Passive Chipset Heatsink: An aluminium passive chipset heatsink ensures optimal cooling and stable performance. It is more durable and longer-lasting than heatsinks with fans, which can be vulnerable to the build-up of dust and debris.
ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
Empowering Connections
This motherboard offers a versatile range of connectivity, including support for PCIe 4.0 slot, 1Gb Ethernet and an arsenal of USB ports connection.
Realtek 1Gb Ethernet
Realtek 1Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
High Speed Transferring
Numerous USB ports support high-end rigs loaded with peripherals, including four rear USB 5Gbps Type-A ports and a front USB 5Gbps Type-A connector for transmission speeds of up to 5Gbps.
Personalization
The PRIME A620AM-K enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
Armoury Crate
Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
Aura Sync
Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.
Addressable RGB Gen 2 Headers
Three addressable RGB Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.
SafeSlot Core
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots.
Q-LED Core
The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.
Features
• Supports AMD Ryzen 7000/8000/9000 Series processors.
• Micro-ATX form factor for compact builds.
• Dual-channel DDR5 memory support.
• PCIe 4.0 slots for high-speed graphics and storage.
• Multiple USB 3.2 ports for fast data transfer.
• Comprehensive cooling solutions with fan headers.
• ASUS AI Noise Cancelation for clear audio.
• Enhanced power delivery with robust VRM design.
• User-friendly BIOS with EZ Mode for easy setup.
• Aura Sync RGB lighting for customizable aesthetics.
