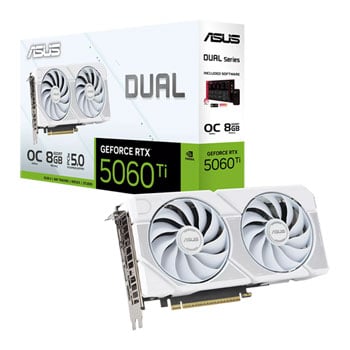

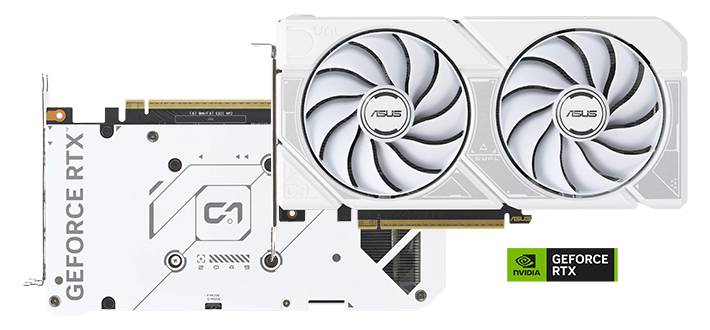

ASUS NVIDIA GeForce RTX 5060 Ti DUAL White OC 8GB Blackwell Graphics Card

ASUS Dual GeForce RTX™ 5060 Ti 8GB GDDR7 White OC Edition

The ASUS Dual GeForce RTX™ 5060 Ti 16GB GDDR7 White OC Edition is a powerful graphics card tailored for gamers and creators seeking high performance in a compact design. Equipped with the latest NVIDIA Blackwell architecture and a factory overclocked GPU running up to 2632 MHz, it features 8GB of ultra-fast GDDR7 memory at 28 Gbps with a 128-bit memory interface, enabling smooth 4K gaming and demanding creative workloads. This model is expertly cooled by dual Axial-tech fans and a vented backplate, delivering efficient thermal management in a compact 2.5-slot design ideal for small form-factor builds. It supports advanced AI functionalities with 767 AI TOPS, real-time ray tracing, DLSS 4, and multi-frame generation for true-to-life graphics and exceptional responsiveness. With versatile connectivity including HDMI 2.1b and three DisplayPort 2.1b outputs, it supports up to four displays and resolutions up to 7680 x 4320. The ASUS Dual RTX 5060 Ti also offers dual BIOS modes for performance or quiet operation, making it a smart upgrade for enthusiasts needing powerful and reliable visuals in a sleek white design.

Impressive Thermal Solution

2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

Axial-Tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.

Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

Vented Backplate
A vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

Outstanding Reliability

ASUS GPU Guard
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.

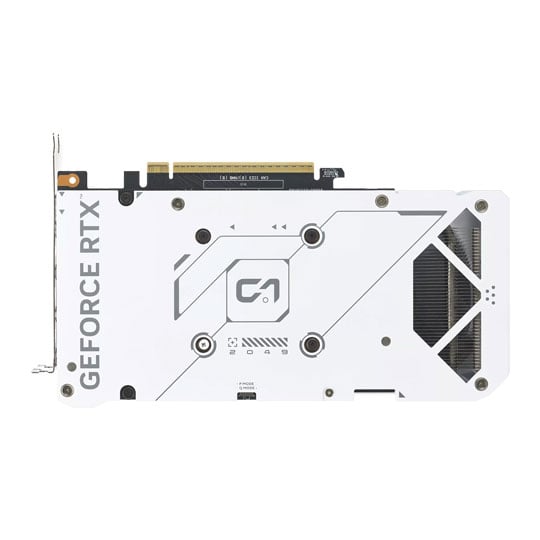

Protective Backplate
The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.

Stainless Steel Bracket
The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.

Dual BIOS

Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.

Auto-Extreme Technology

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact. The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.

GPU Tweak III

The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It lets you tweak critical parameters including GPU core clocks, memory frequency and voltage settings, with the option to monitor everything in real-time through a customisable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

• AI Performance: 759 AI TOPS
• OC mode: 2632 MHz (OC mode)/ 2602 MHz (Default mode)
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• SFF-Ready Enthusiast GeForce Card
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
• A 2.5-slot design maximises compatibility and cooling efficiency for superior performance in small chassis.
• 0dB technology lets you enjoy light gaming in relative silence.
• Dual BIOS lets you toggle between Quiet and Performance BIOS profiles.
• Dual ball fan bearings last up to twice as long as sleeve bearing designs.
