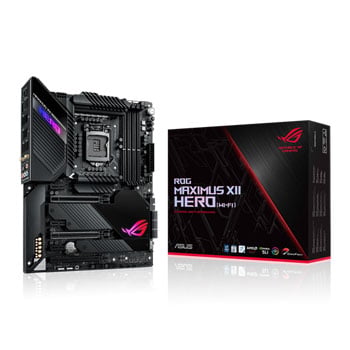

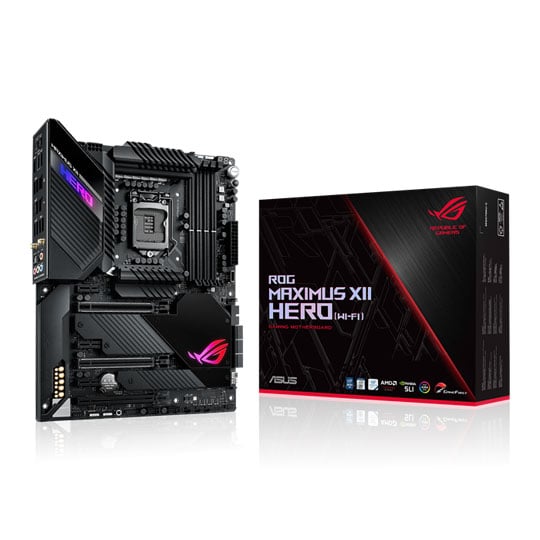

ASUS Intel Z490 ROG MAXIMUS XII HERO (Wi-Fi) ATX Motherboard
ASUS MAXIMUS XII HERO (Wi-Fi), Intel Z490, S 1200, DDR4, SATA3, 3x M.2, SLi/CrossFire, 5GbE/ax Wifi, USB 3.2 Gen2, ATX
|Instalment Rate:||14.9% p.a. (fixed)|
|Cost of purchase:||£399.98|
|Total inc. interest:||£430.88|
|Instalment Rate:||14.9% p.a. (fixed)|
|Cost of purchase:||£399.98|
|Total inc. interest:||£460.79|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 23rd Jun
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
ROG Maximus XII HERO (Wi-FI) 10th Generation Intel ATX Motherboard from ASUS
Get Yourself off to a Great Start ROG Maximus XII Hero is the perfect foundation to the Republic of Gamers. It's a gaming motherboard that packs substantial power, smart cooling and faster memory support under a stealthy skin. Loaded with renowned ROG features, from AI overclocking and AI cooling to attention-grabbing Aura Sync illumination, Maximus XII Hero is ready to perform and crafted for customisation.
Built to Take the Strain

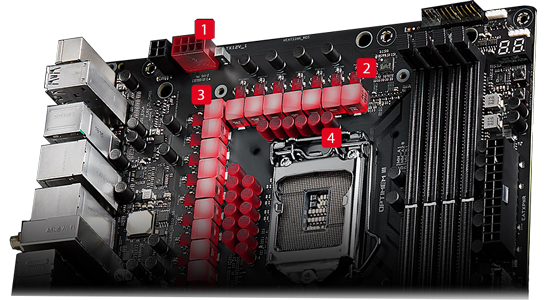

POWER DELIVERY ENHANCEMENTS Modern CPU architectures up the ante for motherboard power design by transitioning from deep power saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
1. 8-pin ProCool II power connector Ensures a snug and reliable connection to the EPS 12V power lines.
Power Stage The VRM has 16 power stages, each rated to handle 70 amps
Alloy ChokesEach Power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
4. 10K Black
Metallic Capacitors Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
Cooler by Design
COMPREHENSIVE COOLING ZONEEnjoy comprehensive control over fans and water pumps, via either Fan Expert 4 or our UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.

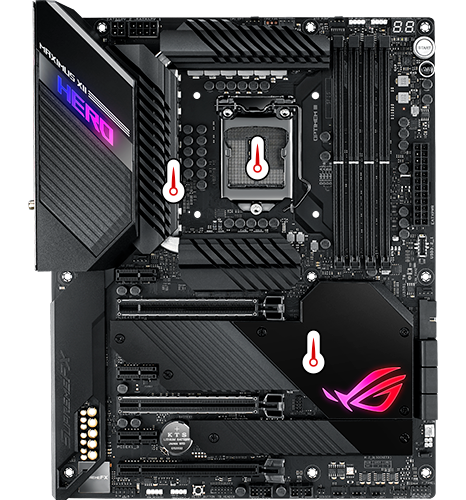

Multiple temperature sources Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.

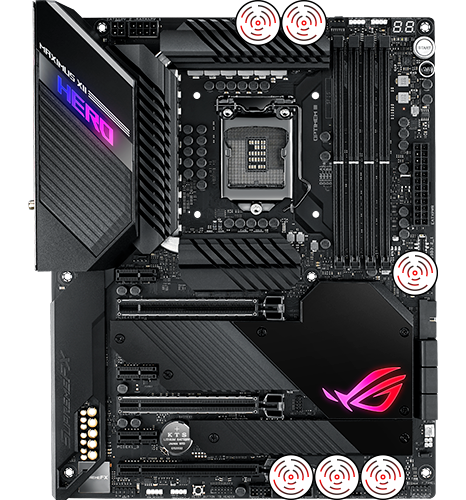

4-pin PWM/DC Fan Every onboard header supports auto-detection of PWM or DC fans.

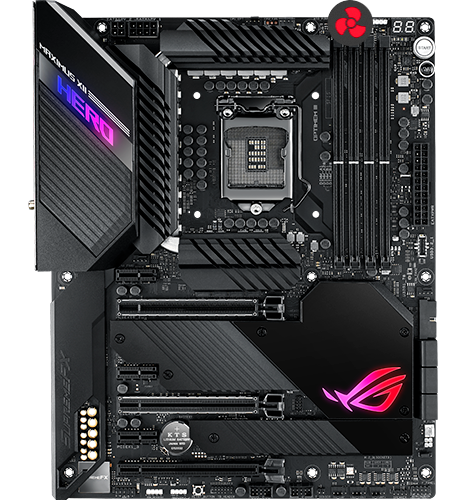

AIO Pump A dedicated PWM/DC header for self-contained water-cooling setups.

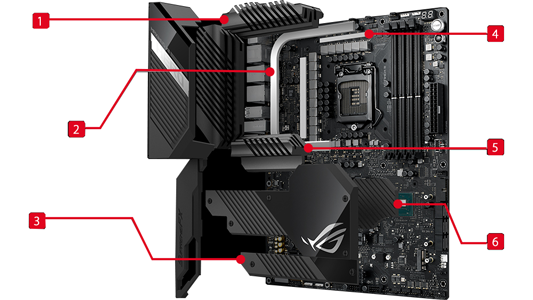

Unprecedented Thermal Dominance
Heatsink A VRM heatsink is placed on the MOSFETs and chokes, and the embedded heatpipe connects to the aluminum I/O cover.
2. Large Diameter Heatpipe The U-shaped design provides rapid and even heat transfer from the VRM to the extended VRM heatsink.
3. M.2 HeatsinkThe M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
thermal pad The high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
VRM heatsink The extended heatsink at the end of heatpipe increases thermal mass to offset the additional heat generated by high power consumption.
heatsink A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.
Push your Memory to Higher Frequencies
OPTIMEM IIIBoasting proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, ASUS OptiMem III is more compatible with 3600 MHz+ memory kits, allowing them to run at higher frequencies. You can opt to optimize memory for high frequency settings, or low latency settings. With higher capacity memory kits, OptiMem III enables you to run at maximum frequency, whereas other motherboards will trade off frequency for capacity. Stack Maximus XII Hero with your favorite modules and maximize throughput of the new 10th Generation Intel® Core™ Comet Lake-S processor for applications that demand massive bandwidth.

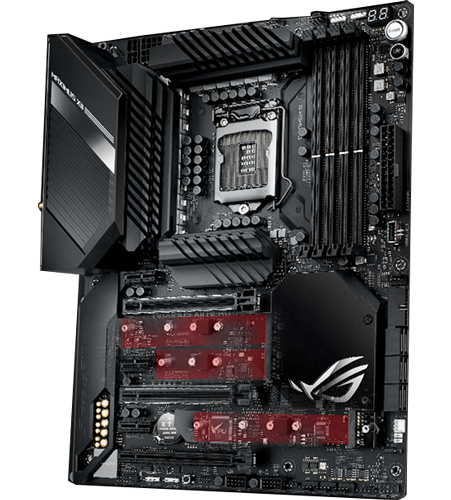

Support for up to Three M.2 Drives
Maximus compatibilityMaximus XI Hero comes equipped with three M.2 slots to let you take full advantage of Intel IRST and NVMe RAID for ultimate SSD storage speeds. The drives can be found under the aluminum heatsink covers. Integrated PCIe support ensures compatibility with the latest NVMe SSDs to enable ultrafast transfer speeds.

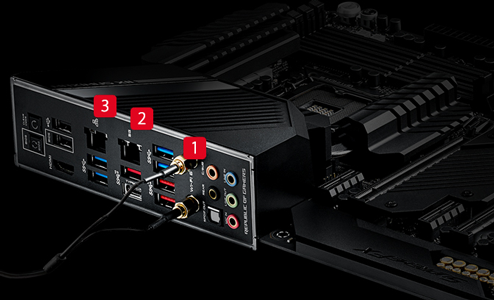

The Future of Home-Networking
1. Wi-Fi 6 (AX201) Onboard Wi-Fi 6 (802.11ax) supports ultrafast network speeds, improved capacity and better performance in dense Wi-Fi environments, providing exceptional online gaming experiences.
2. Marvell® 5Gbps Ethernet Designed to meet the demanding requirements of power users and content creators, 10 Gbps onboard Ethernet provides a new level of home networking. With up to 10X the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos, and backups and file transfers that are faster than ever before.
3. Intel® 1Gbps Ethernet The Hero features Intel® Gigabit Ethernet for faster, smoother gaming. Intel Ethernet controllers have a natural synergy with their processors and chipsets, reducing CPU overhead and offering exceptionally high TCP and UDP throughput, so there's more power for games and other tasks..
Overclocking Intelligence Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same on-board intelligence as AI Overclocking, but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the beginning.
Flexible Cooling Controls With the ROG MAXIMUS Series you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.
CPU Performance Boost Unleash your PC’s full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.
All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.
Optimization for gamers and professionals Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App every day. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level, meaning your ROG system is perfectly optimized for what you're doing.
Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.
World Renowned UEFI BIOS
Not just for veteransThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Mode An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
EZ(Easy) ModeEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
Livedash OLED Display
Display your own custom logoROG Maximus XII Extreme motherboards is equipped with LiveDash, a built-in 2” OLED panel that displays useful information and customisable graphics. During the power-on, self-test (POST) phase, OLED shows key progress stats in simple language, using traditional POST codes. Then, during normal operation, the panel shows a choice of CPU frequency, device temperatures, fan speeds or information from the Water-Cooling Zone. You're also able to customise the default OLED GIF, so it'll display your own image or animation.
Boost your Game with Ramcache III
LAUNCH YOUR APPS AT NECK BREAKING SPEEDS RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds. Smart mode automatically caches all your storage devices to maximize your system's resources using an intuitive interface which displays real time drive information. RamCache III also allows you to efficiently check the health status of assigned memory.
Outshine the Competition with ASUS Aura Sync
Your Motherboard, Your Way Gear up with ROG components, from graphics and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.

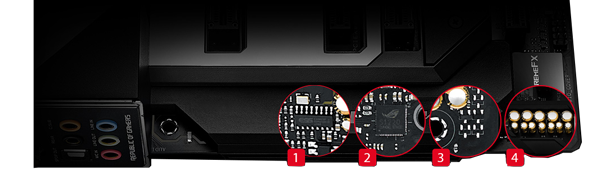

This is Advanced Audio
1.ESS® ES9023P creates a perfect balance for top-tier audio clarity capable of 112db DNR /-94dB THD+N for superior front-panel output
2.S1220 Codec 10 DAC channels provide simultaneous 7.1-channel playback, independent 2.0-channel, multiple-stream stereo to front-panel outputsUnique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs.
3. Switching MOSFETS Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs.
3. Nichicon® CAPS Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.
Discover the Features of the ROG Maximus z490 Hero Plus
|Edition||ROG MAXIMUS XII HERO (Wi-Fi)|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB|
|Audio||ROG SupremeFX 8-Ch. HD Audio S1220|
|Primary GPU Interface||PCIe 3.0 (x16)|
|NVIDIA SLI Support||2-Way SLi|
|AMD CrossFire Support||3-Way CrossFire|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||HDMI 1.4|
|SATA Support||SATA3 / M.2|
|RAID Support via||Intel® SATA RAID 0/1/10/5|
|Storage Mode Support||
|Network Interface Type||
|Rear I/O Connectors||
|Board Dimensions||305 x 244 mm|
|Model Number||ROG MAXIMUS XII HERO (WI-FI)|
