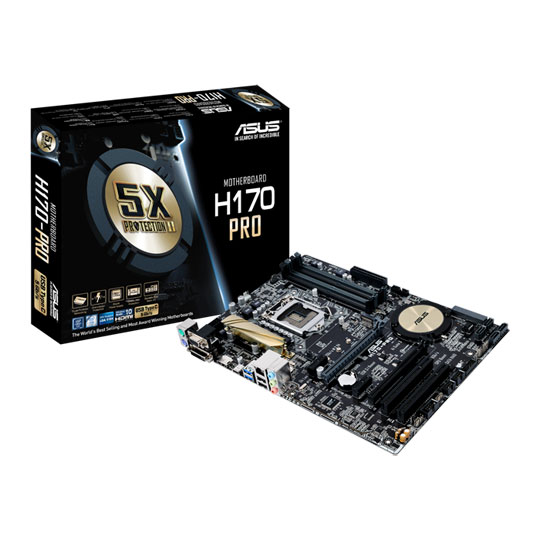

ASUS H170 PRO ATX Motherboard

Asus H170 PRO, Intel H170, S 1151, DDR4, SATAe, M.2 (PCIe/SATA), 2-Way CrossFire, Realtek LAN, USB C (5Gbps), ATX

ASUS
Scan code: LN66447 Manufacturer code: 90MB0NC0-M0EAY0 Request call
£64.93
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved Mid Range
Delivery options £5.48 By DPD On 30th Jun 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview ASUS 5X Protection II: Extremely Stable. Ground-breaking protection
5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability with all-round protection, including the voltage-regulator module (VRM), chipset, DRAM, networking, audio components and I/O ports. For you, that means exceptional protection and stability for your build - the result of decades of engineering experience from the world's leading motherboard brand.

• LANGuard: Surge-protected networking.
• Overvoltage Protection: Excellent circuit-protecting power design.
• DIGI+ VRM: Precision control for stable power.
• DRAM Overcurrent Protection: Short circuit damage prevention.
• Stainless-Steel Back I/O: 3X Corrosion-resistance for greater durability.

USB Type-C: One port, total convenience!
USB Type-C (USB-C) is the next-generation connectivity standard that delivers data-transfer speeds of 5Gbit/s - all from one slimline, reversible connector.

• 1/3 smaller than traditional USB Type-A.
• Reversible ease: Any-way-up design means USB connections are made first time, every time!

Speed up your system with M.2 (with PCIe 3.0 x4 Interface)
With four native PCI Express 3.0 bandwidth, M.2 supports up to 32Gbit/s data-transfer speeds. It is the perfect choice for an operating system drive, making your whole PC work that much faster. It supports Intel Rapid Storage Technology to ensure even faster access to data, refresh applications automatically and awake from sleep in just seconds!

Gaming Audio
Gear up! Win the battlefield.

Noise isolation
• Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
• Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

Audio enjoyment
• Premium Japanese-made audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity. Features ASUS 5X PROTECTION II
• ASUS LANGuard - Protects against LAN surges, lightning strikes and static-electricity discharges!
• ASUS Overvoltage Protection - World-class circuit-protecting power design.
• ASUS DIGI+ VRM - 4+2+1 Phase digital power design.
• ASUS DRAM Overcurrent Protection: Enhanced DRAM overcurrent protection.
• ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

Superb Performance
• M.2 onboard - The latest transfer technologies with up to 32Gb/s data transfer speeds
• SATA Express onboard - The latest transfer technologies with up to 16Gb/s datatransfer speeds
• ASUS Fan Xpert 3 - Featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
• ASUS EPU - EPU
• PC Cleaner - Fast and easy way to get rid of unnecessary junk files
• UEFI BIOS - Most advanced options with fast response time
• USB 3.0 Boost - featuring speedy USB 3.0 transmission

Gaming Scenario
• Audio Features - Audio that roars on the battlefield.
• Media Streamer:
- Pipe music or movies from your PC to a smart TV, your entertainment goes wherever you go!
- Media Streamer app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems.

ASUS Exclusive Features:
• ASUS Ai Charger.
• ASUS AI Suite 3.
• ASUS Disk Unlocker featuring 3TB + HDD support.

EZ DIY
• Push Notice - Monitor your PC status with smart devices in real time.
• UEFI BIOS EZ Mode:
- Featuring friendly graphics user interface.
- ASUS CrashFree BIOS 3.
- ASUS EZ Flash 3.
• Q-Design:
- ASUS Q-DIMM.
- ASUS Q-Slot.

Quiet Thermal Design:
• ASUS Fan Xpert 3
• Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink solution.

Realtek® ALC887 8-channel high definition audio CODEC:
• Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference.
• Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals.
• Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity.
• Supports jack-detection and front panel jack-retasking.
Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel H170
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 2133
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 2 x PCI
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATAe / SATA3
RAID Support via SATA
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x SATA Express (Compatible with 2x SATA III)
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 2 x System Fan header
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.0 Header
External Connectivity
Network Interface Type
Network Chip/Modules
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 2 x USB 2.0
  • 2 x USB 3.0
  • 1 x USB Type C (5Gb/s) with 3 Amp Power
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
