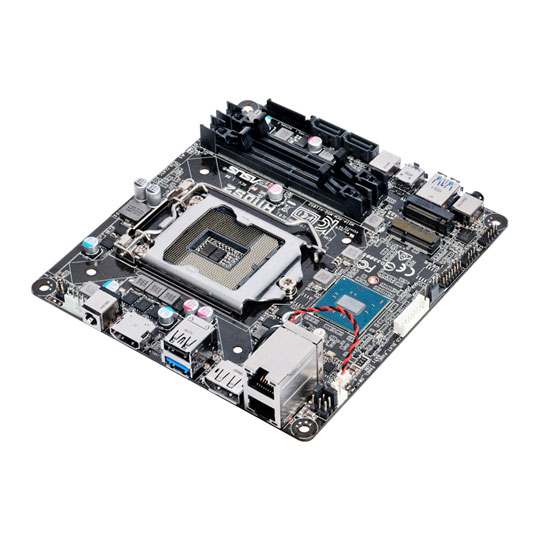

Asus Intel H110S2 Compact Skylake Mini STX Motherboard

Asus H110S2, Intel H110, S 1151, DDR4 SO-DIMM, SATA3, M.2 (PCIe/SATA), Dual Intel/Realtek GbE, USB 3.0 A+C, Mini STX

Asus
Scan code: LN73874 Manufacturer code: H110S2 Request call
£73.49Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview Full-featured mini-STX H110 with 5X Protection II for dependable stability, DDR4 support, UEFI BIOS with EZ Flash 3, and dual gigabit LAN.

Dependable Stability

5X Protection II
• Surge-Protected Networking
• Overvoltage Protection
• Stable Power Supply
• Overcurrent Protection
• Stainless-Steel Back I/O

Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.

LANGuard: Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Overvoltage Protection: World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DRAM Overcurrent Protection: Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.

DIGI+ VRM: Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.

Superb Performance

DDR4 Support: Make your memory go faster
With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.

Enjoy the DDR4 benefits with ASUS 100 series. (DDR4 vs DDR3)
• 2X Faster write/read speeds.
• 2X Larger capacity.
• 20% Lower power consumption.

Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

• EZ Flash 3: Update the latest BIOS via the internet, and from within the BIOS.
• S.M.A.R.T: Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're about to fail.
• Q-Fan Control: You can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes!
• My Favorites: Quickly find tuning options and add preferred tools to the list.

EZ Mode
• Intuitive Graphical Fan Control: Fine-tune individual fans simply by dragging a curve with the mouse.
• EZ XMP: Improve your DRAM performance with a click.
• SATA Information: View SATA port details for easy device recognition.
• Fast Clock Adjustment: Use mouse controls to change the time and date.

Advanced Mode
• Last Modified Log: Track last change and save preferred profiles onto a USB drive.
• SATA Port Renaming: Rename SATA ports for easy identification.

Ultrafast Transfer Speed

M.2
With x4 PCI Express 2.0 bandwidth, M.2 supports up to 20Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.

Optimised Cooling

Fan Xpert: Dedicated CPU and case fan controls
Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise — and with our 100 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization!

One-Stop Control

AI Suite 3: One-stop access to innovative ASUS features
ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

Intel CPU and chipset features

Intel® H110 Chipset
Intel® chipset is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to four USB 3.0 ports for up to ten times faster transfer than USB 2.0. Moreover, Intel® H110 chipset also supports iGPU functions, letting users enjoy the latest Intel integrated graphics performance.

Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors
This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, dual channel (2 DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.

Intel® SBB support
Intel® SBB (Small Business Basics) is an entry software solution that provides simple, out-of-the-box value for small business. Intel® SBB requires MEI drivers (AMT host software kit) be installed. Features • 5X Protection II: Advanced hardware safeguards for all-round protection.
• High-speed memory: DDR4 compatibility.
• Future-proof: USB 3.0 Type-C connector.
• Supports multiple graphics outputs: DisplayPort, HDMI, and LVDS.
• Fan Xpert: Dedicated CPU and case-fan controls.
Specifications
Specifications
Form Factor Mini STX
CPU Socket 1151
QPI Speed N/A
Chipset Intel H110
Memory Type DDR4 SO-DIMM
Memory Channel Dual
Memory Type (ECC) Non-ECC
Memory Type (R/U) Unbuffered
Memory Speed (Mhz) DDR4 - 2133
Maximum Memory Capacity 32GB (2x16GB)
Graphics Connectors
  • Display Port 1.2
  • HDMI
  • LVDS
Graphics Interface On-board
SLI Support Not Supported
Crossfire Support Not Supported
Audio Realtek ALC3236 4-Channel HD Audio
Network Interface Type Dual Wired Gigabit LAN (10/100/1000)
Network Interface Chip/Modules
  • 1 x Intel® I219V (Gigabit LAN)
  • 1 x Realtek RTL8111H (Gigabit LAN)
SATA M.2 6GB/s / SATA III 6Gb/s
RAID Support via Not Supported
Storage Mode Support
Water Cooled No
Expansion Slots
  • 1 x M.2, S1 (E), 2230, for WiFi Devices
  • 1 x M.2, S3 (M), 2280, PCIe/SATA
Internal I/O
  • 1 x 2-in-1 Combo Audio Jack
  • 1 x Backlight inverter voltage selection header
  • 1 x Clear CMOS jumper
  • 1 x CPU fan header
  • 1 x FPD brightness header
  • 1 x LVDS connector
  • 1 x Mic In
  • 1 x Panel off header
  • 1 x Panel voltage selection header
  • 2 x SATA III - 6Gb/s
  • 1 x SATA Power Connector
  • 1 x Serial (COM) Header
  • 1 x System Fan header
  • 1 x System panel connector
  • 1 x TPM Header (14-1 pin)
  • 1 x USB 3.0 Type-A
  • 1 x USB 3.0 Type-C
Back Panel
  • 2 x 10/100/1000 (LAN)
  • 1 x DC-In Connector
  • 1 x DisplayPort 1.2
  • 1 x HDMI
  • 1 x USB 2.0
  • 1 x USB 3.0
