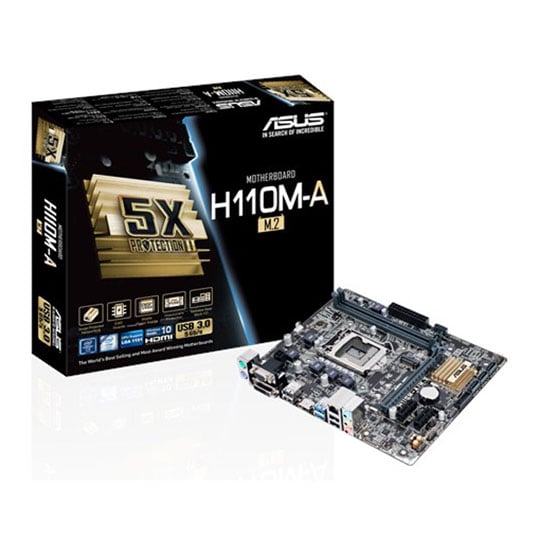

Asus Intel H110M-A Skylake M.2 Micro ATX Motherboard

Asus H110M-A/M.2, Intel H110, S 1151, DDR4, SATA3 6Gbps, M.2 (PCIe/SATA), Intel Gigabit LAN, USB 3.0, Micro ATX

Asus
Scan code: LN73766 Manufacturer code: H110M-A/M.2 Request call
Was: £62.99
£59.48
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Full-featured micro-ATX (mATX) H110 with 5X Protection II for dependable stability, DDR4 support and M.2 connectivity.

Dependable Stability

5X Protection II
• Surge-Protected Networking
• ESD Guards
• Stable Power Supply
• Overcurrent Protection
• Stainless-Steel Back I/O

Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.

LANGuard: Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

DRAM Overcurrent Protection: Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.

DIGI+ VRM: Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.

ESD Guards
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.

• LAN port: ESD TVS diode protection on the LAN circuit.
• USB connectors: TVS diodes for surface-mount and dual-inline packages.
• VGA connectors: Additional on-circuit ESD TVS diodes to protect D-Sub functionality.
• Keyboard and mouse connectors: Additional on-circuit ESD transient-voltage-suppression (TVS) diodes.

Superb Performance

DDR4 Support: Make your memory go faster
With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.

Enjoy the DDR4 benefits with ASUS 100 series. (DDR4 vs DDR3)
• 2X Faster write/read speeds.
• 2X Larger capacity.
• 20% Lower power consumption.

Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

• EZ Flash 3: Update the latest BIOS via the internet, and from within the BIOS.
• S.M.A.R.T: Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're about to fail.
• Q-Fan Control: You can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes!
• My Favorites: Quickly find tuning options and add preferred tools to the list.

EZ Mode
• Intuitive Graphical Fan Control: Fine-tune individual fans simply by dragging a curve with the mouse.
• EZ XMP: Improve your DRAM performance with a click.
• SATA Information: View SATA port details for easy device recognition.
• Fast Clock Adjustment: Use mouse controls to change the time and date.

Advanced Mode
• Last Modified Log: Track last change and save preferred profiles onto a USB drive.
• SATA Port Renaming: Rename SATA ports for easy identification.

Ultrafast Transfer Speed

M.2
With x4 PCI Express 2.0 bandwidth, M.2 supports up to 20 Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.

Instant front-panel USB 3.0 Experience
We've put USB 3.0 right where you need it — two super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!

Gaming Audio

Gear up! Win the battlefield
Beautiful LED-illuminated trace paths brighten your build and highlight noise-isolated, precision-shielded, interference-eliminated onboard audio like you've never before experienced!

• LED-illuminated design: Brighten up your build with the gorgeous illuminated audio trace path.
• Noise Isolation: Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference. Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
• Audio Enjoyment: Premium Japanese audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity.

Easy PC DIY

Q-Slot: Effortless PCI Express component removal
The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!

Q-DIMM: Easy memory removal
Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – couldn't be simpler!

Optimized Cooling

Fan Xpert: Dedicated CPU and case fan controls
Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise — and with our 100 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization!

One-Stop Control

AI Suite 3: One-stop access to innovative ASUS features
ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

• Push Notice
• Media Streamer
• Mobo Connect
• PC Cleaner

Intel CPU and chipset features

Intel® H110 Chipset
Intel® chipset is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to four USB 3.0 ports for up to ten times faster transfer than USB 2.0. Moreover, Intel® H110 chipset also supports iGPU functions, letting users enjoy the latest Intel integrated graphics performance.

Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors
This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, dual-channel (2-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance. Features • 5X Protection II – Advanced hardware safeguards for all-around protection.
• DDR4 memory compatibility.
• Lightning-fast M.2 support.
• Epic gaming audio with LED-illuminated shielding.
• Media-acclaimed UEFI BIOS with EZ Flash 3.
• Fan Xpert: Active Quiet & Cool.
Specifications
Specifications
Form Factor Micro ATX
CPU Socket 1151
QPI Speed N/A
Chipset Intel H110
Memory Type DDR4
Memory Channel Dual
Memory Type (ECC) Non-ECC
Memory Type (R/U) Unbuffered
Memory Speed (Mhz) DDR4 - 2133
Maximum Memory Capacity 32GB (2x16GB)
Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Graphics Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support Not Supported
Audio Realtek ALC887 7.1 HD Audio
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Interface Chip/Modules 1 x Intel® I219V (Gigabit LAN)
SATA M.2 6GB/s / SATA III 6Gb/s
RAID Support via Not Supported
Storage Mode Support Intel Rapid Storage Technology Support
Water Cooled No
Expansion Slots
  • 1 x M.2, S3 (M), 2242/2260/2280, PCIe/SATA
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
Internal I/O
  • 1 x 24pin (V)
  • 1 x 4pin (V)
  • 1 x AAFP Connector
  • 1 x Chassis Fan Connector (4-pin)
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector (4-pin)
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 1 x System panel connector
  • 1 x USB 2.0 Header
  • 1 x USB 3.0 Header
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 4 x USB 2.0
  • 2 x USB 3.0
