ASUS NVIDIA GeForce GTX 1660 SUPER MINI OC 6GB Turing Graphics Card
ASUS GeForce GTX 1660 SUPER MINI OC 6GB GDDR6 Ray-Tracing Graphics Card, 1408 Core, 1530MHz GPU, 1860MHz Boost
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

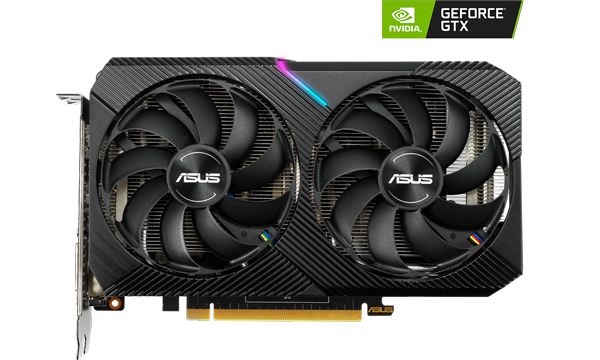

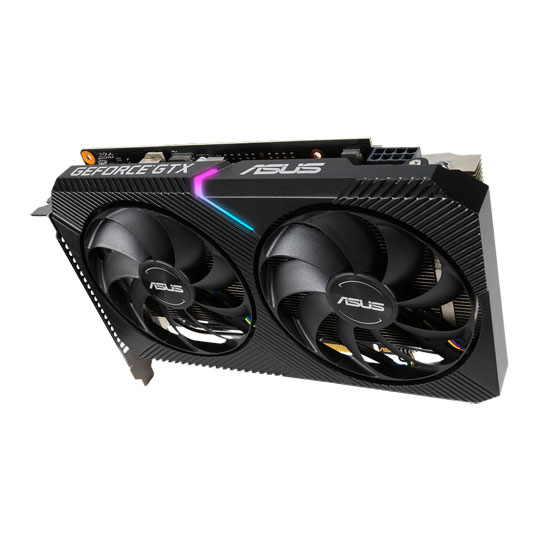

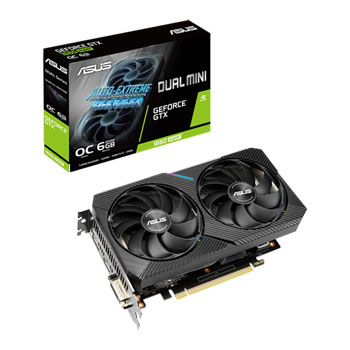

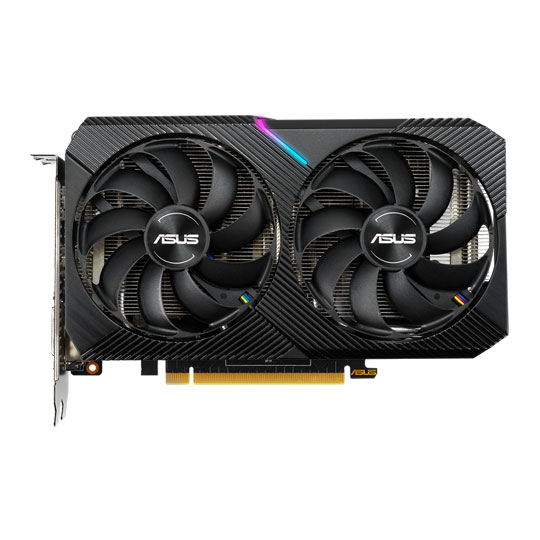

ASUS Dual GeForce GTX 1660 SUPER MINI OC Edition Graphics Card
Time to gear up and get SUPER The new Dual GeForce GTX 1660 SUPER MINI Graphics Card is specifically designed for the new Intel® NUC 9 Extreme Kit and Intel® NUC 9 Pro Kit, bringing the thermal performance of larger cards to the evolving small-form-factor market. Built with the breakthrough graphics performance of the award-winning NVIDIA Turing™ architecture to supercharge your favourite games. With the OC Edition the Boost Clock is 1860 MHz (OC Mode) / 1830 MHz (Gaming Mode), gamers also get to utilize ultra-fast GDDR6 memory, with over 50% more memory bandwidth for high-speed gaming. Certified for IP5X dust resistance and fantastic cooling features such as the Axial-tech fan design, a custom 2-slot thermal solution, and Auto-Extreme Technology – the MINI is an ideal choice for those looking for the best experience with the Intel NUC 9 Extreme Kit, Intel NUC 9 Pro Kit, and other small chassis. This graphics card supports NVIDIA G-Sync display technology for a super-smooth variable refresh rate experience.

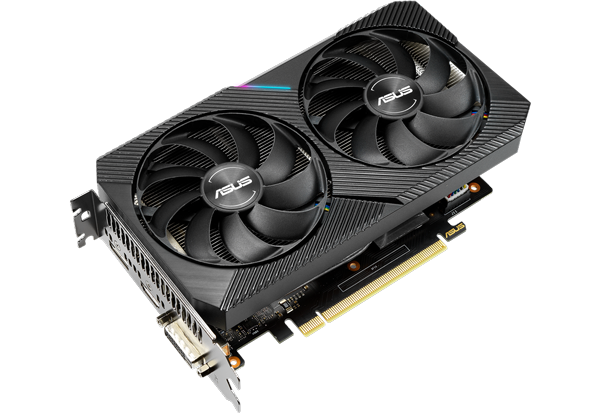

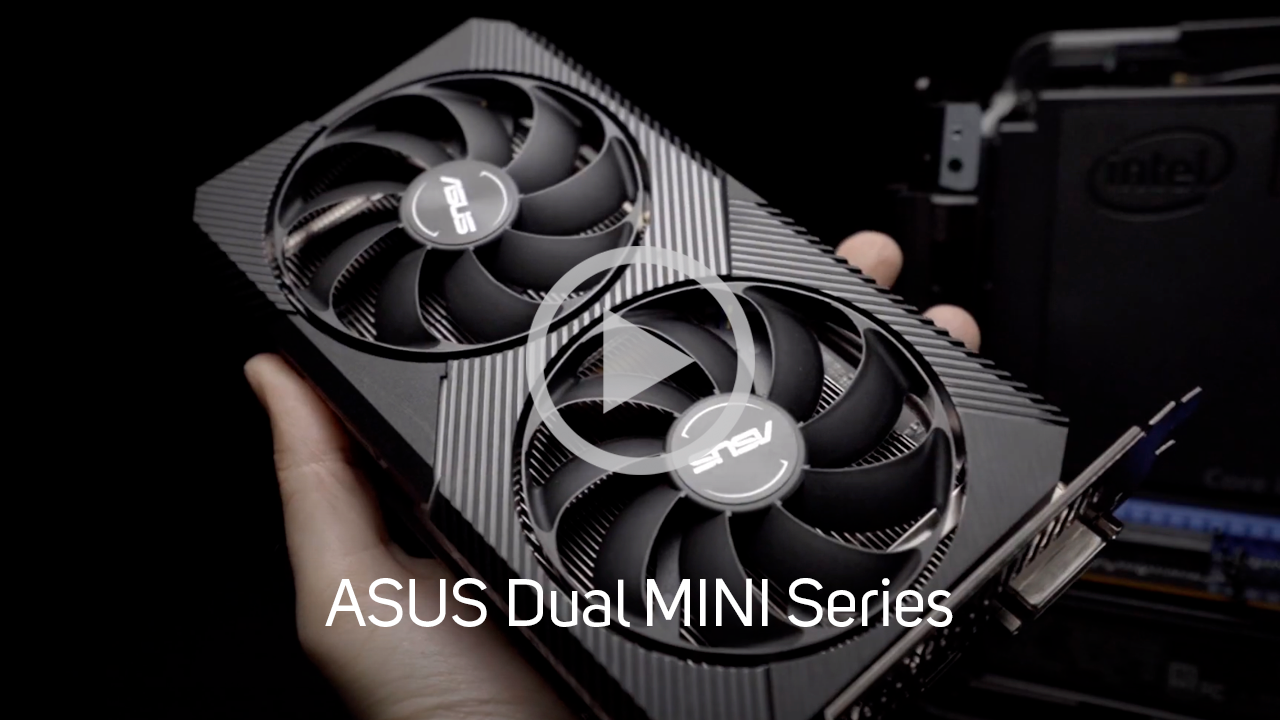

Dual MINI Series are the Coolest GPUs for the Intel NUC 9
A MINI Cooling Solution that fits into a 2-Slot Design
2x Fans. 2x Fun. The ASUS Dual GTX 1660 SUPER MINI OC graphics card is newly designed for the latest generation of top-end ROG graphics cards, these fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure. Featuring a 2-slot design less than 20cm in length, making it compatible with the Intel® NUC 9 Extreme Kit, Intel® NUC 9 Pro Kit, and other small-form-factor chassis without sacrificing thermal performance. A redesigned shroud, heatsink, and heatpipe layout allows two Axial-tech fans to take advantage of the mesh side panel of the Intel® NUC 9 Extreme Kit and Intel® NUC 9 Pro Kit, while maintaining space for cable management and airflow to the CPU cooler.
No Need to Deep Clean with IP5X Dust Resistance
Dust is enemy number one for fans It's easy to clean the blades, but taking the fan apart to remove dust that has made its way inside is not a simple task. IP5X certification keeps nasty particulates out of the housing, so you'll never need that deep clean.
Perfect Subtle Lighting to Add Style to your Build
rigorous performance and reliability standards guaranteed The Dual GTX 1660 SUPER MINI OC graphics card features a strip of illumination on the shroud to add further style to your setup. n advanced onboard controller brings fans to a standstill when the GPU core temperature is below 55 Celsius, letting you enjoy light gaming in relative silence. As temps rise past the threshold, the fans automatically start up again. Plus, ASUS have tested this GPU through a 144-Hour validation program. Performance and stress tests are run with the latest chart-topping titles like Fortnite, League of Legends, Overwatch, and PlayerUnknown's Battlegrounds. ASUS also carry out reliability trials that include a series of 3DMark benchmarking runs to ensure the card performs well when pushed to the limits.
Precision Automated Manufacturing
Auto-Extreme TechnologyAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
GPU Tweak II Software
Monitor, Tweak and Tune ASUS utility takes graphics card tuning to the next level, as it allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
NVIDIA Turing GPU Architecture
Up to 6 times faster performance The GeForce GTX 1650 GPUs are powered by the Turing Architecture, this gives you 6x faster performance over previous-generation graphics cards. Turing uses a new 12nm manufacturing process and brings more GPU performance and efficiency than the previous generation architecture.
GeForce GTX 1660 Features
GeForce ExperienceThe essential companion to your GeForce graphics card. Capture and share videos, screenshots, and livestreams. Keep your drivers up to date and optimize your games.
Game Ready DriversGet the highest levels of performance, and the smoothest experience possible, from the moment you start playing.
NVIDIA ShadowplayRecord and share high-quality gameplay videos, screenshots, and livestreams with your friends.
NVIDIA AnselTurn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.
DirectX 12Power new visual effects and rendering techniques for more lifelike gaming.
NVIDIA G-Sync & HDRGet smooth, tear-free gameplay, plus HDR, and more. This is the ultimate gaming display and the go-to equipment for enthusiasts.
NVIDIA STUDIOStudio combines NVIDIA GeForce GPUs with exclusive NVIDIA Studio Drivers designed to supercharge creative applications.
STREAM LIKE A PROGet amazing performance and image quality while livestreaming with optimisation for OBS.
NVIDIA GeForce Graphics Card Specifications
|GeForce RTX 30-Series, 20-Series, GTX 16-Series & 10-Series Card Specifications|
|Model||RTX 3090||RTX 3080||RTX 3070||RTX 3060 Ti||TITAN RTX||RTX 2080 Ti||RTX 2080 Super||RTX 2080||RTX 2070 Super||RTX 2070||RTX 2060 Super||RTX 2060||GTX 1080 Ti||GTX 1080||GTX 1070 Ti||GTX 1070||GTX 1660 Ti||GTX 1660 Super||GTX 1660||GTX 1650 Super||GTX 1650||GTX 1060 6GB||GTX 1060 3GB||GTX 1050 Ti||GTX 1050|
|Reference Base Clock||1,400MHz||1,440MHz||1,500MHz||1,410MHz||1,350 MHz||1,350 MHz||1,650 MHz||1,515 MHz||1,605 MHz||1,410 MHz||1,470 MHz||1,365 MHz||1,480 MHz||1,607 MHz||1,607 MHz||1,506 MHz||1,500 MHz||1,530 MHz||1,530 MHz||1,530 MHz||1,485 MHz||1,506 MHz||1,506 MHz||1,290 MHz||1,354 MHz|
|Reference Boost Clock||1,700 MHz||1,710 MHz||1,730 MHz||1,665MHz||1,770 MHz||1,545 MHz||1,815 MHz||1,710 MHz||1,770 MHz||1,710 MHz||1,650 MHz||1,680 MHz||1,582 MHz||1,733 MHz||1,683 MHz||1,683 MHz||1,770 MHz||1,785 MHz||1,785 MHz||1,725 MHz||1,665 MHz||1,708 MHz||1,708 MHz||1,392 MHz||1,455 MHz|
|Memory||24GB GDDR6X||10GB GDDR6X||8GB GDDR6||8GB GDDR6||24GB GDDR6||11GB GDDR6||8GB GDDR6||8GB GDDR6||8GB GDDR6||8GB GDDR6||8GB GDDR6||6GB GDDR6||11GB GDDR5X||8GB GDDR5X||8GB GDDR5||8GB GDDR5||6GB GDDR6||6GB GDDR6||6GB GDDR5||4GB GDDR6||4GB GDDR5||6GB GDDR5||3GB GDDR5||4GB GDDR5||2GB GDDR5|
|Edition||ASUS Dual GeForce® GTX 1660 SUPER MINI OC|
|Cores & Clocks|
|Core Clock||1530 MHz|
|Boost Clock||1860 MHz|
|Video Memory (VRAM)|
|Memory Clock||14000 MHz|
|Memory Bus||192 Bit|
|Cooling Solution||Dual Fan (2)|
|Cooler Design||ASUS Dual Fan|

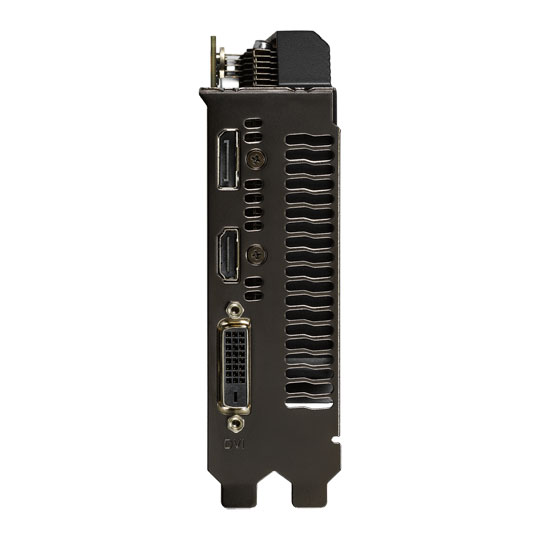

|I/O & Connectivity|
|Interface||PCIe 3.0 (x16)|
|GeForce VR Ready||Yes|
|Multi-Way Graphics Support||Not Supported|
|Microsoft DirectX Support|
|Max. Concurrent Displays||3 Displays|
|Maximum Digital Resolution||7680x4320 (8K UHD)|
|Maximum Analog (VGA) Resolution|
|Real-Time Ray Tracing||No|
|NVIDIA RT Cores|
|NVIDIA Tensor Cores|
|Power & Thermals|
|Graphics Card Power Connectors||1 x 8-pin PCIe|
|Graphics Card TDP/Power|
|Minimum Recommended PSU||450 W|
|Maximum GPU Temperature|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Dimensions||197 x 121 x 39 mm|
