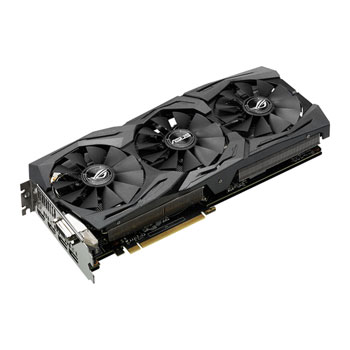

ASUS NVIDIA GeForce GTX 1060 6GB ROG STRIX GAMING OC
Asus GeForce GTX 1060 ROG STRIX OC GAMING 6GB GDDR5 VR Ready Graphics Card, 1280 Core, 1620 MHz GPU, 1847 MHz Boost
ASUS - GeForce GTX 1060 - GPU - Graphics Card - Strix GAMING OC
ASUS Strix GAMING OC GeForce GTX 1060 GPU
The next stage up in ASUS 1060 graphics cards is this, the Strix Gaming OC. This gaming card is aimed toward those that want all they can get from their GPU, and with higher base speeds (compared to the Strix 1060) that can be overclocked, the 1060 OC does just that. The embedded power will create immaculate gaming experiences on even the latest next-gen games. Plus, thanks to the featured tech and clever design you can be sure this GTX 1060 will run smoothly even on those extended gaming sessions.
The GeForce GTX 1060 graphics card is loaded with innovative new gaming technologies that make it the perfect choice for the latest high-definition games. Powered by NVIDIA Pascal™—the most advanced GPU architecture ever created—the GeForce GTX 1060 delivers brilliant performance that opens the door to virtual reality and beyond. #GameReady
ASUS STRIX 1060 BREAKDOWN
STRIX GPU COOLING SYSTEM
30% Cooler & 3x Quieter Performance

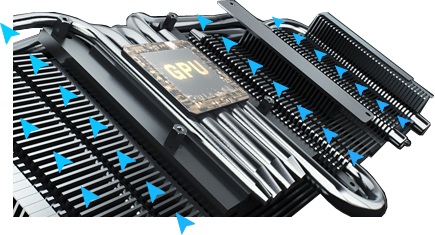

DirectCU III GPU Cooling Tech
The GTX 1060 will achieve up to 30% extra cooling performance when gaming thanks to the exclusive DirectCU III cooling technology. This tech featured on the GTX 1060 direct-GPU contact heat-pipes that will transport more heat away from the GPU and out-perform the reference designs.
*Image for illustration only. Actual design may vary
ENHANCED GTX 1060 COOLING
Max Air Flow 105% More Air Pressure

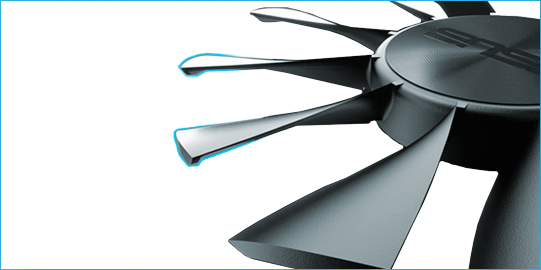

Triple Wing-Blade GPU Cooling
DirectCU III features triple 0dB fans engineered with a patented wing-blade design that delivers maximum air flow and improved 105% static pressure over the heat sink, while operating at 3X quieter volumes than reference cards. The 0dB fans also let you enjoy games in complete silence and make DirectCU III the coolest and quietest graphics card in the market.

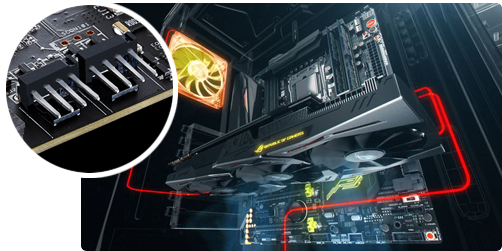

FANCONNECT CONTROLLED GPU COOLING
GPU Controlled Fan Headers
When gaming it is commonly found that GPU temperatures are higher than that of the CPU, due to chassis fans usually referencing CPU temps only - resulting in inefficient cooling. The Strix 1060 graphics card features two 4-pin GPU controlled headers that can be connected to system fans for targeted cooling on your GTX 1060.
STRIX 1060 EMBEDDED LED
ASUS 1060 Aura RGB Lighting
ASUS Strix 1060 features Aura RGB Lighting on the shroud, these Strix graphics cards are capable of displaying millions of colors in six different effects. Experience a personalized gaming system with GTX 1060.

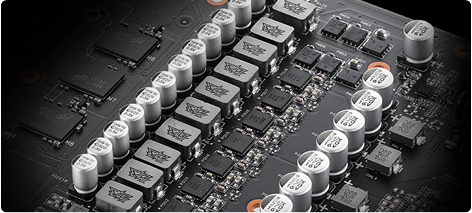

GPU DURABILITY & EFFICIENCY
A More Reliable GTX 1060
This 1060 series, like various other ASUS boards, has had premium alloy components intergrated into their graphics card designs reinforcing the overall reliability. Super Alloy Power II components greatly enhance the Strix 1060 efficiency, reduce power loss and achieve thermal levels that are approximately 50% cooler than previous designs.

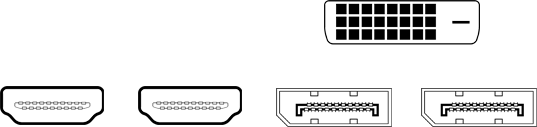

VR FRIENDLY GTX 1060 HDMI PORTS
Enjoy Immersive Virtual Reality Experience
ROG Strix graphics cards have two HDMI ports for connecting a VR device and three display at the same time, so you can enjoy immersive virtual reality experiences anytime without having to swap cables.
GEFORCE GTX VR READY
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.
Immersive VR requires seven times the graphics processing power of traditional 3D apps and games. NVIDIA's unique set of features - such as multi-res shading - mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.
|Chipset||GeForce GTX 1060|
|Edition||ROG STRIX OC GAMING|
|Manufacturing process||16 nm|
|Core Clock||1620 (1645 in OC Mode) MHz|
|Boost Clock||1847 (1873 in OC Mode) MHz|
|Memory Clock||8208 MHz|
|Memory Bus||192 Bit|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||DirectCU III with RGB LED|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||Not Supported|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||1 x 8-pin PCIe|
|Minimum Recommended PSU|
|Maximum GPU Temperature|
|Dimensions||134 x 40 x 298 mm|
