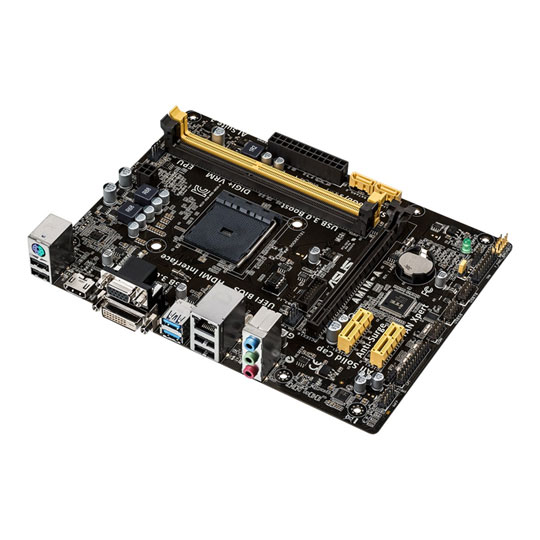

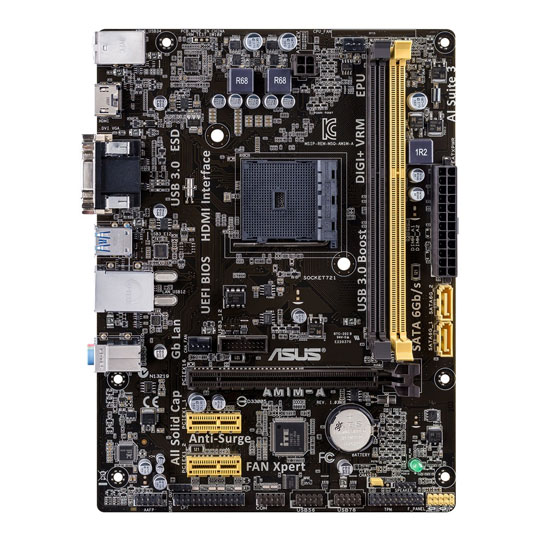

Asus AM1M-A A Micro-ATX Motherboard with USB 3.0/HDMI

Asus AM1M-A, AMD, AM1, DDR3, SATA III 6Gb/s, PCIe 3.0 x16 (x4), HDMI/DVI-D/VGA, GbE, 2x USB 3.0, mATX

ASUS
Scan code: LN57100 Manufacturer code: AM1M-A Request call
£33.98
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved Entry Level
Delivery options £5.48 By DPD On 27th Jun 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview AMD SoC Athlon and Sempron Series APUs
This powerful and innovative motherboard supports both dual- and quad-core AMD Athlon and Sempron SoC (system-on-a-chip) APUs integrating Radeon™ HD graphics and support for HD video playback. This revolutionary APU (Accelerated Processing Unit) combines high processing power, advanced Microsoft® DirectX 11.1 graphics, and Fusion controller hubs (FCHs) in one small, efficient package. This SoC APU features up to single-channel DDR3 1600/1333 memory, SATA 6Gbit/s and USB 3.0 natively. AMD Athlon/Sempron APUs are the first multi-core x86 SoC with AM1 Series socket solution for entry-level desktops, improving performance by over 50 percent compared to the previous (‘Brazos 2.0’) generation of AMD APUs.

ASUS 5X Protection
All-round protection provides the best quality, reliability, and durability
ASUS motherboards guard your PC with 5X Protection. We use quality components like DIGI+ VRM digital power design for precise APU power on demand, ESD units tested to strict standards that eliminate electrostatic interference, and resettable fuses around DRAM slots to prevent overcurrent and short-circuit damage. We also use corrosion-resistant back I/O shields, all examples of ASUS providing the best possible reliability and durability.

New UEFI BIOS – friendlier and more intuitive
Exclusive EZ Mode adds useful info to become even easier
Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, D.O.C.P profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.
Features • ASUS 5X PROTECTION - All-round protection provides the best quality, reliability, and durability
• New UEFI BIOS – Friendlier, easier, and more intuitive with helpful info added
• USB 3.0 Boost (UASP Support) - 170% faster transfer speeds than traditional USB 3.0
• Ai Suite 3 - One-stop access to innovative ASUS features
Specifications
Core Specifications
Form Factor MicroATX
CPU Socket AM1
Chipset AMD AM1
RAM Memory Support
Memory Type DDR3
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR3 - 1066
  • DDR3 - 1333
Max. Memory Capacity 32GB
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 2.0 (x16)
SLI Support N/A
Crossfire Support N/A
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 1 x Parallel Port (LPT) Header
  • 2 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 1 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
External Connectivity
Network Interface Type
Network Chip/Modules

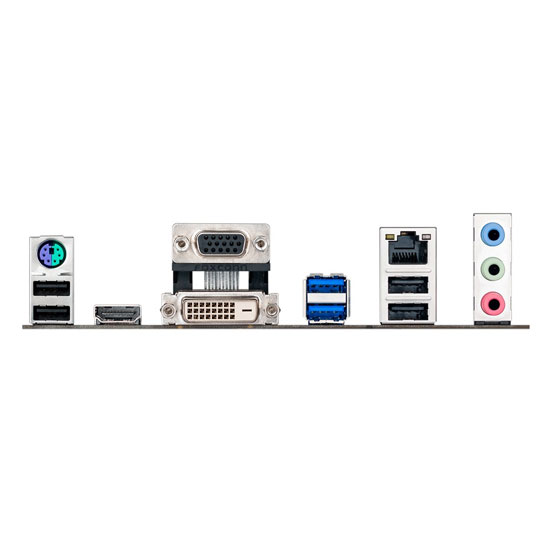

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 4 x USB 2.0
  • 2 x USB 3.0
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
Asus Service Centre
Telephone:
01442 265548
