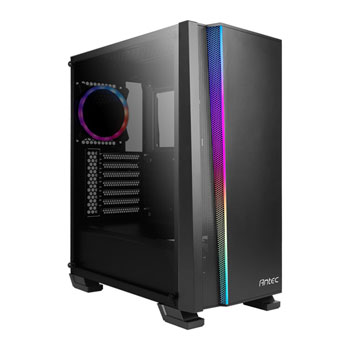

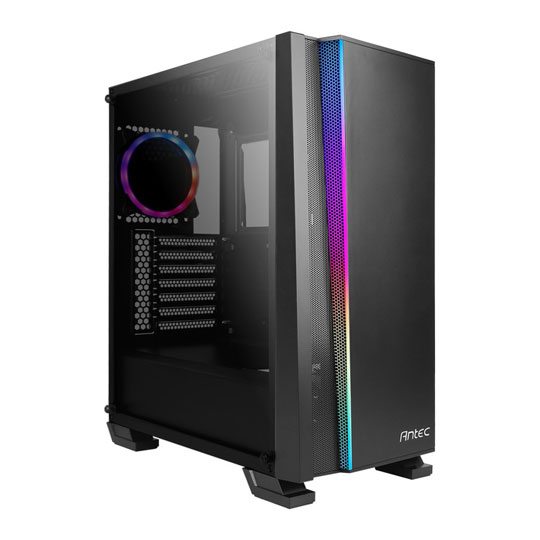

Antec NX500 Addressable RGB Midi Tower PC Gaming Case

Antec NX500, Black, Mid Tower PC Case, w/ Tempered Glass Window & ARGB Front Strip, E-ATX/ATX/mATX/mITX, 120mm ARGB Fan

Thumbnail 1 : Antec NX500 Addressable RGB Midi Tower PC Gaming Case Thumbnail 2 : Antec NX500 Addressable RGB Midi Tower PC Gaming Case Thumbnail 3 : Antec NX500 Addressable RGB Midi Tower PC Gaming Case Thumbnail 4 : Antec NX500 Addressable RGB Midi Tower PC Gaming Case
Scan code: LN99291 Manufacturer code: 0-761345-81055-5
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 1st Jun to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

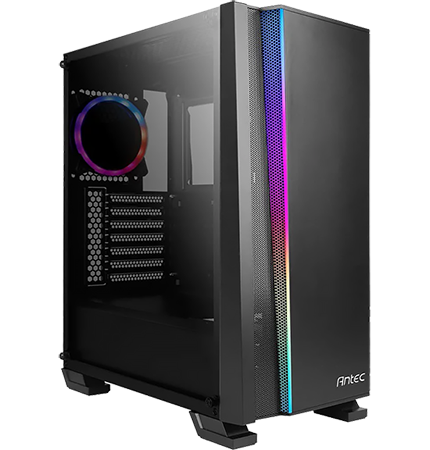

Enhance your Aesthetics with the NX500 Mid-Tower RGB PC Case from Antec

nx500 rgb mid tower gaming case

BUILT FOR GAMING The NX500 mid-tower gaming case from Antec effortlessly combines a wealth of incredible features to give you a case worthy of your high-end components. It offers USB 3.0 connectivity, ample storage drive bays and room for expansion. Enjoy easy cooling, with space for up to a 360mm radiator in the front or a 240mm radiator on top. The NX500 offers space for a variety of fans, and even comes with an ARGB LED fan included in the rear. Sync up your lighting with the 3-pin signal cable, and utilize the space for a motherboard up to an ATX form factor. Building your own custom PC has never been easier or more stylish with the NX500.

Put your Components on a Perfect Display

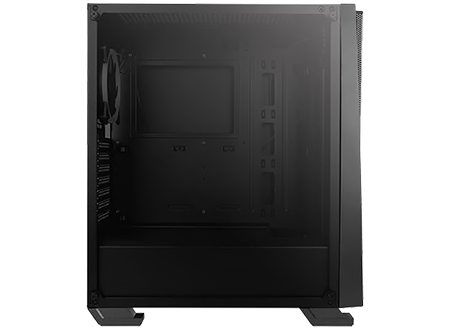

tempered glass side panel

ULTRA-DURABLE TEMPERED GLASS SIDE PANEL Show off the intense power of your components through a stunning tempered glass side panel. The NX500 allows you to create a visual spectacle for everyone to see when you've crafted your gaming PC with the durability and strength to match. Let your RGB lighting shine through and impress even the most seasoned PC enthusiasts.

Excellent Cooling Options

air and liquid cooling options

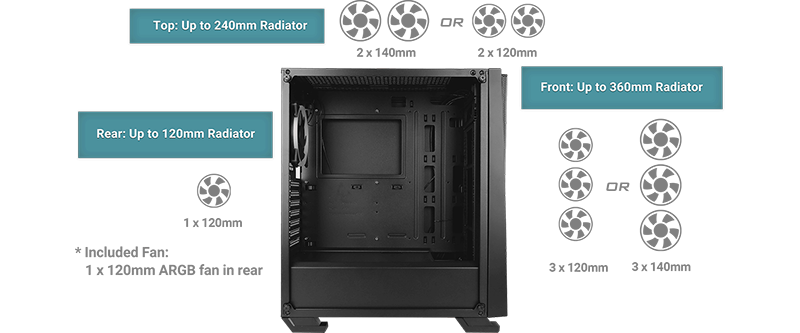

UTILIZE BOTH AIR AND LIQUID COOLING Keeping your components cool is one of the most important aspects of your build. Do so with ease with versatile space for a range of different fan sizes and radiator sizes. Cooling setups have never been easier with the NX500. Enjoy ample space for radiators or fans on the top, rear and front of your case.

Syncronize Lighting all Across your Setup

rgb lighting

RGB LIGHTING MOTHERBOARD SYNC Enjoy the ability to sync up RGB light all across your setup with intuitive motherboard syncing. Simply connect the 3-pin ARGB signal cable to your motherboard for the ability to change 16.8 million colours to suit your own personal style.

Versatile Connectivity Options

i/o ports

STAY CONNECTED WITH HANDY I/O PANEL The I/O panel on the top of your NX500 case offers two USB 2.0 ports, one USB 3.0 port, audio and mic inputs, an LED control button for lighting, and power and reset buttons. With this you can easily plug in your peripherals or other devices in the top of the case for easy access and fast data transferring.

Unmatched Support for all of your Hardware

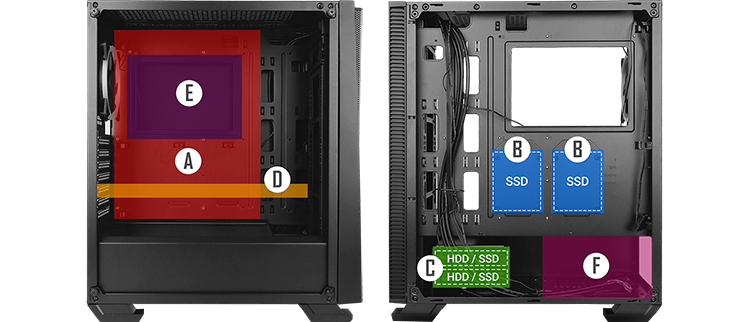

INSTALL ALL OF YOUR DREAM COMPONENTS Reap the benefits of extensive space for all the hardware you'll ever need. The NX500 has dedicated spaces for everything from a PSU to storage drives. Build your dream PC with total ease.

A: Motherboard support up to ATX. | B: 2.5" SSD: 4. | C: 3.5" HDD/2.5" SSD (convertible): 2/1
D: GPU support up to 330mm. | E: CPU cooler support up to 170mm. | F: PSU support up to 170mm.

Core Chassis Specifications
Case Edition NX500
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x LED Control Button
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 2.0
  • 1 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 1 x 120mm
  • 5 x 120mm / 5x 140mm
Fans Included 1 x 120mm w/ Addressable RGB LEDs
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/240/360mm
Top Radiator Compatibility 1 x 120/240mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Max CPU Cooler Height 165 mm
Max GPU Card Length 350 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters
  • Front Panel Addressable RGB LED Lighting
  • Included Addressable LED Fan/s
LED Lighting Colour RGB
LED Lighting Support & Control
  • Control via Compatible Motherboard D-RGB Header
  • Control via Inc. Controller/Hub (Buttons/Switches)
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 200 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials SPCC / Plastic
Dimensions 220 x 490 x 440 (WxHxD mm)
Weight 6.24 kg (Approx)
Please Note
Additional Information
Scan Code LN99291
Model Number 0-761345-81055-5
GTIN 0761345810555

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
14 days
RTB Period:
24 months
