Akasa A-NUC30-M1B Newton S6T Fanless Case For NUC

Thumbnail 3 : Akasa A-NUC30-M1B Newton S6T Fanless Case For NUC

Thumbnail 4 : Akasa A-NUC30-M1B Newton S6T Fanless Case For NUC

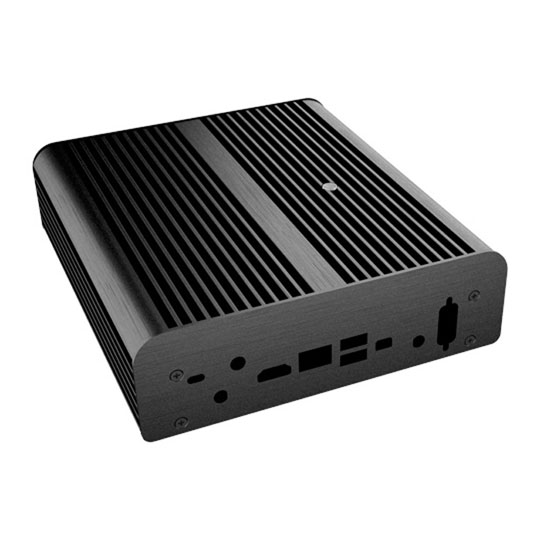

Akasa A-NUC30-M1B Newton S6T Fanless Case For NUC : image 1

Click Tozoom

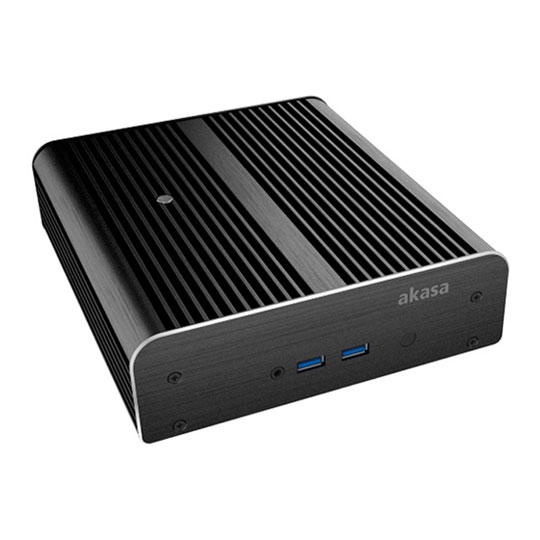

Akasa A-NUC30-M1B Newton S6T Fanless Case For NUC : image 2

Click Tozoom

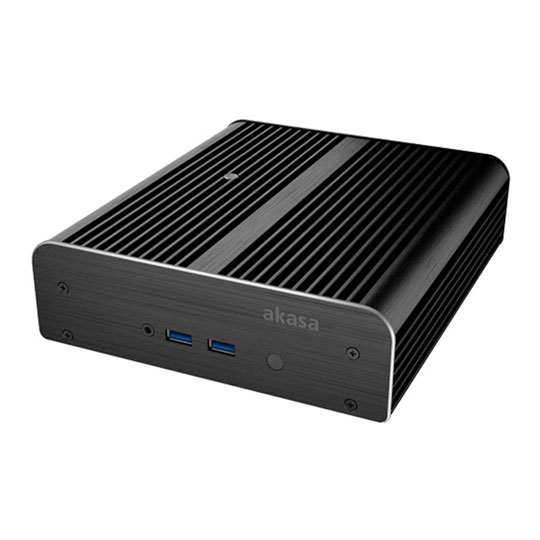

Akasa A-NUC30-M1B Newton S6T Fanless Case For NUC : image 3

Click Tozoom

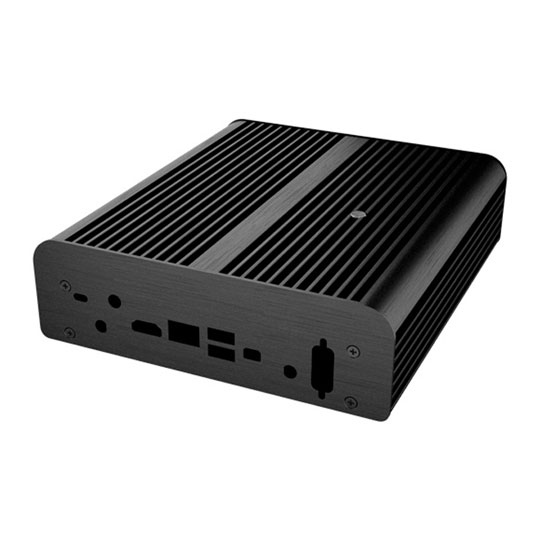

Akasa A-NUC30-M1B Newton S6T Fanless Case For NUC : image 4

Click Tozoom

Facebook Twitter Google Pinterest LinkedIn

Akasa Newton S6T, Fanless Case For Intel NUC 6th Generation, Serial Port, Aluminium, IR Receiver Opening, 2x USB 3.0

Scan code: LN73594 Manufacturer code: A-NUC30-M1B Request call

£64.49Item currently awaiting an ETA

Pre Order

Pre order

Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.

High End

Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

Product Overview Fanless case with Serial port for Intel® 6th Generation NUCsupport 2.5" SATA HDD / SSD.

Featuring:
• 2x front USB ports.
• Support for 2.5" SATA HDD/SSD.
• Serial port support.
• VESA mounting.
• Antenna fitting hole.
• Kensington lock.
• UCFF 4" x 4". Features • Aluminium fanless CPU cooling design.
• Stylish front panel diamond effect.
• Support IR remote function.
• Compatible with the following Intel® NUC Board: NUC6i5SYH / NUC6i5SYK / NUC6i3SYH / NUC6i3SYK.

Specifications
Case Edition	Newton S6T
Case Form Factor	UCFF 4" x 4"
Motherboard Form Factor	UCFF 4" x 4"
Material	Aluminium
Front/ Side/ Top Panel	1 x HD Audio 1 x IR Receiver Opening 1 x Power LED 2 x USB 3.0
Drive Bays	1 x 2.5" Internal
Expansion Slots
Fan Bays
Fans Included	None
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window	No
Power Supply Form Factor	External
Max PSU Length
Max CPU Cooler Height
Max VGA Card Length
Colour	Black/ Aluminium
Dimensions	176.5 x 53.5 x 200 (WxHxD mm)
Weight

TekSpek Guides

NUC PCs
Date Issued: 29th Oct 2013

Chip giant Intel produces the microprocessors - or brains - used in approximately 80 per cent of PCs. The firm acutely understands that desktop computers need to be made more appealing if they're to be lifted from the malaise affecting the industry.

Intel Next Unit of Computing (NUC)
Date Issued: 26th Mar 2013

It's a great time to be interested in small-form-factor computing. Once a niche hobby for home-theatre PC enthusiasts, small-form-factor designs are now capturing everyone's imagination thanks in no small part to the Raspberry Pi phenomenon.

Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Reviews

Akasa Newton S6T, Fanless Case For Intel NUC 6th Generation, Serial Port, Aluminium, IR Receiver Opening, 2x USB 3.0 is rated 5.0 out of 5 by 1.

Rated 5 out of 5 by mcloaked from An excellent 3rd party fanless case for the Skylake NUC This is an excellent fanless case for the Skylake NUC6i5SYK (or H). The instructions for installing the motherboard are clear on a large printed set of diagrams, and the process is straightforward if you take care doing each step paying attention to detail. Care is also needed to get the thermal pads in place on the top of the processor chip and the M.2 SSD. Getting the motherboard out of the original case in the NUC6i5SYK is also simple, and just needs a relatively small number of screws taking off to remove the motherboard, and then to remove the fan unit, and heat sink from the bottom of the motherboard, taking care to clean off the thermal paste once that is done. You also need to unscrew the fixing screw for the M.2 SSD, and take out the SSD, before you can gently prise off the two tiny delicate cables for the wifi/bluetooth antennas that are stuck to the inside of the top section of the original case. The original antennas are discarded as they don't work in the S6T. If you want to use wireless in the S6T, then you need to separately order a pair of 15cm long IPX MHF4 to RP-SMA Pigtail Adaptor Cables, and a pair of wifi antennas to screw into the SMA connectors once the transfer to the S6T has been completed. There are two holes in the rear section to take these SMA connectors in the S6T which have rubber stoppers in that are simply removed if you will be using wireless, or left in place if you are just connecting to the internet via ethernet. Note though that the MHF4 connectors are really tiny, and need very nimble fingers to push on to the tiny sockets on the AC8260 wireless card on the motherboard. The MHF4 connectors are currently the smallest radio frequency connectors in the world. Once the motherboard is in the S6T then the SSD can be put back. If you are transferring from a brand new NUC without any SSD fitted then just remove the antenna cables before transfer and then install the SSD once it it in the S6T. Do take care if you are using wireless that the correct antenna cables are bought, as there are some similar looking ones that have different connectors that may be too large to connect to the AC8260 wireless connectors which are only just over a millimetre wide. The install of a 2.5" SSD is also straightforward following the printed diagram guide if you are using one. One additional point is that once the fanless machine is ready to use it is worth going into the BIOS settings and changing the cooling setting mode from "managed" to "fanless" so that the operating system you install does not try to set a fan speed or to get information about a now non-existent fan. The rest of the transfer is routine especially if you have done a bit of home computer hardware DIY before. The case with its transferred motherboard works very well and is of course completely silent. Very pleased with the final result.

Date published: 2016-09-06
