Scan code: LN124862 Manufacturer code: A-NUC78-M1B

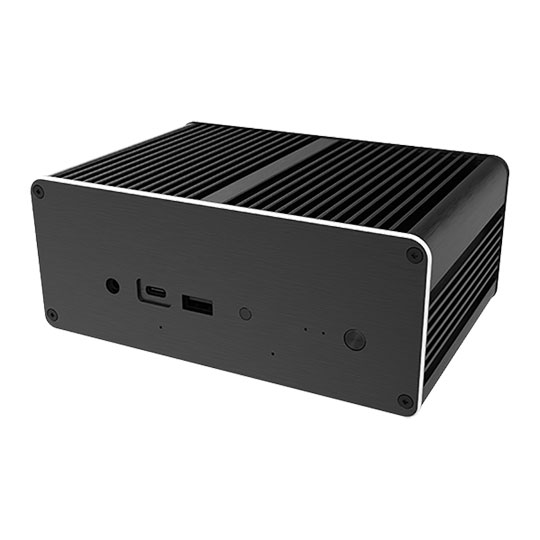

Akasa Newton A50 Ultra-Compact 1.3L Fanless Case

Akasa Newton A50 Ultra-Compact Fanless Case for ASUS Mini PC PN51 and PN50 5000 series up to Ryzen 7, Aluminium

Thumbnail 1 : Akasa Newton A50 Ultra-Compact 1.3L Fanless Case Thumbnail 2 : Akasa Newton A50 Ultra-Compact 1.3L Fanless Case Thumbnail 3 : Akasa Newton A50 Ultra-Compact 1.3L Fanless Case Thumbnail 4 : Akasa Newton A50 Ultra-Compact 1.3L Fanless Case
Scan code: LN124862 Manufacturer code: A-NUC78-M1B
Order in the next 2 hrs 11 mins and get it tomorrow
£99.98
Get it Tomorrow, 18 MayIn stock
From £8.60 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £8.60
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £103.10
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Small but Powerful

Supports ASUS PN51 and PN50 with AMD Ryzen 5000 series mobile processor. Support for four 4K displays or one 8K display outputs, making it ideal for digital signage applications or where multiple displays are required.


Extremely Compact and Robust

At just 1.3L, the Newton A50 is very compact in form factor with no vent holes. With space for one M.2 SSD and one 2.5" HDD/SSD.


Aluminium Core for Hi-Performance

Solid aluminium core coupled with hi-performance thermal compounds and pads conducts excess heat away from the key hot zones of the APU and Voltage Power Management (VRM) regulators to the aluminium body. Keeping your system silently cool and running smoothly without thermal throttling.


Superb Cooling Performance

Completely silent mini PC case utilise all aluminium fanless CPU cooling design which acts as a heatsink to dissipate the heat to the surrounding.


Perfect for Remote Office or Uncluttered Desk

Its compact size makes it perfect for travelling for remote office or collaborative office by simply connecting it to a display via HDMI or Type-C AV cables, and power. Or enjoy an uncluttered desk with the Newton A50 mounted somewhere out of the way.


Cool Storage, Cool Performance

Internal M.2 SSD heatsink reduces heat and enhances performance.

Features
• Aluminium fanless CPU cooling design.
• Stylish front panel diamond effect.
• Provides one rear serial port.
• Supports one M.2 SSD and one 2.5" SSD/HDD.
• Suitable for up to Ryzen™ 7 5700U.

Additional Specifications:
• Material Aluminium.
• Motherboard Types UCFF 4" X 4".
• Motherboard Support ASUS Mini PC PN51 and PN50 (5000 series up to Ryzen™ 7).
• Maximum TDP Support 25W.
• Dimensions 169 x 115.5 x 68.5mm (W x D x H).
• Volume 1.33L.
• Drive Bays Supports one M.2 , 2.5" SSD/HDD.
• Front I/O Opening Power button, power and HDD LEDs, IR receiver window, USB Type-A port , USB Type-C port , HD Audio in/out, Dual microphone array.
• Rear I/O Opening DC-in port, USB Type-A port x2, RJ45 LAN port, Type-C port, HDMI port, DisplayPort.
• Antenna Fitting Holes 2.
• Security Kensington lock.
• VESA Mounting Support.
Specifications
Core Chassis Specifications
Case Edition A-NUC78-M1B
Case Form Factor mini PC
Motherboard Form Factor UCFF 4" x 4"
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HD Audio
  • 1 x HDD Activity LED
  • 1 x IR Receiver
  • 1 x Power Button
  • 1 x Power LED
  • 1 x USB
  • 1 x USB Type-C
Drive Bays
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height
Max GPU Card Length
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Construction Materials Aluminium
Dimensions 169 x 68.5 x 115.5 (WxHxD mm)
Weight
Please Note
Additional Information
Scan Code LN124862
Model Number A-NUC78-M1B
GTIN 4710679551685
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Akasa
