End Of Life
Scan code: LN22436 Manufacturer code: ASR3405-KIT

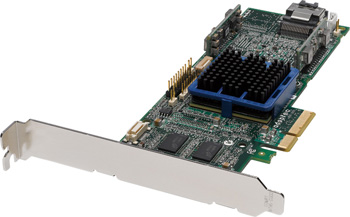

Adaptec RAID 3405 4 Port PCI-E SAS/SATA RAID Controller Low-Profile

Adaptec RAID 3405 4 Port PCI-E SAS/SATA RAID Controller Low-Profile

Thumbnail 1 : Adaptec RAID 3405 4 Port PCI-E SAS/SATA RAID Controller Low-Profile

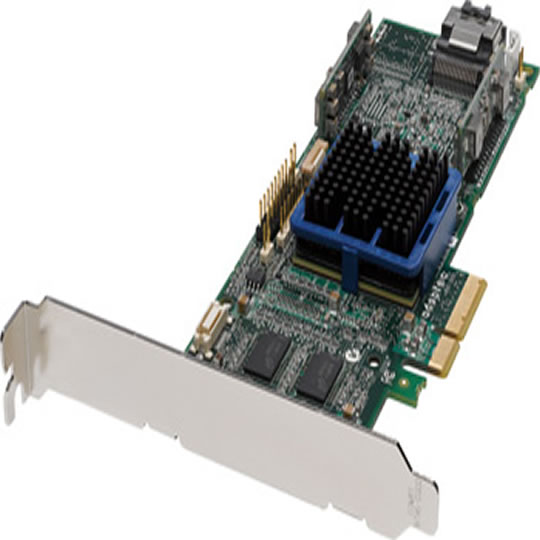

Adaptec RAID 3405 4 Port PCI-E SAS/SATA RAID Controller Low-Profile : image 1
Scan code: LN22436 Manufacturer code: ASR3405-KIT
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Product Overview Most advanced PCIe connectivity and data protection for SATA and SAS disk drives

4-port MD2 low-profile PCI Express (PCIe) Unified Serial controller supporting RAID 0, 1, 1E, 5, 5EE, 6, 10, 50*, 60*, Copyback Hot Spare for pedestal and high-density rack mount servers.

The Series 3 family of Adaptec Unified Serial™ (SATA/SAS) RAID controllers hits the sweet spot of flexibility and performance by supporting either high-capacity SATA drives, high-performance SAS drives, or both on a single system.

The Adaptec RAID 3405 features 500 MHz of processing power, a 128MB ECC-protected data cache, connectivity with x4 PCI-Express, and scalability up to 128 devices using SAS expanders.

The Adaptec RAID 3405 supports a wide range of operating systems, compatibility with more than 300 third-party devices, and full integration with Adaptec Storage Manager™ for centralized management of all Adaptec RAID controllers on the network.

Features • Supports 4 direct-attached or up to 128 SAS or SATA disk drives using SAS expanders
• RAID Levels 0, 1, 10, 5, 50*, JBOD
• Advanced Data Protection Suite
• RAID Levels 1E (Striped Mirror), 5EE (Hot Space), 6 and 60* (Dual Drive Failure Protection)
• Copyback Hot Spare
• Dynamic caching algorithm
• Online Capacity Expansion
• RAID Level Migration
• Optimized Disk Utilization
• Quick Initialization
• Native Command Queuing (NCQ)
• Hot spares – global, dedicated, and pooled
• Background initialization
• Automatic/manual rebuild of hot spares
• SAF-TE enclosure management support
• Configurable stripe size
• S.M.A.R.T. support
• Up to 512TB array sizes
• Multiple arrays per disk drive
• Bad stripe table
• Dynamic sector repair
• Staggered drive spin-up
• Bootable array support
• Hot-plug drive support

* Expander is necessary
