Fractal Design Terra Graphite SFF Mini-ITX PC Gaming Case
Fractal Design Terra Graphite SFF Mini-ITX PC Gaming Case
Scan code: LN129640 Manufacturer code: FD-C-TER1N-01
£174.98Item due on 15 July 2026
Pre Order
Due 15th Jul
  • Thumbnail 1 : Fractal Design Terra Graphite SFF Mini-ITX PC Gaming Case
  • Thumbnail 2 : Fractal Design Terra Graphite SFF Mini-ITX PC Gaming Case
  • Thumbnail 3 : Fractal Design Terra Graphite SFF Mini-ITX PC Gaming Case
  • Thumbnail 4 : Fractal Design Terra Graphite SFF Mini-ITX PC Gaming Case

Fractal Design Terra Graphite SFF Mini-ITX PC Gaming Case

Fractal Design Terra, Graphite, Small Form Factor Chassis, USB 3.2 Gen2 Type-C, Mini-ITX
MORE INFO
MORE INFO

Scan code: LN129640 Manufacturer code: FD-C-TER1N-01
£174.98
Colour
Graphite

£174.98
Silver

£174.98
Jade

£174.98
Item due on 15 July 2026
Pre Order
Due 15th Jul
Pay in 3 interest-free payments of £58.33

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £15.86 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

Suggested Alternatives

Terra Graphite Mini-ITX PC Case from Fractal

Terra Mini-ITX PC Case

Crafted to elevate Terra is a PC case designed and engineered to reshape the small form factor gaming experience. Inspired by the homes of modern gamers, Terra incorporates boutique design features such as thick panels cut from anodised aluminium, CNC-milled details and FSC-certified solid walnut. Inside, it includes a PCIe 4.0 Riser cable and features a stepless slidable central wall for build flexibility, providing space for a high-performance GPU up to 322mm long.

Compact. Convenient. Elegant

322mm long GPU

ENGINEERED FOR SFF GAMINGEnjoy powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 L case.

Easily accessible

ACCESSIBLESlide open the top with an integrated tab and lift open the side panels for easy access to your components.

ELEGANTLY CRAFTED

ELEGANTLY CRAFTEDFeaturing panels cut from FSC-certified solid walnut and anodised aluminium, including an 8 mm-thick aluminium front.

FRONT-FACING I/O

FRONT-FACING I/OFeaturing an aluminium power button and two USB ports for connecting devices, including one USB Type-C 20Gbps.

PCIe 4.0 Riser cable

READY TO CONNECTIncludes a PCIe 4.0 Riser cable and features dedicated storage space for up to two 2.5” SDD drives.

TRANSPORTABLE

TRANSPORTABLEFeatures the ability to lock the top and side panels for safer transportation of your build

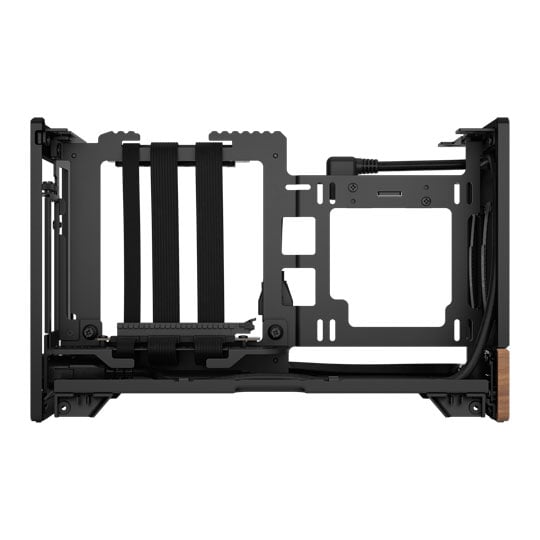

stepless, slidable central wall

ADJUSTABLE MOTHERBOARD PLATEDiscover your build's ideal balance with 30mm of internal flexibility provided by a stepless, slidable central wall.

Contents

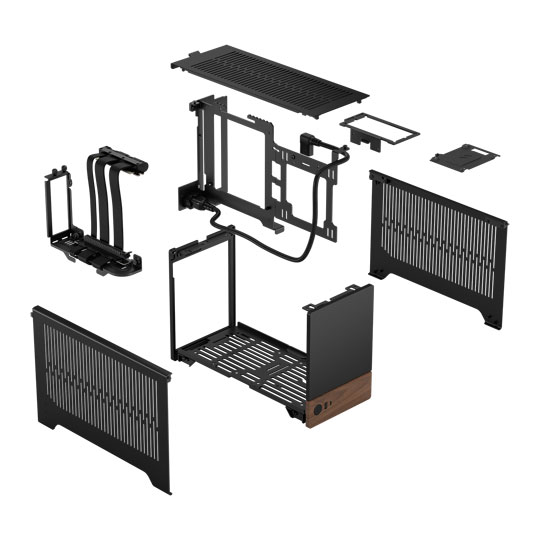

Removable Components

Components

Accessory Box Contents

• 3x Cable Straps
• 4x Cable Ties
• 2x 10mm PSU Spacers
• 2x 6.5mm PSU Spacers
• 4x SSD Screws

• 4x PSU Screws
• 4x Fan Screws
• 1x 2.5 Bracket
• 1x Cleaning Cloth
• 10x MB Screws

Specifications
Core Chassis Specifications
Case Edition Terra
Case Form Factor Mini-ITX
Motherboard Form Factor Mini-ITX
Back Connect Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Power Button
  • 1 x USB 3.0
  • 1 x USB 3.2 Gen2 Type-C
Drive Bays 2 x 2.5" Internal
Standard Expansion Slots 3
Vertical Expansion Slots
Fans & Filters
Fan Bays 1 x 120mm
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility 1 x 120mm
Clearances
Max CPU Cooler Height 77 mm
Max GPU Card Length 322 mm
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support SFX / SFX-L
PSU Mounting Location
Max PSU Length 130 mm
Chassis Physical Specifications
Colour Graphite
Chassis Construction Materials Aluminium
Front Panel Type Wood
Dimensions 153 x 218 x 343 (WxHxD mm)
Weight 3.1 kg (Approx)
Package Type
Please Note
Additional Information
Scan Code LN129640
Model Number FD-C-TER1N-01
GTIN 7340172703983
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
