Sapphire AMD Radeon RX 580 8GB NITRO+ Limited Edition Graphics Card
There are 6 people viewing this productDelivery options £5.48 By DPD On 2nd May 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

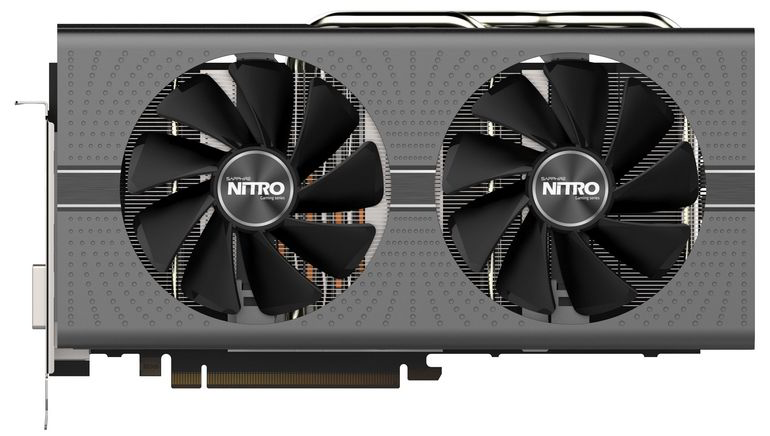

Radeon Graphics Card. Sapphire NITRO+ RX 580
Limit Edition gpu from sapphire built on amd technology. #radeonrebels
These limited edition graphics cards from Sapphire are full of impressive performance capabilities. The NITRO+ RX 580 is no ordinary card, they outperform similar chips and have plenty of headroom for some serious overclocking. They feature a customizable LED SAPPHIRE logo for some personalising, enhanced cooling for those extended gaming sessions and are finished in a stylish gun-metal complimented by two cool blue LED fans.
RX 580 GPU Defenses
Sapphire motherboard fuse protection
In order to protect your card, the SAPPHIRE NITRO+ series cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Radeon Fan Control
Enhanced Cooling and Noise Performance
Standard industry fans may have up to 10% difference between their fan rotation cycles (RPM). With the new Fan IC Control on SAPPHIRE NITRO+ graphics cards, this differential is reduced to 3%. This 70% improvement on accuracy ensures that cooling and noise performance of every NITRO+ card is up to scratch.
VRM SAPPHIRE Cooling
More efficient and effective cooling
The SAPPHIRE NITRO+ cards are designed with robust VRM cooling and have a high thermal conductivity pad on the backplate to take away the heat efficiently and effectively.
Black Diamond Choke 4
Exclusive chokes for high-quality components
Our Black Diamond Chokes are 10% cooler and 25% more power efficient than a normal choke - and these Mark 4 Chokes reduce the coil temperatures by other 15% over the Mark 3s.
These exclusive chokes will maintain gaming stability using their built-in heatsinks and help minimize coil whine
NITRO+ Dual Ball-Bearings
1.85X longer life with Sapphire GPU
Dual ball bearings on the fan spindles ensure smooth running and long life and are designed to keep out dust. A quiet cooling solution, Two ball-bearing fan features a high-efficiency blade design.
RX 580 Black Polymer Caps
Long Life Cap Technology
High quality aluminum-made long life capacitor is not only to extend the component life time, the product reliability and overclocking ability are also improved. When operational temperatures dropped by 20°C, the product life span is going to be extended up to a factor of ten. In addition, when the operational temperature increased by 20°C, the product life span only decreased by 10%.
Quick Connect Tech
graphics cards fans easy solution
SAPPHIRE’s Quick Connect System provides a quick and easy solution. If there’s a fan issue detected, the user doesn’t need to return the entire card – SAPPHIRE’s partners will send out a replacement fan directly to the customer or the retailer. Please contact your place of purchase to request a fan replacement. SAPPHIRE’s channel partner will arrange the ideal solution for you to receive your replacement fan.
*image for display purpose only
Radeon NITRO+ FRTC
Enhancing your PC gaming power
Frame Rate Target Control (FRTC) enables users to set a target maximum frame rate when playing an application in full screen mode; the benefit being that FRTC can reduce GPU power consumption (great for games running at frame rates much higher than the display refresh rate) and therefore reduce heat generation and fan speeds/noise on the graphics card.
Frame Rate Target Control caps performance not only in 3D rendered in-game scenes, but also in splash screens, loading screens and menus, where frame rates can often run needlessly into the hundreds of FPS. Users might wish to set a very high cap just to limit wasteful FPS like that seen in menus and such, while still taking advantage of the responsiveness given by FPS well beyond 60.
Nitro Glow 2
Personalise your GPU with some style
The graphics card is more than another component; it’s the beating heart of your gaming system. It should look as good as it costs. With tasteful shroud design augmented by RGB LEDs, each card is practically a piece of art. You can even change the colours of the LED, for your own customized design. This can be controlled via software using the latest version of SAPPHIRE’s Award Winning Overclocking Utility – TriXX 3.0. Users can choose from a set of five different modes including Fan Speed Mode, PCB Temperature Mode or the colourful rainbow mode. If you prefer, LEDs can also be turned off.
Sapphire Fan Check
Keep a close eye on your cooler
With NITRO+ models, SAPPHIRE has upped the stakes with its new Fan Check, which allows users to check the cooler's status via SAPPHIRE TriXX 3.0 software, and contact customer support in case of problems.
RX 580 NITRO CoolTech
Intelligent Fan Technology
With the SAPPHIRE NITRO Gaming Series cards’ Intelligent Fan Control III, the fan starts precisely at 56 degrees Celsius to smartly balance performance against fan noise.
NITRO Free Flow
rapidly dissipating heat from your RX 580
We looked at the traditional axial fan design system, and found that the way it circulates the hot air back to the fan inlet resulted in a higher temperature over time. With NITRO Free Flow (NFF) we redesigned the airflow of the entire cooler and board, so that the hot air is expelled through the system fan instead, rapidly dissipating heat.
two times the fans for two times the cooling
SAPPHIRE's acclaimed Dual-X Cooling is powered by two massive yet silent fans and state-of-the-art radiator design. The new form of our 95mm blades mean greater airflow and superior heatsink coverage at lower noise compared to standard cooling designs.
These feature dual ball bearing fans, which have an 85% longer lifespan than sleeve bearings in our tests.
Core RX 500 Series Features
High performance gaming and total hardware control, through an elegant Radeon software interface.
Experience uninterrupted gaming with Radeon RX500 thanks to FreeSync 2 and HDR gaming.
Use Radeon Chill for higher clock speeds with less power.
Built to last with HDMI 2.0 and DisplayPort 1.4 HBR3/1.4 HDR connections.
RX500 series support both Vulkan and DirectX 12 technologies.
Share your memorable moments and clutch victories with Radeon ReLive.
*Features may differ depending on card version
|Chipset||Radeon RX 580|
|Edition||NITRO+ Limited Edition|
|Manufacturing Process||14 nm|
|Core Clock||1411 (1450 in OC Mode) MHz|
|Memory Clock||2000 MHz|
|Memory Speed (Effective with DDR)||8000 MHz|
|Memory Data Rate||8.0 Gb/s|
|Memory Bus||256 Bit|
|Cooling Solution||Dual Fan (2)|
|Cooler Design||SAPPHIRE Dual-X|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||3840x2160 (Ultra HD)|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|AMD CrossFire Support||2-Way CrossFire|
|AMD Freesync Support||Yes|
|AMD FreeSync Version||FreeSync™ 2|
|Microsoft DirectX Support||12 API|
|Low Profile Support||N/A|
|Graphics Card TDP/Power||185 W|
|Graphics Card Power Connectors||
|Minimum Recommended PSU||500 W|
|Maximum GPU Temperature|
|Dimensions||135 x 43 x 260 mm|
