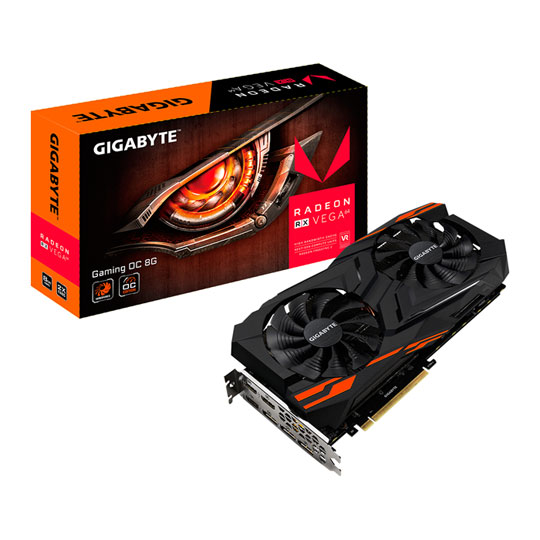

Gigabyte AMD Radeon RX VEGA 64 GAMING OC 8GB HBM2 Graphics Card

8GB Gigabyte Radeon RX Vega 64 GAMING OC, 14nm, 4096 Streams, 1276MHz, 1560MHz Boost, 945MHz HBM2, DP/HDMI

Gigabyte
Scan code: LN86389 Manufacturer code: GV-RXVEGA64GAMING OC-8GD Request call
£829.99Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £20.73 / month (APR 15.9%)
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview WINDFORCE 2X Cooling System
The WINDFORCE 2X cooling system features two 100mm unique blade fans, alternate spinning fan design, pure copper composite heat-pipes direct touch GPU, angular fin design, semi-passive 3D active fan, advanced copper back plate with heat-pipe, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

Heat Pipe Direct Touch GPU
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU for enhanced thermal transfer.

Advanced Copper Back Plate Cooling with Heat-Pipe
Excessive heat from GPU not only gets dissipated utilizing the massive cooling module in the front but also through the back side with a copper plate, providing a well-rounded thermal solution for the GPU. And additional heat-pipe on the back can dissipate more heat from the key components.

Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fan.

3D Active Fan
The 3D Active Fan provides semi-passive cooling, the fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

Composite Heat-Pipes
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.

Alternate Spinning Fan Design
Optimize air flow by the alternate spinning fans that reduce air turbulence and effectively dissipate the heat.

Angular Fin Design
The angular and unequal fins height does not only channel the airflow through the fins and enlarge the contact surface but also results in a lower noise level and better cooling capacity.

Up to 6 Displays
With 3x Display port and 3x HDMI outputs, you can arrange up to 6 monitors in any way you like, and enjoy 6 displays at the same time.

Built Strong

Stylish Metal Back Plate
The metal back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product.

Ultra Durable Materials
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.

Built for Overclocking with 12+1 Power Phases
Compared to reference card, the 12+1 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output. Features • Powered by AMD Radeon™ RX VEGA 64 GPU.
• 8GB 2048-bit High Bandwidth Memory (HBM2).
• WINDFORCE 2X 100mm Fan Cooling System.
• Radeon™ VR Ready Premium.
• Features HDMI x3/ DisplayPort x3.
• Built for Extreme Overclocking 12+1 Power Phases.
Specifications
Chipset Radeon RX Vega64
Edition GAMING OC
Manufacturing Process 14 nm
Microarchitecture Vega
Streams 4096
Core Clock 1276 MHz
Boost Clock 1560 MHz
Memory Size 8GB
Memory Type HBM2
Memory Clock 945 MHz
Memory Speed (Effective with DDR)
Memory Data Rate 1.9 Gb/s
Memory Bus 2048 Bit
Memory Bandwidth
Peak Half Precision Compute Performance
Peak Single Precision Compute Performance
Cooling Solution Dual Fan (2)
Cooler Design WINDFORCE 2X
Fitted/Included Backplate Yes
Interface PCIe 3.0 (x16)
Connectivity
  • 3 x DisplayPort 1.4
  • 3 x HDMI 2.0b
Maximum Digital Resolution 7680x4320 @ 60Hz
Maximum Analog (VGA) Resolution N/A
Max. Concurrent Displays 6 Displays
AMD CrossFire Support 4-Way CrossFire
AMD Freesync Support Yes
AMD FreeSync Version FreeSync™ 2
Microsoft DirectX Support 12 API
HDR Support Yes
Width 2.5 Slot
Low Profile Support N/A
Graphics Card TDP/Power
Graphics Card Power Connectors 2 x 8-pin PCIe
Minimum Recommended PSU 750 W
Maximum GPU Temperature
Dimensions 131.6 x 53 x 273.8 mm
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
