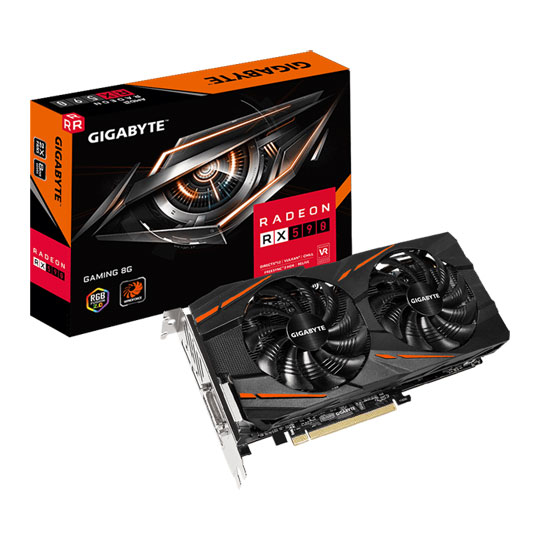

Gigabyte AMD Radeon RX 590 GAMING 8GB GDDR5 Graphics Card
8GB Gigabyte Radeon RX 590 GAMING, 12nm, 2304 Streams, 1545MHz Boost, 8000MHz GDDR5, DP/HDMI/DVI-D
Gigabyte GeForce RX 590 GAMING Graphics Card
Radeon RX Graphics with GIGABYTE The GIGABYTE RX 590 GAMING holds 8GB of memory, is packed with great technologies and built with high-grade components. The advanced Windforce cooling system keeps your card from overheating by driving out heat from the GPU area with 3 pure copper heat pipes, direct touch with the heat pipe and GPU, a 90mm unique blade fan design and 3d active fan with LED indicators. All of these functions come together to give you card that will run better for longer. GIGABYTE's cutting edge AORUS Engine allows you to tune the clock speeds, voltage, fan performance and power target in real-time.
2304Streams
8GBGDDR5 Memory
1545 MHz (1560 MHz)Core Clock (OC Mode)

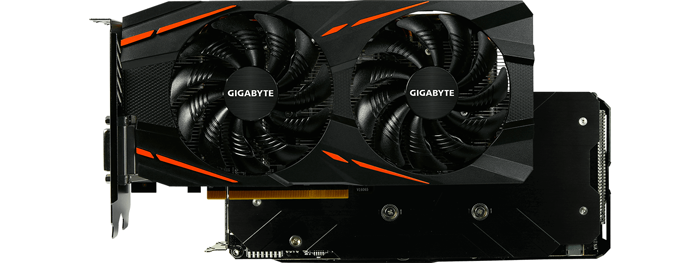

WINDFORCE 2X Cooling System
Effective Removal of Heat The WINDFORCE 2X cooling system features 3 pure copper composite heat-pipes, heat-pipe direct touch GPU, 90mm unique blade fan design, 3D active fan with LED indicators, stylish metal back plate, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

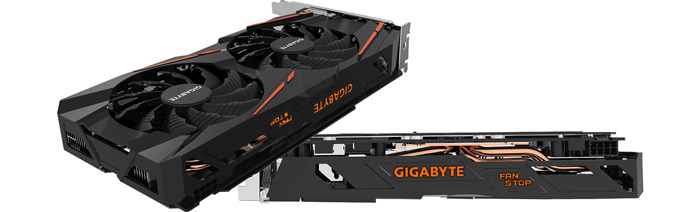

Light Up and Synchronize with other GIGABYTE Devices
RGB Fusion 2.0 With 16.7M customizable color options and numerous lighting effects, you can choose a number of lighting effects such as: cycling, flash, dual flash and breathing or you can synchronize with other GIGABYTE devices.
Excellent Heat Transfer
UNIQUE BLADE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle. The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
HEAT PIPES DIRECT TOUCHThe shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPESThe composite heat-pipes combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
One-click Super Overclocking with AORUS Engine
Extreme durability and overclocking The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements. Simply click on the AORUS engine and you can easily adjust the card to meet different requirements without any overclocking knowledge. The interface and functionality of the software is subject to each model. The graphics card uses the 6+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
AMD Graphics Card Specifications
AMD Radeon RX Card Specifications | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model | RX 7900 XTX | RX 7900 XT | RX 6950 XT | RX 6900 XT | RX 6800 XT | RX 6800 | RX 6750 XT | RX 6700 XT | RX 6650 XT | RX 6600 XT | RX 6600 | RX 6500 XT | RX 6400 | RX 5700 XT | RX 5600 XT | RX 5500 XT | RX 580 | RX 570 | |
Architecture | RDNA3 | RDNA3 | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RNDA2 | RDNA | RDNA | GCN 4th | GCN 4th | |
GPU | Navi 31 | Navi 31 | Big Navi | Big Navi | Big Navi | Big Navi | Big Navi | Big Navi | Big Navi | Big Navi | Big Navi | Big Navi | Big Navi | Navi 10 | Navi 10 | Navi 14 | Polaris XTX | Polaris 20 Pro | |
Stream Processors | 6,144 | 5,376 | 5,120 | 5,120 | 4,608 | 3,840 | 2,560 | 2,560 | 2,048 | 2,048 | 1,792 | 1,024 | 768 | 2,560 | 2,304 | 21,408 | 2,304 | 2,048 | |
Ray Processors | 96 | 84 | 80 | 80 | 72 | 60 | 40 | 40 | 32 | 32 | 28 | 16 | 12 | 0 | 0 | 0 | 0 | 0 | |
Reference Base Clock | 2,300MHz | 2,000MHz | 2,100MHz | 2,015 MHz | 2,015 MHz | 1,815 MHz | 2,495MHz | 2,321 MHz | 2,410MHz | 1,986MHz | 1,626MHz | 2,610MHz | TBC | 1,605 MHz | 1,420 MHz | 1,607 MHz | 1,257 MHz | 1,168 MHz | |
Reference Boost Clock | 2,500MHz | 2,400MHz | 2,310MHz | 2,250MHz | 2,250 MHz | 2,105 MHz | 2,600MHz | 2,581 MHz | 2,635MHz | 2,589MHz | 2,491MHz | 2,815MHz | 2,321MHz | 1,905 MHz | 1,620 MHz | 1,845 MHz | 1,340 MHz | 1,244 MHz | |
Memory | 24GB GDDR6 | 20GB GDDR6 | 16GB GDDR6 | 16GB GDDR6 | 16GB GDDR6 | 16GB GDDR6 | 12GB GDDR6 | 12GB GDDR6 | 8GB GDDR6 | 8GB GDDR6 | 8GB GDDR6 | 4GB GDDR6 | 4GB GDDR6 | 8GB GDDR6 | 6GB GDDR6 | 4GB/8GB GDDR6 | 4GB/8GB GDDR5 | 4GB/8GB GDDR5 | |
Memory Controller | 384-bit | 320-bit | 256-bit | 256-bit | 256-bit | 256-bit | 192-bit | 192-bit | 128-bit | 128-bit | 128-bit | 64-bit | 64-bit | 256-bit | 192-bit | 128-bit | 256-bit | 224-bit | |
TDP | 355W | 315W | 335W | 300W | 300W | 250W | 250W | 160W | 180W | 160W | 132W | 107W | 53W | 225W | 160W | 130W | 185W | 150W |
