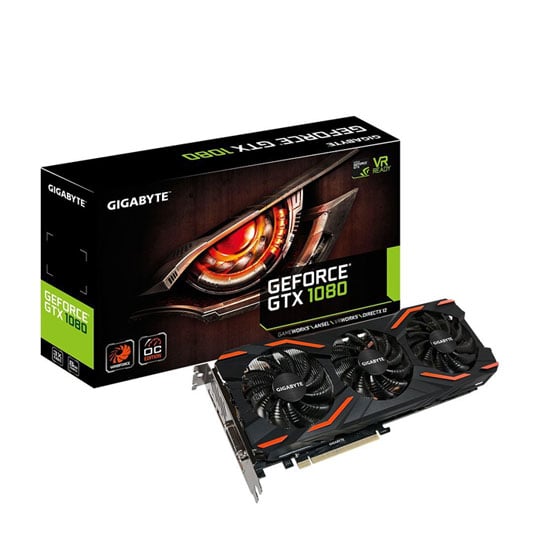

Gigabyte NVIDIA GTX 1080 8GB WindForce3 OC Graphics Card

8GB Gigabyte GTX 1080 OC WindForce3 OC GDDR5X VR Ready Graphics Card, 2560 Core, 1632 MHz GPU, 1771 MHz Boost

Gigabyte
Scan code: LN77549 Manufacturer code: GV-N1080WF3OC-8GD-B Request call
Was: £509.99
£498.49
In stock
Pay on Scan Finance with a 10% deposit from just £12.45 / month (APR 15.9%)
High End
Delivery options £5.48 By DPD On 2nd May 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview With an overclocked core and based on NVIDIA's Pascal architecture, the Gigabyte GeForce GTX 1080 OC 8G Graphics Card provides major improvements in performance, memory bandwidth, and power efficiency over its predecessor, the high-performance Maxwell architecture. It also introduces innovative graphics features and technologies that redefine the computer as the platform for playing AAA games and taking full advantage of virtual reality via NVIDIA VRWorks.

The front panel of the card features a variety of outputs. There are three DisplayPort 1.4 outputs in addition to an HDMI 2.0b output and a DVI-D Dual-Link output. The GTX 1080 is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU's 2560 cores to accelerate tasks using CUDA or other APIs.

This card features Gigabyte's WINDFORCE 3X cooling system. The cooling system uses three large fans with swept blades to whisk away hot air and lower the GPU's internal temperature. Features Windforce 3X Cooling System
The WINDFORCE 3X cooling system features 3 pure copper composite heat-pipes, special fin architecture, unique blade fan design, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

WINDFORCE 3X Cooling System-Fans - Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.

3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming.

WINDFORCE 3X Cooling System-Heat Pipes - Composite heat-pipes
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.

Heat Pipe Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.

Outlook - Stylish Metal Back Plate
The metal back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product.

Performance - One-click Super overclocking
With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.

Durability - Smart Power LED indicators
Be alert when PCI-E voltage is unstable with the smart power LED indicator.

Ultra Durable Materials
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.

Built for OverClocking with 8+2 power phases
Compared to founders edition, the 8+2 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output.

Intuitive Utility - Xtreme Engine
Adjust clock speeds, voltage, fan performance, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
Specifications
Specifications
Chipset GeForce GTX 1080
Edition WindForce3 OC
Manufacturing process 16 nm
Microarchitecture Pascal
Cores 2560
Streams N/A
Core Clock 1632 (1657 in OC Mode) MHz
Boost Clock 1771 (1797 in OC Mode) MHz
Memory Size 8GB
Memory Type GDDR5X
Memory Clock 10010 MHz
Memory Bus 256 Bit
Cooling Solution Tri Fan (3)
Cooler Design WINDFORCE 3X
Included/Fitted Backplate Yes
Interface PCIe 3.0 (x16)
Connectivity
  • 3 x DisplayPort 1.4
  • 1 x DVI-D DL
  • 1 x HDMI 2.0b
Maximum Digital Resolution 7680x4320 @ 60Hz
Maximum Analog (VGA) Resolution N/A
Max. Concurrent Displays 4 Displays
NVIDIA SLI Support 2-Way SLi with High Bandwidth Bridge Support
GeForce GTX VR Ready Yes
Microsoft DirectX Support 12 API with Feature Level 12.1
HDCP Ready Yes
Width Dual Slot
Low Profile Compatible No
Low Profile Support N/A
Graphics Card TDP/Power
Graphics Card Power Connectors 1 x 8-pin PCIe
Minimum Recommended PSU 500 W
Maximum GPU Temperature 94 °C
Dimensions 114 x 41 x 280 mm
Package Type Retail
