Fractal Design ION+ 2 PLATINUM 860 Watt Quiet Fully Modular Power Supply/PSU

860W Fractal Design ION+ 2, Fully Modular, 80PLUS Platinum, QUIET SLI/XFire, Single Rail, 71.6A, 140mm Fan, ATX PSU

Thumbnail 1 : Fractal Design ION+ 2 PLATINUM 860 Watt Quiet Fully Modular Power Supply/PSU Thumbnail 2 : Fractal Design ION+ 2 PLATINUM 860 Watt Quiet Fully Modular Power Supply/PSU Thumbnail 3 : Fractal Design ION+ 2 PLATINUM 860 Watt Quiet Fully Modular Power Supply/PSU Thumbnail 4 : Fractal Design ION+ 2 PLATINUM 860 Watt Quiet Fully Modular Power Supply/PSU
Scan code: LN115829 Manufacturer code: FD-P-IA2P-860
£124.99
FREE DELIVERY ON THIS ITEM
Order now and get it tomorrow, Fri 29th Oct
From £11.22 / month (APR 14.9%)
Monthly Payment: £11.22
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £124.99
Total inc. interest: £134.65
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 29th Oct to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

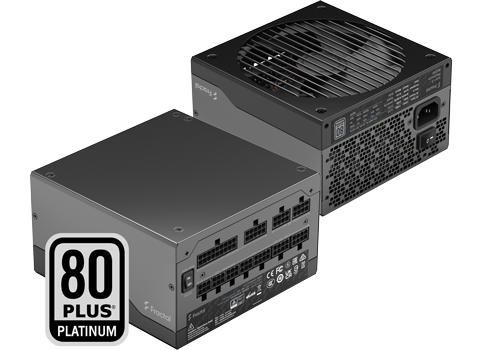

ION+ 2 Platinum Fully Modular 860W ATX Power Supply from Fractal Design

Fractal PSU

Power On in SilenceThe ION+ 2 Platinum is a high-performance premium fully modular power supply, with whisper quiet operation, enhanced cable flexiblity and superior output quality. It ships with two 8-pin ATX12V/EPS cables, ensuring compatibility with new motherboards. This incredible power supply incorporates a user selectable semi-passive Zero RPM mode to enable silent operation under low load, whilst the custom-tailored 140mm fan with FDB bearings stays practically whisper-quiet even under demand. The ION+2 Platinum also features revolutionary UltraFlex cable with incredible high strand count wire and special insulation allowing your cables to bend and twist with ease making installation, maintenance and cable routing and absolute breeze. Ion+ 2 Platinum is available in 560, 660, 760 and 860 watt capacities, all with 80PLUS® Platinum Efficiency, 10-year warranty, and a full electrical protection suite for peace of mind.

860WCapacity

80+ PlatinumEfficiency Rating

ATXForm Factor

Revolutionary UltraFlex Cables

Ultra-High Strand Count

Specially formulated insulation

4K Recording

Effortless Cable Routing

Flexible Connections in tight spaces

Cables that Work with you not againstFractal Design UltraFlex DC wires have game-changing flexibility for effortless cable-routing and connectors that twist and bend to fit your installation—not fight it

Custom-Tailored Brilliance

back

140mm Dynamic Series FanThe Ion+ Platinum comes equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan that offers exceptionally low minimum speed as well as true long-life Fluid Dynamic Bearing.

Zero RPM ModeUser selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling. Allowing you to power onwards with minimal distractions.

Outstanding Efficiency Through Incredible Build Quality

4K Recording

80+ Platinum Efficiency

Premium Japanese 105°C capacitors

Extensive 10-year warranty

More Power, Less HeatThe Ion+ Platinum is rated 80 PLUS® Platinum Efficiency for its ability to offer electrical output of the highest quality, while generating as little heat as possible. Quality components consistently deliver tight voltage regulation with low ripple and noise.

Specifications
Size ATX
Edition Ion+ 2 Platinum
Wattage 860 W
80 PLUS Certification 80 PLUS Platinum
Max. Efficiency (at 230Vac)
Cooling Fan
Fans 1 x 140mm
Internal +12V Rails Single Rail
Rail 1 +12V 71.6 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 71.6 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 4+4-pin CPU +12V (EPS)
  • 4 x 4-pin Molex
  • 6 x 6+2-pin PCIe
  • 10 x SATA
Dimensions 150 x 86 x 150 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN115829
Model Number FD-P-IA2P-860
GTIN 2110288701018
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Fractal Design
