Corsair AX860 860W Full Modular Power Supply/PSU

860W Corsair AX860, Full Modular, 80PLUS Platinum, SLI/CrossFire, Single Rail, 71.6A, 120mm Fan, ATX PSU

MORE INFO
MORE INFO
Thumbnail 1 : Corsair AX860 860W Full Modular Power Supply/PSU Thumbnail 2 : Corsair AX860 860W Full Modular Power Supply/PSU Thumbnail 3 : Corsair AX860 860W Full Modular Power Supply/PSU Thumbnail 4 : Corsair AX860 860W Full Modular Power Supply/PSU
Scan code: LN47808 Manufacturer code: CP-9020044-UK
3xs Approved
RRP: £189.98
£159.98
Add To Basket
In stock
From £14.37 / month (APR 14.9%)
Monthly Payment: £27.76
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £159.98
Total inc. interest: £166.57
Monthly Payment: £14.37
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £159.98
Total inc. interest: £172.34
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 19th Feb 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

AX860 - Corsair Power Supply - Fully Modular ATX PSU

Corsair AX860 Power Supply 80PLUS - Platinum

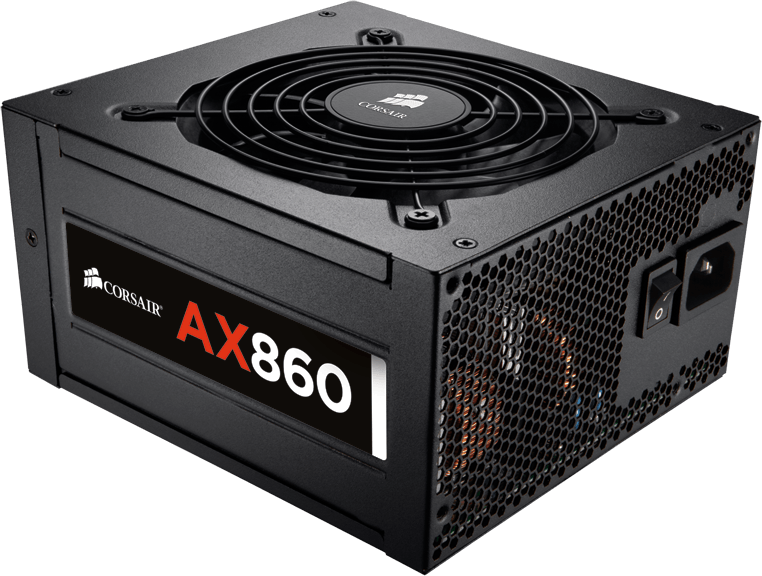

Corsair AX 860W Power Supply

The AX860 offers ultra-clean power delivery for protecting your PC’s critical components. The efficient design uses less power and operates silently at low to medium loads, and the fully modular cable set helps make installation fast and easy, with better-looking results. This PSU has an efficiency rating of 80PLUS Platinum meaning there is less heat generation and lower energy costs.

View other AX power outputs:
AX760

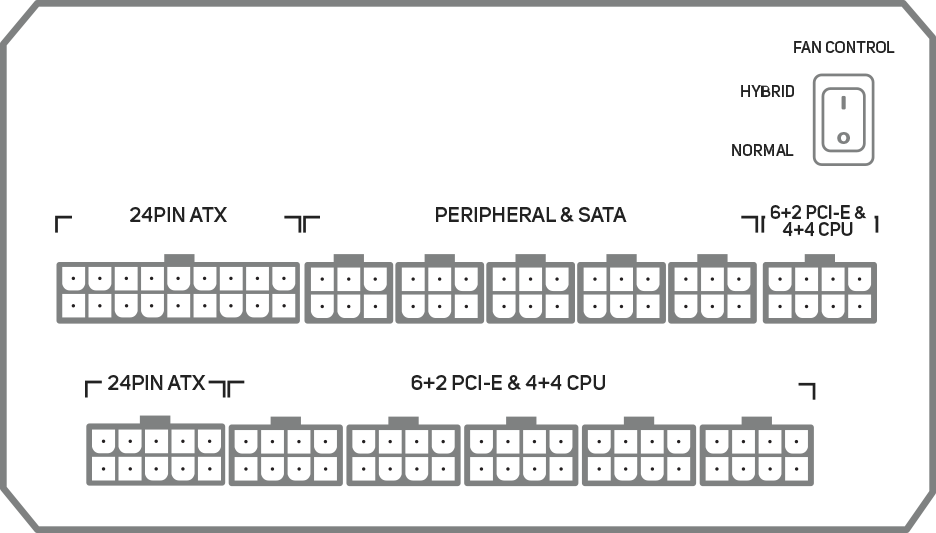

Fully Modular Connectivity

Connections

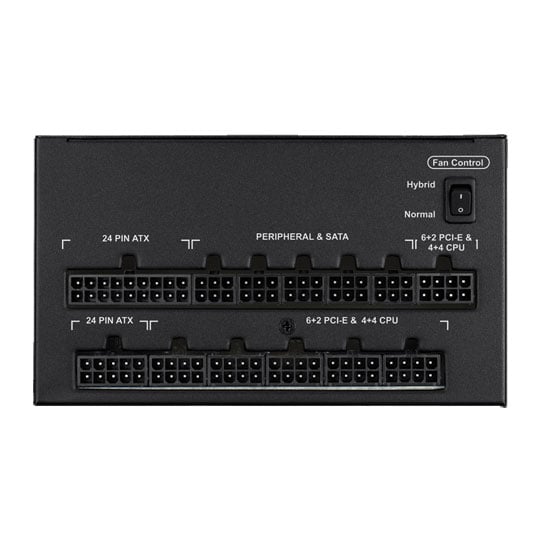

AX Fully Modular Cable Design

The easy to install, fully modular setup on the Corsair AX860 allows you to combine the low-profile cables provided for a great-looking build. High-quality components and careful design help ensure maximum protection for your PC’s components.

AX860 Efficiency & Noise Graphs

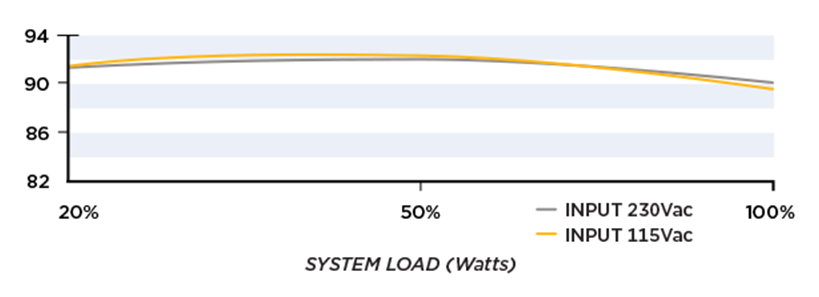

AX860 EFFICIENCY

Efficiency Graph

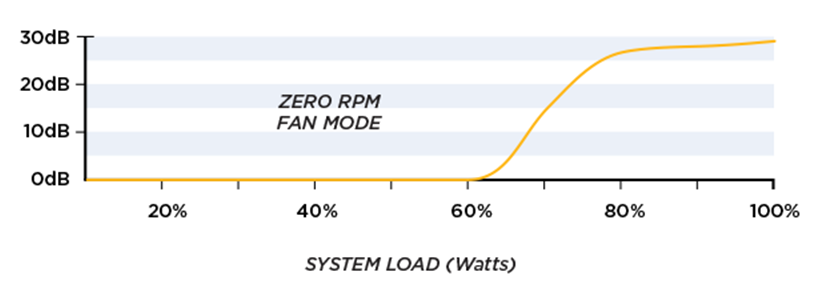

AX860 FAN NOISE

Noise Graph

Corsair AX860 Output Power Chart

Corsair AX860 Digital ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 11 - 5.5A Max Load 25A 25A 71A 0.5A 3.0A
Frequency: 50Hz - 60Hz Maximum Combined Wattage 125W 858W 6W 15W
  Total Power: 860W

Corsair AX860 Key Features

80PLUS - Platinum

80 PLUS Platinum CertifiedPlatinum certification ensures high efficiency for less excess heat & lower operating costs.

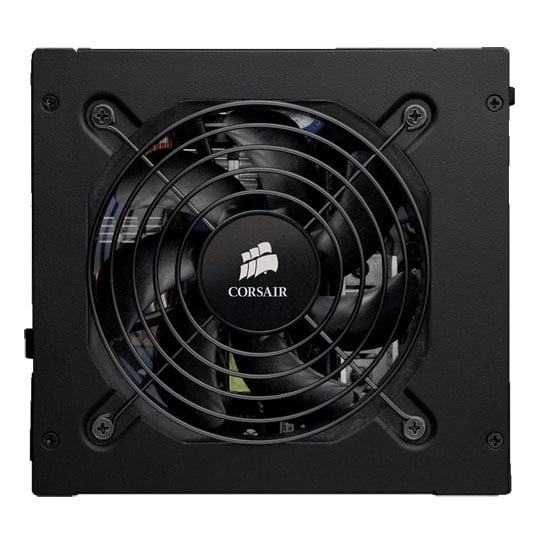

Zero Fan Mode

Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.

Specifications
Size ATX
Edition AX860
Wattage 860 W
80 PLUS Certification 80 PLUS Platinum
Max. Efficiency (at 230Vac) 92 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 71.6 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 71.6 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 4+4-pin CPU +12V (EPS)
  • 2 x 4-pin FDD Power
  • 8 x 4-pin Molex
  • 6 x 6-pin PCIe
  • 12 x SATA
Dimensions 150 x 86 x 160 mm (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
84 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
84 months
Manufacturer Contact Details
Telephone:
0871 472 4747
