End Of Life
Scan code: LN83872 Manufacturer code: SSR-850FX

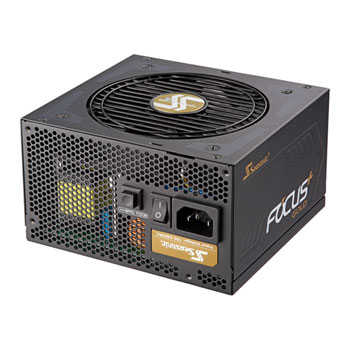

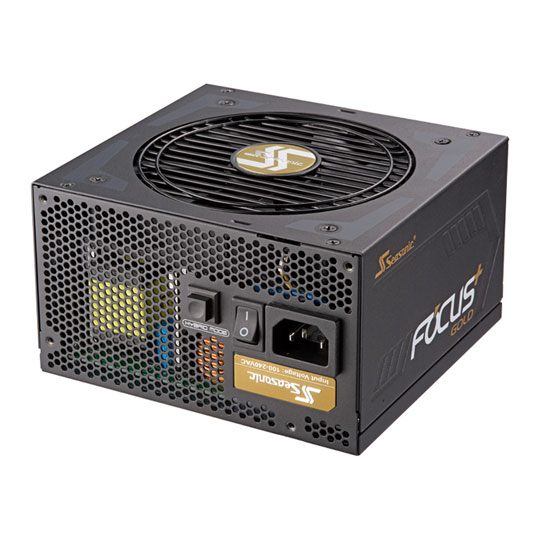

Seasonic Focus Plus+ 850 Watt Gold Modular PSU/Power Supply

850W Seasonic FOCUS Plus Gold, Full Modular, 80PLUS Gold, SLI/CrossFire, Single Rail, 70A, 120mm Fan, ATX PSU

Thumbnail 1 : Seasonic Focus Plus+ 850 Watt Gold Modular PSU/Power Supply Thumbnail 2 : Seasonic Focus Plus+ 850 Watt Gold Modular PSU/Power Supply Thumbnail 3 : Seasonic Focus Plus+ 850 Watt Gold Modular PSU/Power Supply Thumbnail 4 : Seasonic Focus Plus+ 850 Watt Gold Modular PSU/Power Supply
Scan code: LN83872 Manufacturer code: SSR-850FX
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

850W Seasonic Focus Plus Gold

850W Seasonic Focus Plus Gold 80PLUS - Bronze

Focus Plus 850 Gold

This high-wattage unit boasts ultra-high 80 PLUS® Gold efficiency which achieves 90% efficiency at 50%; system load. Due to its small size the Focus+ Gold power supply is a great solution for smaller computer cases in the living room for instance. This power supply is not only small, but mean too. It boasts the highest power density in its class and it also has remarkable output characteristics during operation. The technologies applied and the components and materials used in the manufacturing of the FOCUS+ Gold 850 are in line with Seasonic’s highest standards.

Fluid Dynamic Fan Bearing

Fluid Dynamic Bearing

High Performance Fan Bearings

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

Hybrid Silent Fan Control

RGB LED Lighting

Endless Colour Combinations

The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

Seasonic 850 Gold Output Power Chart

Seasonic 850W ATX Power Supply
AC Input Voltage: 100V - 240V
Current: 12A - 6A
Frequency: 50Hz - 60Hz
DC Input Rail +3.3V +5V +12V -12V +5VSB
Maximum Power 20A 20A 70A 0.3A 3A
100W 840W 3.6W 15W
Total Continuous Power: 850W
