FSP Vita BD 850W PCIE 5.1 Wired ATX3.1 PSU / Power Supply
Offer

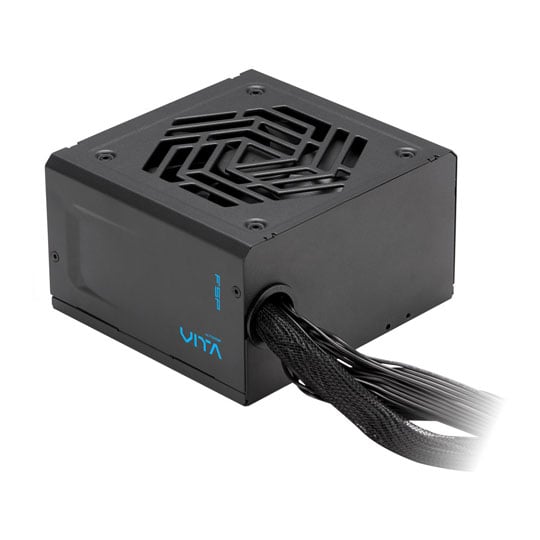

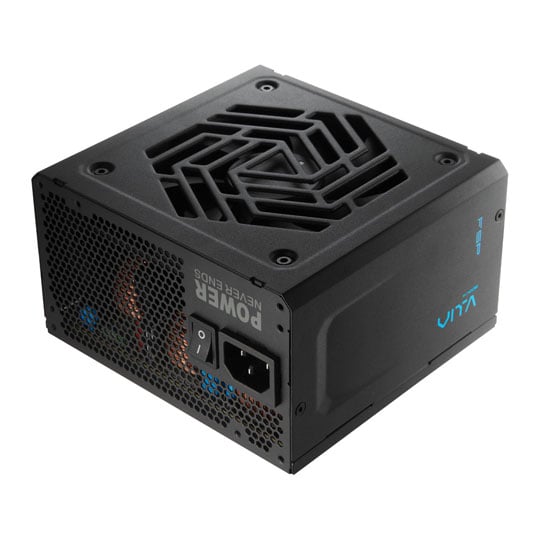

FSP Vita BD 850W PCIE 5.1 Wired ATX3.1 PSU / Power Supply
Scan code: LN163115 Manufacturer code: PPA8504500
Was: £74.99
£69.98
Add To Basket
Get it Tomorrow, 27 JunIn stock
  • Thumbnail 1 : FSP Vita BD 850W PCIE 5.1 Wired ATX3.1 PSU / Power Supply
  • Thumbnail 2 : FSP Vita BD 850W PCIE 5.1 Wired ATX3.1 PSU / Power Supply
  • Thumbnail 3 : FSP Vita BD 850W PCIE 5.1 Wired ATX3.1 PSU / Power Supply
  • Thumbnail 4 : FSP Vita BD 850W PCIE 5.1 Wired ATX3.1 PSU / Power Supply
Offer

FSP Vita BD 850W PCIE 5.1 Wired ATX3.1 PSU / Power Supply

850W FSP Vita BD, Fully Wired, PCIE 5,1 80PLUS Bronze, Single Rail, 70.83A, 120mm Fan, ATX3.1
MORE INFO
MORE INFO

Scan code: LN163115 Manufacturer code: PPA8504500
Was: £74.99£69.98
Free delivery on this item
Order in the next 1 hr 17 mins and get it tomorrow (upgrade to Saturday delivery at checkout)
Add To Basket
Get it Tomorrow, 27 JunIn stock
Pay in 3 interest-free payments of £23.33

Email me when the availability or price changes

  • By DPD On 29th Jun Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

850W VITA BD 80 PLUS Bronze ATX 3.1 Power Supply from FSP

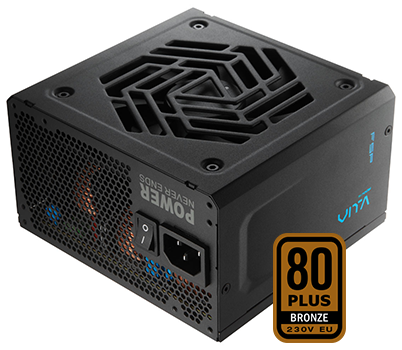

VITA BD ATX 3.1 Power Supply from FSP

Powering the Next Gen The FSP VITA BD 850W is a high-performance power supply that complies with the latest ATX 3.1 standard, supporting up to 200% power excursions. It features a robust single +12V rail, premium black flat cables, and a high-quality bulk capacitor for reliability under harsh conditions. Certified 80 PLUS Bronze, it ensures efficient, quiet operation with comprehensive protections and an optimised 120mm cooling fan, making it ideal for future hardware upgrades.

ATX 3.1 Specification

Complies with Intel® Power Design Guide ATX 3.1 VITA BD series is compatible with ATX 3.1, supporting up to 200% power excursion - and the new PCIe 12V-2x6 connector ensures peak performance with future hardware upgrades.

+5V & 3.3V DC to DC Circuit Design Increases efficiency and stabilises output voltage to ensure system stability.

80 PLUS Bronze Certified

High Efficiency Bronze-Certified Certified by world-class 80 PLUS ® 230V EU Bronze for lower power loss, less heat, and quieter operation.

Premium Bulk Capacitor

Premium Bulk Capacitor The bulk capacitor inside serves to support high temperatures and peak voltage fluctuations. It stabilises the performance for high reliability that your system can count on.

Powerful Single +12V Rail Modern CPUs and graphics cards can draw great power, especially during peak loads. A single +12V rail PSU offers a good balance of power delivery and stability.

Fortress-Level Protection

OVPOver Voltage Protection

OCPOver Current Protection

OPPOver Power Protection

OTPOver Temperature Protection

SCPShort Circuit Protection

UVPUnder Voltage Protection

SIPSurge and Inrush Protection

NLONo-Load Operation

Specifications
Form Factor ATX 3.1
Edition FSP VITA BD
Wattage 850 W
Energy Efficiency Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac) 88 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 70.8 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular Yes
Modularity Fully Wired
SLI/CrossFire No
EPS 12V No
Motherboard Connector 24-pin
Connectors
  • 1 x 12V-2x6
  • 1 x 4+4-pin CPU +12V (EPS)
  • 2 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 1 x 8-pin CPU +12V (EPS)
  • 6 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Warranty 5 Year
Additional Information
Scan Code LN163115
Model Number PPA8504500
GTIN 4711498480200
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
120 months
Manufacturer Contact Details
Manufacturer:
Lexar
