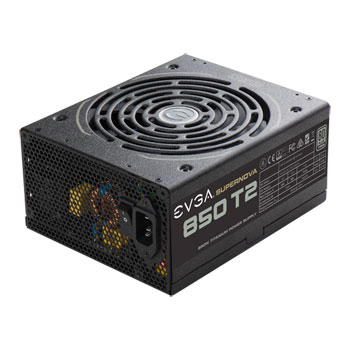

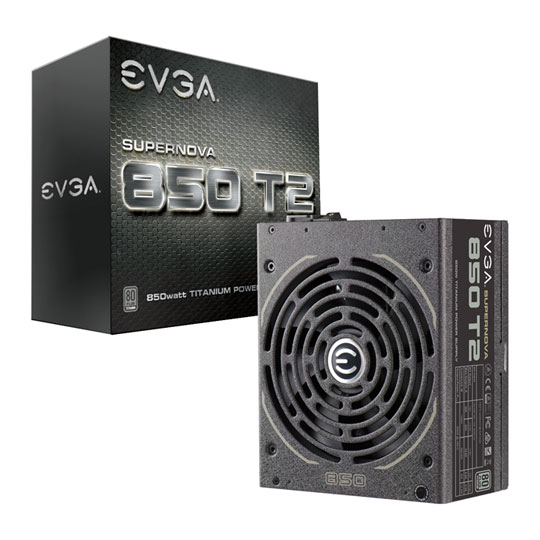

EVGA SuperNOVA T2 850 Watt Titanium Modular PSU/Power Supply
850W EVGA SuperNOVA T2, Full Modular, 80 PLUS Titanium, SLI/CrossFire, Single Rail, 70.8A, 140mm Fan, ATX PSU
EVGA 850 T2 80PLUS TITANIUM
850T2 - Nothing Beats Titanium

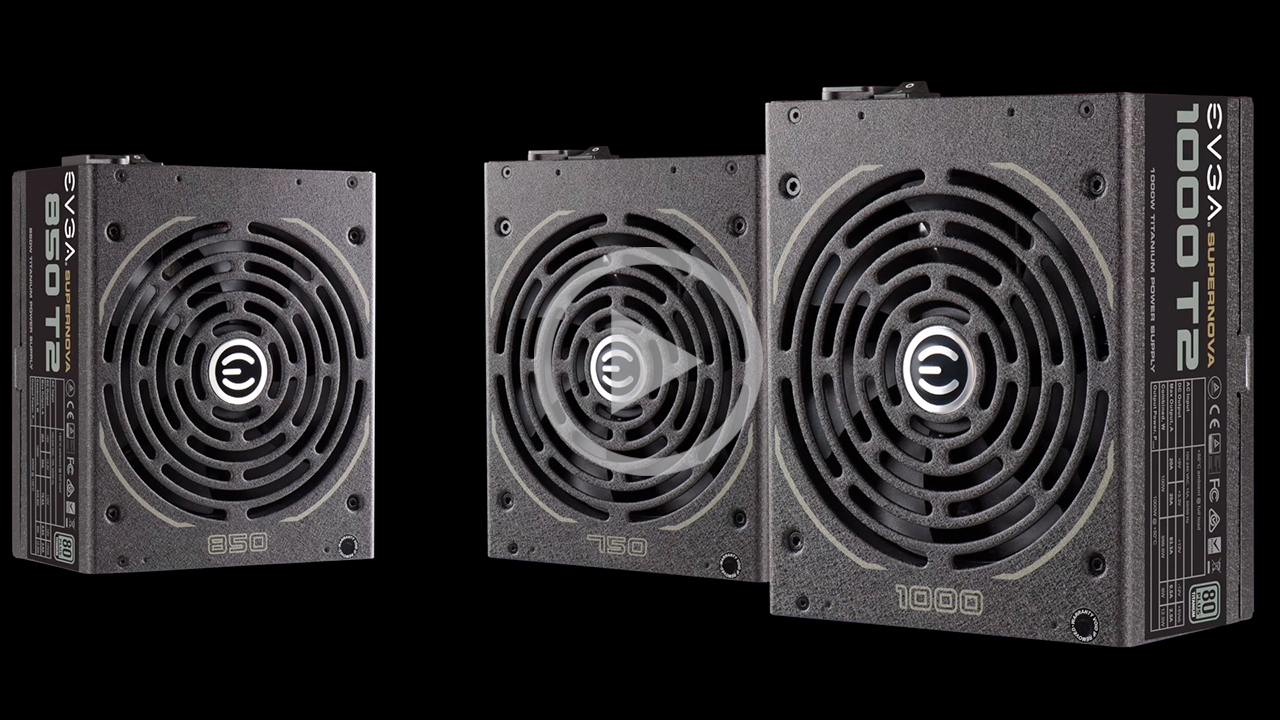

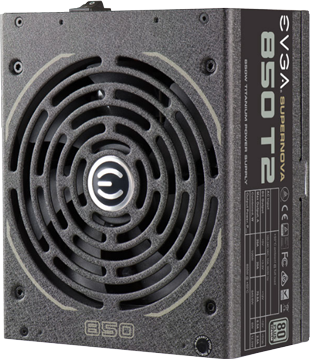

EVGA SuperNOVA T2 power supplies offer unmatched efficiency and performance with the Titanium series, second only to higher classes of themselves (i.e. EVGAs 1000 T2 or the 1600 T2). The 850 T2 Titanium is capable of powering high-end systems with ease. It measures at 85mm (H) x 150mm (W) x 180mm (L) meaning it will fit into most cases, though it may be a tight fit in the smaller selection. The fan size is relatively large at 140mm, with a double ball-bearing set-up. Uisng a +12V single rail and an ECO Mode switch means the Titanium 850 has a rating of 70.8 amps and a 94%+ in efficiency!
850T2 POWER CHART
| AC Input |
| DC Output |
| Max Output |
| Combined |
| Output |
Large 70.8 amp single + 12V Rail 100 - 240 VAC / 10A / 50 - 60Hz |
||||
| +3.3V | +5V | +12V | +5Vsb | -12V |
| 20A | 20A | 70.8A | 2.5A | 0.5A |
| 100W | 849.6W | 12.5W | 6W | |
| 850W @ +50C Industrial grade testing all load and regulation testing done at 50C |
||||

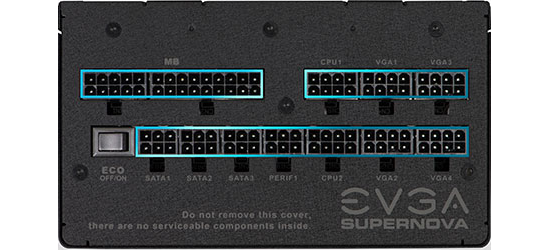

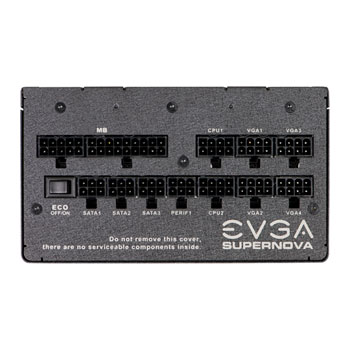

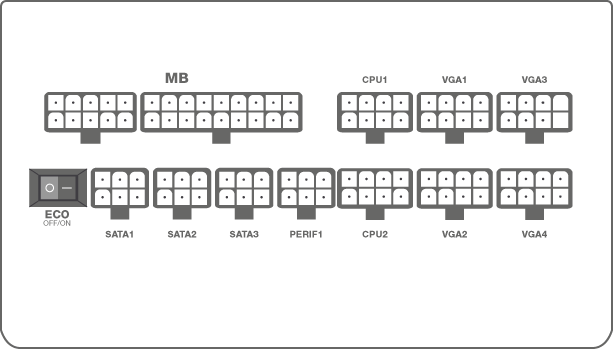

CONNECTIVITY
Standard ATX Form Factor
Will fit most mATX / ATX / EATX / HPTX & XLATX cases
Eco Mode
Fan does not switch on until PSU load is above 45°

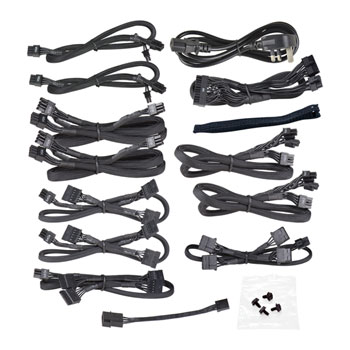

Fully Modular Cabling
Fully Modular to reduce clutter and improve airflow

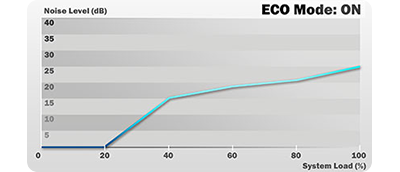

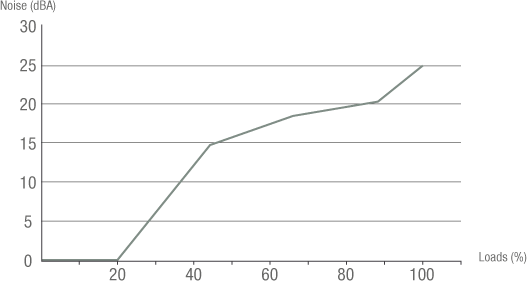

FAN NOISE CHART
SuperNOVA 850 T2
(Eco ON)
HARDWARE PROTECTION
While being silent, this entire series has a large single 12volt rail, providing plenty of power to fuel all of your hardware. And lastly, because power without safety is pointless, a full suite of top tier circuit protections have been added to keep you running strong and more importantly keeping your hardware safe.
OVP
(Over Voltage Protection)
OPP
(Over Power Protection)
UVP
(Under Voltage Protection)
SCP
(Short Circuit Protection)
OCP
(Over Current Protection)
OTP
(Over Temperature Protection)
FEATURES
Single +12V Rail
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.
LLC Resonant Circuit Layout
Full DC to DC, LCC resonant circuit design improves efficiency.
Double Ball Bearing Fan
A high-quality dual ball bearing fan gives the SuperNOVA 850 T2 an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.

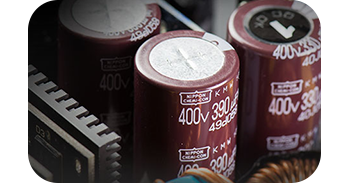

Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors
Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.
NVIDIA SLI Ready
Run multiple NVIDIA graphics cards for the ultimate gaming experience. The SuperNOVA 850 T2 gives you the power you need to drive these demanding systems and achieve the best overclocks.
Fully Modular
Fully modular designs allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximise case airflow.

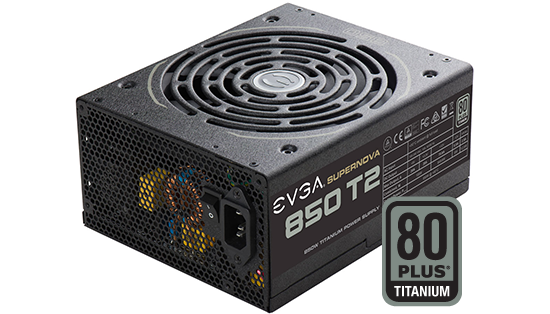

80PLUS TITANIUM Efficiency
80 Plus certification ensures your power supply isn’t wasting power and turning it into exess heat. Under typical load this power supply is 94% efficient or higher.
