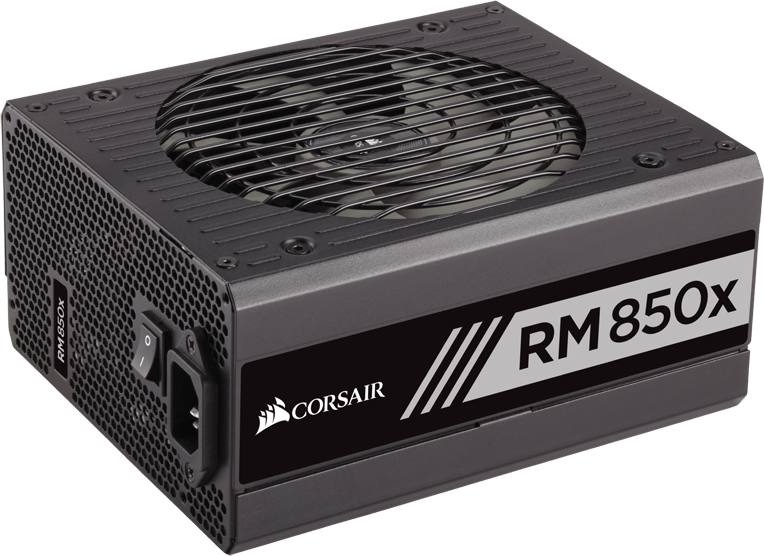

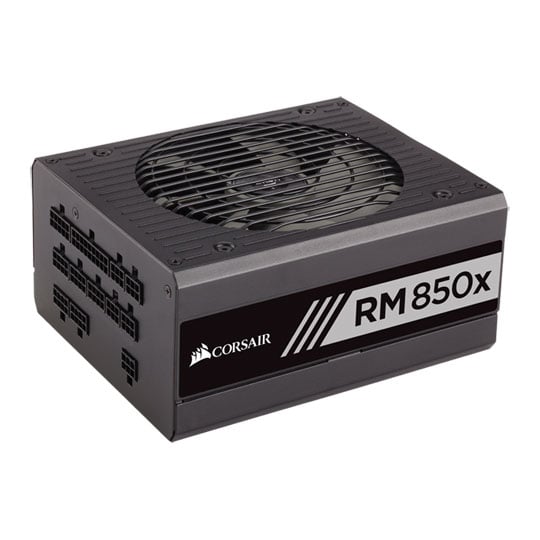

Corsair 850 Watt RMx Fully Modular RM850X ATX PSU/Power Supply

850W Corsair RM850x Series, Full Modular, 80PLUS Gold, SLI/CrossFire, Single Rail, 70.8A, 135mm Fan, ATX PSU

Corsair
Scan code: LN67195 Manufacturer code: CP-9020093-UK Request call
£119.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
review High End
Delivery options £5.48 By DPD On 20th Oct 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

RM850x - Corsair Power Supply - Fully Modular ATX PSU

Corsair RM850x Power Supply 80PLUS - Gold

Corsair RMx 850W Power Supply

This version of the RMx Series power supplies from corsair comes white a total power output of 850W. The RM850x gives you extremely tight voltage control with near quiet operation. The 80PLUS GOLD rating on this PSU reduces operating costs and excess heat. The Zero RPM fan mode ensures virtual silence at low and medium loads. It also features a fully modular cable set, these DC cables makes building and upgrading your PC easier and leaves it looking great.

View other RMx power outputs:
RM550x - RM650x - RM750x - RM1000x

Fully Modular Connectivity

Connections

RMx Fully Modular Cable Design

The fully modular design of the RMx power supply means that during your build you can mount the PSU in the case first and then attatch only the cables you need, making builds and upgrades easy with great looking results.

RM850x Efficiency & Noise Graphs

RM850x Efficiency

Efficiency Graph

RM850x Fan Noise

Noise Graph

Corsair RM850x Output Power Chart

Corsair RM850x Fully Modular Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 13A - 6.5A Max Load 25A 25A 70.8A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 150W 850W 9.6W 15W
  Total Power: 850W

Corsair RM850x Key Features

80PLUS - Gold

80 PLUS Gold CertifiedGold certification ensures high efficiency operation for less excess heat and lower operating costs.

Japanese Capacitors

Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.

Zero Fan Mode

Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.

10 Year Warranty

Ten Year WarrantyYour guarantee of reliable operation that will last across several system builds.

Specifications
Size ATX
Edition RM850x
Wattage 850 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency 92 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 70.8 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 70.8 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 4+4-pin CPU +12V (EPS)
  • 8 x 4-pin Molex
  • 6 x 6+2-pin PCIe
  • 2 x FDD Power
  • 10 x SATA
Dimensions 150 x 86 x 180 mm (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Return to base
RTB Period:
120 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
TekSpek Guides
PSUs (Power Supply Units)
PSUs (Power Supply Units)
Date Issued: 4th Jul 2011

Let's face it, power-supply units (PSUs) are boring. Presented in what's usually a mundane box spitting cables from one end, this is a product that's neither aesthetically pleasing nor technically interesting to the majority of self-builders.

Read More

80 Plus certification
80 Plus certification
Date Issued: 18th Nov 2010

Conceived back in 2004 and brought to market just a year later, the 80 PLUS initiative is one of many standards introduced in an effort to increase energy efficiency in modern technology. Targeting computer power supplies, it awards PSUs that are able to achieve an energy efficiency of over 80 per cent at varying workloads and a power factor of 0.9 or more at 100 per cent load.

Read More

Green computing at home
Green computing at home
Date Issued: 20th Nov 2008

This TekSpek explains what Green Computing is, what it means to the consumer, and how energy-efficient components can be beneficial in the home.

Read More

Reviews
850W Corsair RM850x Series, Full Modular, 80PLUS Gold, SLI/CrossFire, Single Rail, 70.8A, 135mm Fan, ATX PSU is rated 4.2 out of 5 by 5.
Rated 5 out of 5 by from Very efficient This unit has excellent build quality. The PSU runs very cool and below 425watts of power draw, the fans do not spin. Good cabling. Efficiency, as many reviews will point out, is between 93% to 91% - so one of the best Gold certified PSUs. A decent warranty period and overall well worth purchasing.
Date published: 2017-06-21
Rated 5 out of 5 by from Ideal PSU for self builds This Power Supply is fully modular, and comes with all cables and easy to follow guide. I fitted this to an existing build in about 20 minutes and was very happy with the final result. The long cables made it easy to tuck them away, maintaining a good airflow throughout the case.
Date published: 2016-06-01
Rated 4 out of 5 by from Good, quiet power supply. Bought as replacement for a faulty XFX Pro. This power supply is quiet and efficient, haven't noticed any buzzing or other undue noises coming from it as mentioned in other reviews. The supplied cables are all decent lengths, easily enough to manage around all but the larger cases. It's unreasonable to ask for individually sheathed cables to come supplied, but rather than a mix of fully sheathed and flat, I would have preferred all flat-type cables personally. The sheathed cables (24-pin, CPU, PCIe) are my only real gripe with this purchase. The end seals for the sheathing are longer than is strictly necessary, thick and immobile; which makes cable management and connection to the motherboard especially kind of awkward if you're looking for cleanliness or tighter bends near the socket. If you're looking for uniformity, easier cable management or just cleaner lines for those tighter spaces; by all means buy this excellent PSU. Just make sure you buy a set of cables separately.
Date published: 2016-01-24
Rated 5 out of 5 by from good product at good price good product at good price, nice nice nice nice nice
Date published: 2015-12-15
Rated 2 out of 5 by from It buzzes it really shouldn't buzz. I am just going to repeat myself for the minimum word count. it really shouldn't buzz.
Date published: 2015-11-17
