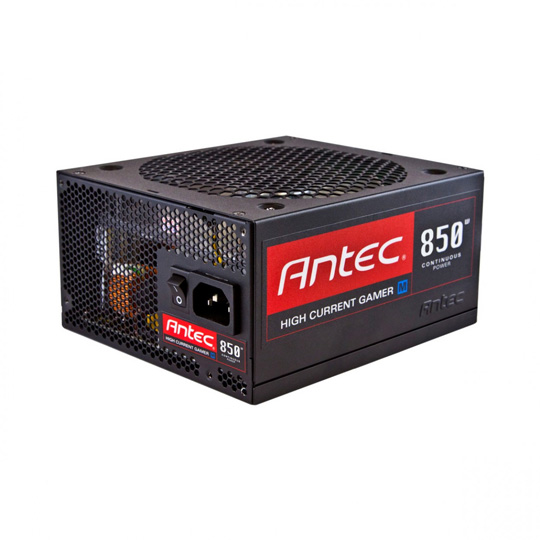

Antec Hybrid Modular Gamer HCG-850M Power Supply 850W

850W Antec HCG-850M, 80 PLUS Bronze, Hybrid Modular, SLI/CrossFire, Dual (2) Rail, 80A +12V, 1x135mm Fan, ATX PSU

Antec
Scan code: LN55070 Manufacturer code: 0-761345-06225-1 Request call
£87.49
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 31st May 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Antec’s HCG M power supplies are the perfect combination of power and efficiency. The HCG M features special heavy-duty High Current connectors and cabling that supply extreme levels of power, and superb efficiency thanks to 80 PLUS® BRONZE certification and Active PFC. HCG M’s innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins. Highest-quality connectors, Japanese-brand capacitors, and a quiet 135 mm LED double ball bearing fan complete the package. CircuitShield™ makes the HCG-850M safe and reliable in any environment with its nine industrial-grade protections. If loads of power, High Current engineering and extreme efficiency are what you’re after, the HCG M is the PSU for you. Features • 850W Continuous Power - Guaranteed 850W of Continuous Power from Antec
• 80 PLUS® BRONZE certified - Up to 88% efficient, to reduce your electricity bill
• AQ5 - Antec Quality 5 year warranty and lifetime global 24/7 support
• 16-pin Socket - Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
• 135 mm LED DBB Silence - Whisper-quiet high-quality LED double ball bearing fan with long lifetime
• Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
• High Current Rails - 2 +12V rails with high load capabilities ensure maximum CPU & GPU compatibility
• 98.8% +12V - Output for maximum CPU & GPU support
• Multi PCI-E - 4 PCI-E connectors for multiple GPU support
• NVIDIA SLI®-Ready & AMD Crossfire certified - Tested & certified by NVIDIA® for SLI® & AMD for Crossfire systems
• CircuitShield™ - Full suite of industrial grade protections:
- Over Current Protection (OCP),
- Over Voltage Protection (OVP),
- Under Voltage Protection (UVP),
- Short Circuit Protection (SCP),
- Over Power Protection (OPP),
- Over Temperature Protection (OTP) & Surge & Inrush Protection (SIP)
• Japanese Heavy-Duty Caps - High-performance Japanese capacitors ensure tightest DC stability and regulation
• Stealth Wires - All wires darkened for minimal visibility in chassis
Specifications
Size ATX
Edition
Wattage 850 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency 85 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Dual Rail
Rail 1 +12V 40 A
Rail 2 +12V 40 A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 80 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 6 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 1 x 8-pin CPU +12V (EPS)
  • 1 x FDD Power
  • 9 x SATA
Dimensions 150 x 86 x 170 (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
60 months
Manufacturer Contact Details
Customers also bought
Reviews
850W Antec HCG-850M, 80 PLUS Bronze, Hybrid Modular, SLI/CrossFire, Dual (2) Rail, 80A +12V, 1x135mm Fan, ATX PSU is rated 1.0 out of 5 by 1.
Rated 1 out of 5 by from Not the best Power supply stopped working after 2 days. Not impressed for the price tag. Had to return for refund so i could buy a replacement. Scan resolved without delay.
