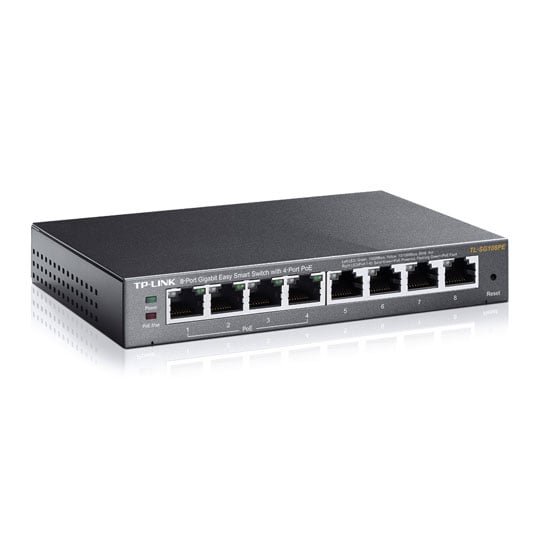

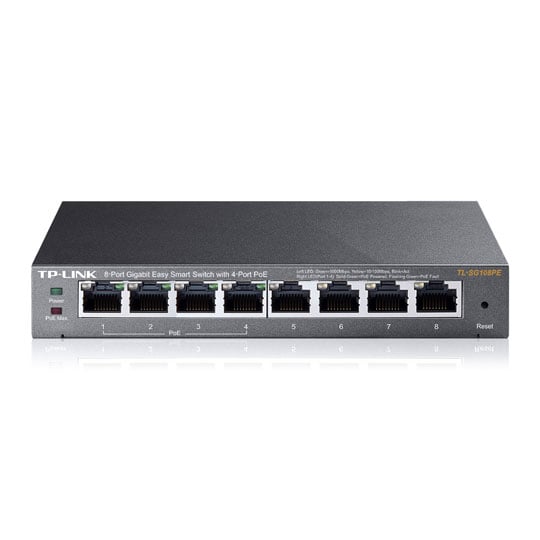

TP-LINK 8 Port Gigabit 4 PoE Easy Smart Desktop Switch TL-SG108PE
8 Port TP-LINK TL-SG108PE, Gigabit Easy Smart Switch with 4-Port PoE, 8x 10/100/1000 RJ45 Ports, Upto 55W for PoE
Power Over Ethernet
4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.
Easy to Use
TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis. Features • 8 10/100/1000Mbps ports provide instant large file transfers.
• Equipped with 4 802.3af PoE ports with up to 15.4W for each port.
• Supports PoE power up to 55W for all PoE ports.
• IEEE 802.3x flow control provides reliable data transfers.
• 15KB Jumbo frame improves performance of large data transfers.
• Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics.
• Port/802.1p/DSCP QoS enable smooth latency-sensitive traffic.
• Abundant VLAN features improve network security via traffic segmentation.
• IGMP Snooping optimizes multicast applications.
• Web-based user interface and Easy Smart Configuration Utility simplify configuration.
|Total Network Ports||4 x 10/100/1000 (Gigabit) RJ-45|
|PoE Support Type|
|No. of Ports Providing PoE||4 x 10/100/1000 (Gigabit) RJ-45|
|Other Non-Network Ports|
|MAC Address Table Size|
|Built-in Flash Memory||1.5MB|
|Max. Power Consumption||65.2 W|
|Max. PoE Wattage per Port|
|Mean Time Between Failures (MTBF)|
