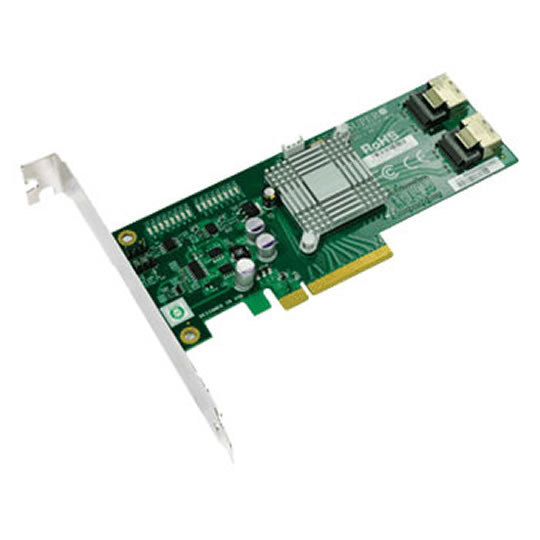

Supermicro 8-Port SAS/SATA Card

8 Port Supermicro SAS/SATA Card - (AOC-SAS2LP-MV8)

Supermicro
Scan code: LN43925 Manufacturer code: AOC-SAS2LP-MV8 Request call
End Of Life
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Product Overview Supermicro's SAS2LP-MV8 controller (based on the Marvell 9480 host controller) provides 8-port SAS/SATA HDD support via PCI-E by 8 bus interface with high-performance features. Serving as a 3rd generation SAS/SATA storage card, the AOC-SAS2LP-MV8 offers double the data transfer rate of its 1st generation counterpart and offers functionalities for server, workstation and network storage environments in a low-profile PCI platform.

The SAS2LP-MV8 is ideal for storage arrays for Network Attached Storage (NAS) and Nearline Backup. Built with superior quality and features, the SAS2LP-MV8 will become an integral part of today's data storage solutions.

The SAS2LP-MV8 Installation CD contains drivers for Microsoft Windows and RedHat/SuSE/Fedora Linux operating systems.
Features • 8-channel SAS/SATA adapter with 600MB/s per channel
• PCI-E x8 interface
• JBOD mode only. No RAID support
• Dimension: 6.6" (length) x 2.7" (width)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
scan
TekSpek Guides
System Buses & Bandwidth
System Buses & Bandwidth
Date Issued: 21st Oct 2008

In computing terms, system buses are used to connect various components to the motherboard’s core logic and, often, to each other. Modern PCs run with a multitude of high-speed buses ranging from the interconnects between, say, the chipset and the CPU, graphics card, memory, and peripherals.

Read More

Setup XP with a RAID driver
Setup XP with a RAID driver
Date Issued: 20th Oct 2008

When installing Windows XP, most of the time you’ll find that it has the basic drivers it needs to install itself. However, sometimes you might need to intervene. This tends to be the case if you have a special type of storage, such as Serial ATA or a RAID device.

Read More

PATA -vs- SATA
PATA -vs- SATA
Date Issued: 2nd Jul 2008

Serial ATA, or SATA, is a relatively new storage technology that is now being adopted in computers. It is the successor to Parallel ATA. SATA allows for faster transfers between the hard disk and the system, uses thinner cables and is easier to physically install

Read More

RAID
RAID
Date Issued: 14th Jun 2008

In this guide we will be examining a popular method used for increasing the performance and reliability of your hard drives and data storage

Read More

Gigabytes and Gibibytes
Gigabytes and Gibibytes
Date Issued: 23rd Aug 2005

If you've used a computer for any duration of time you'll have come across the terms “kilobyte, megabyte, gigabyte” and so on. Then there's “kilobit, megabit and gigabit” to add a bit of confusion and to top it all off you've maybe heard or read terms like “gibibyte” on occasion.

Read More

Reviews
Questions & Answers
(2 Questions : 2 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


Has staff answer

1 answer

8 ports ?

this is described as a 8 port card
i can see the two at the end, but where are the other six?
taa
Age: 55 to 64
Gender: Male
1 year, 11 months ago
Customer avatar
by
rotherham
Read all my Q&A

Please wait while more information about bobjimwhit is loaded.
Additional information about bobjimwhit could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
The two ports are 2 x SAS SFF-8087, each port supports 4 SATA devices, using a SFF-8087 to SATA Fanout SAS cable.
1 year, 11 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about ChrisP is loaded.
Additional information about ChrisP could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
1 year, 11 months ago
Customer avatar
by
Dublin, Ireland
Read all my Q&A

Please wait while more information about RaidBuyer is loaded.
Additional information about RaidBuyer could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Hi it comes with a half size bracket attached and a full size one in the box. Just need to unscrew the two screws holding the half size on and then screw the full size one on if you want to swap them. Simple to do :)
Age: 18 to 24
Gender: Male
1 year, 10 months ago
Customer avatar
by
Wales, UK
Read all my Q&A

Please wait while more information about Danny91 is loaded.
Additional information about Danny91 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
