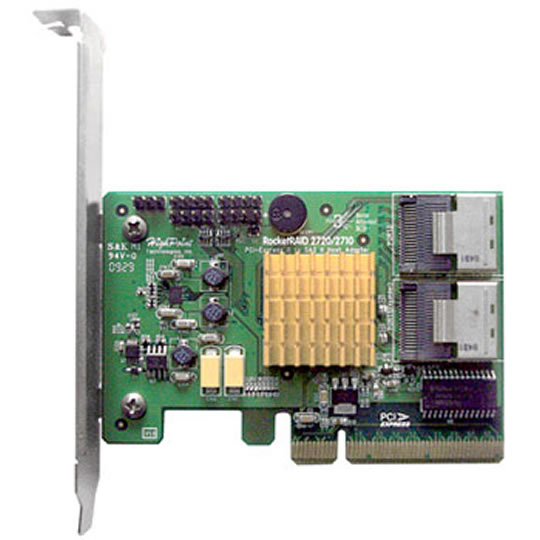

Highpoint SAS/SATA 6Gb/s 8 Port RAID Controller Highpoint RocketRAID RR2720SGL Cables not Included

8 Port Highpoint RocketRAID 2720SGL(RR2720) Internal PCI-e 2.0 x8 to SAS/SATA III RAID controller OEM

Highpoint
Scan code: LN40239 Manufacturer code: RR2720SGL Request call
£172.49
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview ***This card is provided without SAS/SATA cables***

HighPoint RocketRAID 2700 HBA’s are cost-effective, high-performance PCI-Express 2.0 6GB/s SAS RAID controllers, and are ideal for SMB server and workstation configurations.

RocketRAID 2700 HBA’s are fully backwards compatible with SAS/SATA 3Gb/s devices, PCI-Express 1.0 and 2.0 motherboards, and are compliant with all major operating systems including Windows, Linux and FreeBSD

Features

PCI-Express Bus 2.0 x8
Port Count 8 Internal
Connector Type SFF-8087 Mini-SAS
RAID Level 0, 1, 5,10, 50, JBOD
Form Factor Low Profile
Alarm/Buzzer Yes
Activity/Fail LED Yes
Dimensions 3.79" L x 2.55" H Features Maintenance and Management Settings

RAID Array Roaming
Unplug/Remove RAID array
Hot key (ctrl-h) boot-up RAID manager via BIOS
Firmware update while running the Operating System
Verify RAID Array for Bad Sectors and Parity Check
Task Scheduler
Automatic RAID rebuild
Automatic drive (insert / removal) detection
Hot Spare Disk
Staggered Drive Spinup
Rebuild Priority (Low - Highest)
Spin Down Idle Mode
Hot Swap and Hot plug
Bad sector repair and remapping to reduce dropped drives
Multiple RAID array
Multiple Logical Drive
64bit LBA support greater than 2TB per volume

RAID Monitoring Tools

SMTP for email notification
Alarm / Buzzer alerts for drive failure
SES-2 enclosure management (Failed, SMART (SHI))
Enclosure management support I2C
Hard Drive LED indicators (Activity and Failed)
SHI (Storage Health Inspector – Drive analysis from S.M.A.R.T)
Event Log

RAID Management Suite

Command Line Interface (CLI)
Web browser-base RAID management software
API
Specifications
Specifications
Ports Total 2 Port
Ports Internal 2 Int Ports
Ports External
Connectors 2 x Mini SAS
Interface PCIe 2.0 x8
JBOD Yes
RAID Support
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
  • RAID 50
  • RAID 6
Low Profile Compatible Yes
Cables Inc.
Cache Memory
Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Reviews
Rated 4.8 out of 5 by 4 reviewers.
Rated 5 out of 5 by Very good RAID controller card I have found this controller card to be very easy to install and set-up. It offers flexible options for configuration. NOTE: this card does support RAID6 though not from the BIOS. To install a RAID6 array you must set-up the array within Windows. P.S. support is pretty good as well. 07 December 2015
Rated 4 out of 5 by Good Product - Good Support from Vendor. A little pricy, but you are unlikely to find a better option for this money. Instant initialize was great and transfer of data is significantly better than an onboard solution like Intel RST which was previously in place. 28 November 2015
Rated 5 out of 5 by Great value for money The Highpoint RocketRAID 2720SGL represents great value for money in my view; it's easy to set up and use, is reliable and has greater flexibility than the HP RAID controllers (such as the HP P410) with regards to working in many different motherboards. This is the second one I've bought and I really rate them; this is the card I'd use if I wanted to add a RAID array to a non server motherboard. 13 August 2015
Rated 5 out of 5 by Does what it says on the tin Bought this to go in my Silverstone DS380 case so I could have a 6-drive RAID6 plus a couple of spare slots. Plugged it in to the mobo and the backplane, loaded the drivers and web interface and there it was. Only problem was that RAID6 is not available from the card's BIOS, only from the web interface and the BIOS then can't see the RAID. I don't know if this means more work is offloaded to the CPU or not. Apart from that, it's working just as I'd hoped, handling loads of 3TB WD Reds. Recommended if you need the capacity but can't justify twice the price for an LSI card. 09 January 2015
  • 2016-05-20 T12:52:27.223-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_4, tr_4
  • loc_en_US, sid_40239, prod, sort_default
1-4 of 4
Questions & Answers
(1 Question : 2 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

2 answers

Technical questions on this controller

Hi,
Can 8 drives be attached this controller and seen as 8 individule drives (No Raid)?
Could 2 of these controller cards be used in the same mother board for later expansion?
Is this compatible with Windows XP OS (although I think the drives would be limited to 2TB)?

Thanks & Best Regards
Trevor
1 year, 11 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about Trev is loaded.
Additional information about Trev could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
This card doesn't support windows xp, although it will recognise 8 individual disks as a J.B.O.D just a bunch of disks and 2 cards can be used but would be limited to bandwidth on the pcie bus.
1 year, 10 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about LizN is loaded.
Additional information about LizN could not be loaded.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Answer:
Hi,

It displays drives individually and also displays the raid volumes. The display also lists the number of controller cards as 1, so I imagine you probably can run more than 1. There are no Windows XP drivers on the product page where the drivers are

http://www.highpoint-tech.com/USA_new/series_rr272x_configuration.htm

Good Luck
Age: 25 to 34
Gender: Male
5 months, 3 weeks ago
Customer avatar
by
London, UK
Read all my Q&A

Please wait while more information about Supafli420 is loaded.
Additional information about Supafli420 could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
