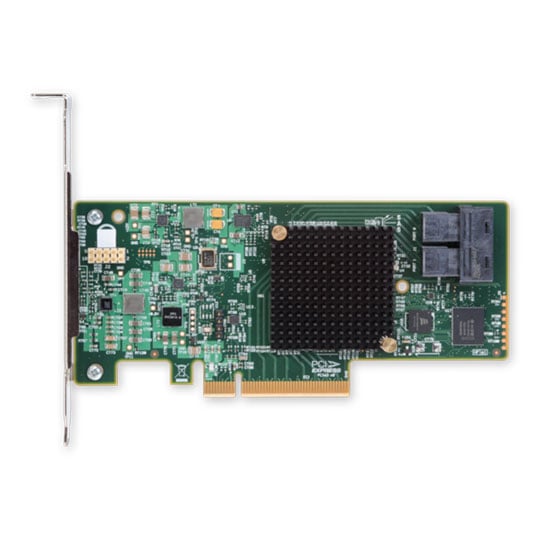

Broadcom SAS 9300-8i SG LSI00344 8 Port Host Bus Adaptor

8 Port Broadcom SAS 9300-8i Single, Internal, 12Gb/s SATA+SAS, PCIe 3.0 HBA

Scan code: LN80481 Manufacturer code: H5-25573-00
£281.99Item currently awaiting an ETA
Pre order
From £13.54 / month (APR 14.9%)
Monthly Payment: £48.94
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £281.99
Total inc. interest: £293.58
Monthly Payment: £25.32
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £281.99
Total inc. interest: £303.77
Monthly Payment: £17.46
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £281.99
Total inc. interest: £314.19
Monthly Payment: £13.54
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £281.99
Total inc. interest: £324.83
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £7.04 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Add Internal 12Gbps SAS and 6Gbps SATA Connectivity to Rack-mount Servers and Workstations
The LSI 9300-8i 12Gbps SAS Host Bus Adapter provides increased connectivity and maximum performance for high-end servers and appliances within internal storage, or connecting to large scale storage enclosures. The low-profile form factor, along with the included full-height bracket, allows for easy installation.

Features Improved Connectivity
The LSI 9300-8i is based on the SAS 3008 IO controller, integrating the latest enhancements in SAS and PCI Express technology. It supports eight PCI Express lanes that comply with the latest PCI Express 3.0 specifications. The support for both SAS and SATA drives gives flexibility in designing storage architectures and helps protect existing infrastructure investments. Now, you can easily connect to up to 1024 SAS and SATA devices with its built-in eight internal 12Gbps SAS and SATA ports.

High Performance
The LSI 9300-8i provides up to 12Gbps SAS and up to 6Gbps SATA performance across eight lanes of PCIe 3.0 connectivity. In addition, it’s also backwards compatible with previous SAS and PCIe generations through automatic negotiation, and provides SAS data transfer rates of 6Gbps and 3Gbps per lane, and SATA data transfer rates of 3Gbps per lane.

Easy Installation
The LSI 9300-8i fits into 1U/2U rack-mounted servers and workstations with a low-profile form factor (full-height bracket included.)
Specifications
Ports Total 8 Port
Ports Internal 2 Int Ports
Ports External Ext Ports
Connectors 2 x SFF-8643
Interface PCIe 3.0 x8
JBOD No
RAID Support N/A
Low Profile Compatible No
Cables Inc.
Cache Memory
Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
30 days
RTB Period:
1 months
