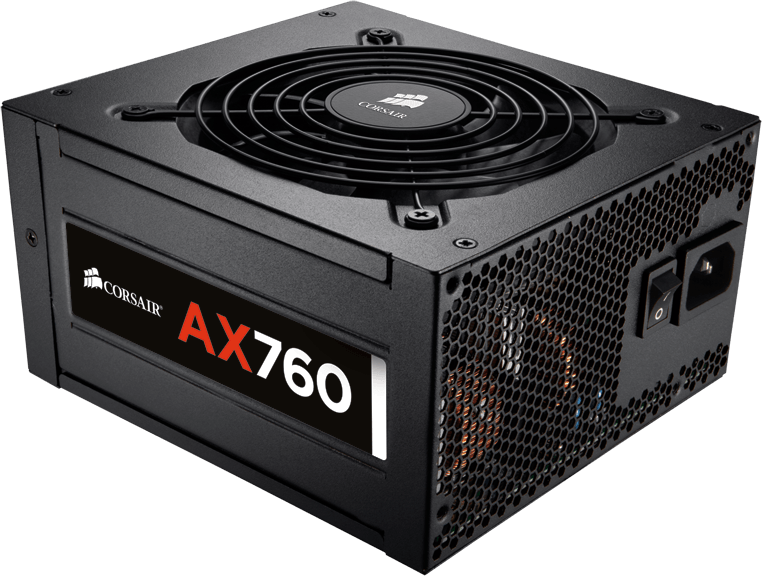

Corsair AX760 760W Modular Power Supply/PSU
760W Corsair AX760, Full Modular, 80PLUS Platinum, 63.3A +12V, 1x120mm Fan, ATX v2.31, PSU
AX760 - Corsair Power Supply - Fully Modular ATX PSU
Corsair AX 760W Power Supply
The AX760 offers ultra-clean power delivery for protecting your PC’s critical components. The efficient design uses less power and operates silently at low to medium loads, and the fully modular cable set helps make installation fast and easy, with better-looking results. This PSU has an efficiency rating of 80PLUS Platinum meaning there is less heat generation and lower energy costs.
View other AX power outputs:
AX860
Fully Modular Connectivity
AX Fully Modular Cable Design
The easy to install, fully modular setup on the Corsair AX760 allows you to combine the low-profile cables provided for a great-looking build. High-quality components and careful design help ensure maximum protection for your PC’s components.
AX760 Efficiency & Noise Graphs

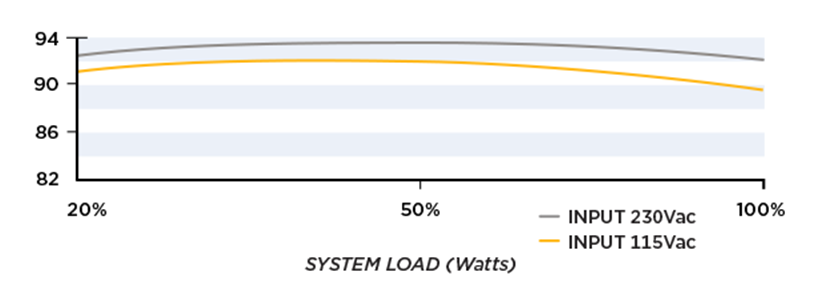

AX760 EFFICIENCY
AX760 FAN NOISE
Corsair AX760 Output Power Chart
| Corsair AX760 Digital ATX Power Supply | ||||||
|---|---|---|---|---|---|---|
| AC Input Rating | DC Output Rating | |||||
| AC Input: 100V - 240V | DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Current: 9.5 - 4.5A | Max Load | 25A | 25A | 63A | 0.8A | 3.0A |
| Frequency: 50Hz - 60Hz | Maximum Combined Wattage | 125W | 756W | 6W | 15W | |
| Total Power: 760W | ||||||
Corsair AX760 Key Features
80 PLUS Platinum CertifiedPlatinum certification ensures high efficiency for less excess heat & lower operating costs.
Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.
