Scan code: LN47992 Manufacturer code: SS-750KM3

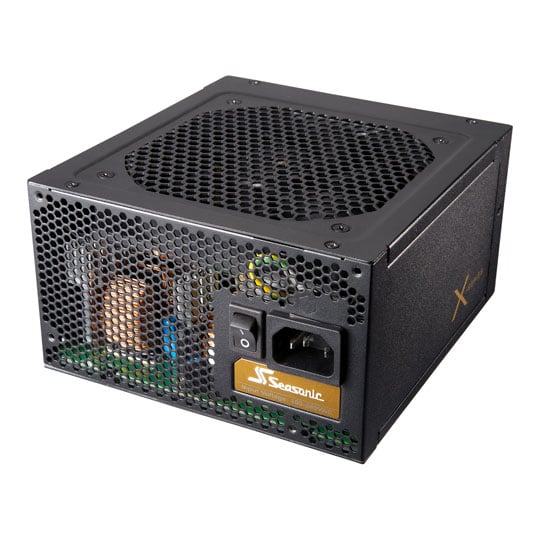

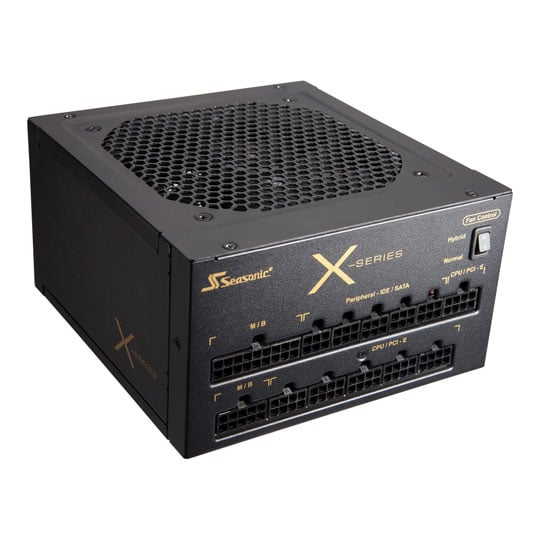

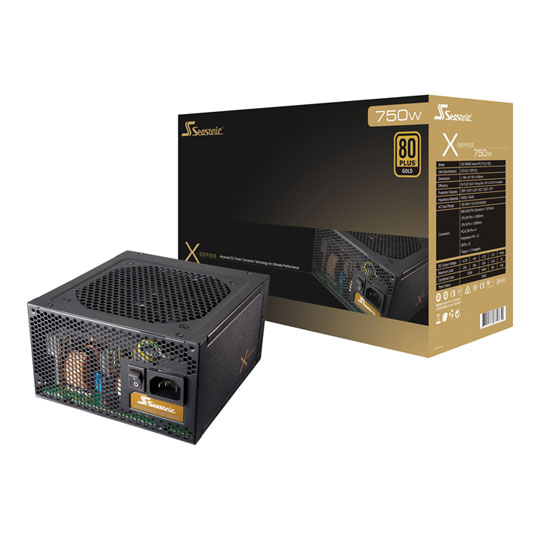

Seasonic X-Series 750W Modular Power Supply

750W Seasonic X-Series, Full Modular, 80PLUS Gold, ATX, PSU

Thumbnail 1 : Seasonic X-Series 750W Modular Power Supply Thumbnail 2 : Seasonic X-Series 750W Modular Power Supply Thumbnail 3 : Seasonic X-Series 750W Modular Power Supply Thumbnail 4 : Seasonic X-Series 750W Modular Power Supply
Scan code: LN47992 Manufacturer code: SS-750KM3
3xs Approved
From £9.17 / month (APR 0%)
Monthly Payment: £18.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £109.99
Total inc. interest: £109.99
Monthly Payment: £9.17
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £109.99
Total inc. interest: £109.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 28th May 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The new Seasonic X-Series is a slightly improved version of the initial X-Series, which was the very first fully modular multi-output, high-wattage ATX power supply that has ever obtained the 80PLUS® Gold certification.

Featuring a patent pending design of DC Connector Module with Integrated VRM, the X Series is set to achieve near-perfect DC to DC conversion and a fully modularized design without compromising efficiency. This top-class PSU delivers the complete package, ultra-high efficiency, greatly improved dynamic response, and customizable cable arrangement that can be tailored to meet any individual’s needs.

The Seasonic X Series adopts a clever Hybrid Silent Fan Control design, which offers three distinct operation modes, Fanless Mode, Silent Mode, and Cooling Mode. The control automatically adjusts the fan mode and its speed according to the ambient temperature level. This creative design not only optimizes heat dissipation, but also prolongs the lifespan of the system by reducing unnecessary fan rotation. To make the X Series even more robust and exciting, Seasonic offers Sanyo Denki San Ace PWM Silent Fan, the best fan there is in the industry with pulse-width modulation.

The X Series represents the Green PC technology that helps computer users save on their electricity bill. It achieves the 80PLUS® Gold standard that guarantees an above 87% efficiency rating across 20%, 50% and 100% loading along with a true power factor of >0.9. Moreover, the X Series is compliant with the Energy Star 5.0 rating and reduces energy consumption under standby, sleep and idle modes.
Features • 80PLUS® Gold Certified Super High Efficiency.
• Full Modular Cabling Design.
• Patented DC Connector Module with Integrated VRM [Voltage Regulator Module].
• DC to DC Converter Design.
• Seasonic Hybrid Silent Fan Control.
• Sanyo Denki San Ace Silent Fan.
• Conductive Polymer Aluminium Solid Capacitors.
• Highly Reliable 105℃ Japanese Brand Capacitors.
• Tight Voltage Regulation [±1%].
• Active Power Factor Correction [99% PF Typical].
• High +12V Output.
Size ATX
Wattage 750 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 87 %
Cooling Fan
Internal +12V Rails Single Rail
Rail 1 +12V 62 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 5 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 1 x 8-pin CPU +12V (EPS)
  • 10 x SATA
Dimensions 150 x 86 x 160 mm (WxHxD)
Package Type
Additional Information
Scan Code LN47992
Model Number SS-750KM3
GTIN 4711173870739

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

84 months
DOA Period:
7 days
RTB Period:
12 months
Manufacturer Contact Details
[email protected]
Loading Please Wait

Please wait . . .

750W Seasonic X-Series, Full Modular, 80PLUS Gold, ATX, PSU is rated 4.9 out of 5 by 8.
Rated 5 out of 5 by from 750W of quality in a black velvet bag Overall, very impressed with this. I wanted a 160mm PSU to fit my mITX case, and this fit the bill perfectly. Seasonic make a quality product (they make Corsair's PSUs for them). Comes with plenty of cables, only criticism is that they are quite stiff which can make cable management tricky. Good build quality throughout, is very quiet and runs nice and cool. The presentation in the box really makes this - it even comes in a black velvet bag! It's a small touch, but I can't say no to a classy product. Would recommend this to anyone needing 750W
Date published: 2015-10-11
Rated 5 out of 5 by from Compact and high quality psu Compact gold rated fully modular PSU. If you choose to run the psu in hybrid mode the fan will only kick in when it needs to. After 1 month of constant use, I don't think I've heard the fan ramp up even once. I've owned other seasonic psu that still work after 10 years so have high hopes that this unit stand the test of time.
Date published: 2015-04-14
Rated 5 out of 5 by from Pricey but you get what you pay for As title, expensive but worth every penny. I have been chasing a buzzing / bleeping type noise around my 'silent' pc for a while. I have replaced CPU fan, graphics card fans, case fans and guess what? All the time it was my so-called silent PSU. Replaced it with this and SILENCE. The modular cabling is superb too, just use what you need, and a 7 year warranty. Highly recommended.
Date published: 2015-04-03
Rated 5 out of 5 by from Superb Power Supply I've used two of these supplies since 2010 and they have performed perfectly with no problems whatsoever. System stability is flawless and - as others have said - the fan seldom runs and is virtually silent when it does. Coupled with a fanless graphics card and decent i5 processor/fan combination I have a very decent desktop system driving a 30" moinitor that is usually completely silent. Buying today I would probably get the 760W platinum version but whichever one is chosen I would highly recommend Seasonic.
Date published: 2015-01-04
Rated 5 out of 5 by from the best after using a corsair hx 1000 which sadly gave up the ghost I done some reseach into psu,s and this make came in @ the best you can buy. admitidly ive only had it for a few days and all seems to be very efficient and very quite. coupled with a 7 year guarantee you cant go wrong.
Date published: 2014-05-13
Rated 4 out of 5 by from Silent Silent or 'barely audible' even under load. The motherboard power cables could have been a bit longer. Apart from that a very high quality product.
Date published: 2013-12-28
Rated 5 out of 5 by from Very good product, impressive product quality This is my first Seasonic power supply and I think I won't be needing a new one for a long long time... The build quality is superb and the unboxing experience is one of the kind.
Date published: 2013-12-13
Rated 5 out of 5 by from Top Quality You get what you pay for in PSUs, and what you pay for here is a top quality unit. With enough power to run most high end systems, this unit has a switch which offers both normal mode and a hybrid mode in which the fan doesn't switch on until the system is under 50% load. The result is that the unit is absolutely silent in most conditions (for a single graphics card system, it is unlikely to ever reach more than 50% load), and when the fan is running it is almost inaudible anyway. The unit is also highly efficient, not just in the middle of the load spectrum like many cheaper units but across a variety of load conditions. Add a seven-year warranty and this really can't be beaten.
Date published: 2013-08-19
