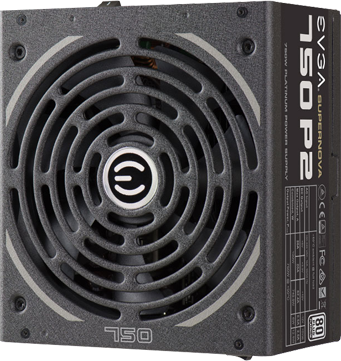

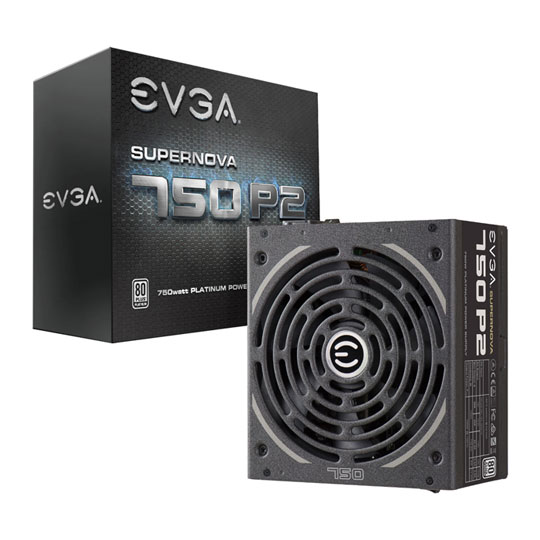

EVGA SuperNOVA 750 Watt P2 Fully Modular PSU/Power Supply
750W EVGA SuperNOVA P2, 80 PLUS Platinum, Full Modular, SLI/CrossFire, Single Rail, 62.4A +12V, 1x140mm Fan, ATX PSU
EVGA 750 P2 80PLUS PLATINUM
750P2 - Platinum Performance
The unbeatable performance of the EVGA SuperNOVA P2 power supply line is now available in 750 watts. Based on the award winning P2 power supplies, this unit features 80 Plus Platinum rated efficiency, and clean, continuous power to every component. The ECO Control Fan system offers fan modes to provide absolutely zero fan noise during low load to medium load operations. Backed by an award winning 10 year warranty, and 100% Japanese capacitor design, the EVGA SuperNOVA 750 P2 power supply offers unbeatable performance at an unbeatable value.
750P2 POWER CHART
Large 62.4 amp single + 12V Rail100 - 240 VAC / 10A / 50 - 60Hz
| 750W @ +50C
Industrial grade testing all load and regulation testing done at 50C
Standard ATX Form Factor
Will fit most mATX / ATX / EATX / HPTX & XLATX cases
Fan does not switch on until PSU load is above 45°C
Fully Modular Cabling
Fully Modular to reduce clutter and improve airflow
FAN NOISE CHART
SuperNOVA 750 P2
While being silent, this entire series has a large single 12volt rail, providing plenty of power to fuel all of your hardware. And lastly, because power without safety is pointless, a full suite of top tier circuit protections have been added to keep you running strong and more importantly keeping your hardware safe.
(Over Voltage Protection)
(Over Power Protection)
(Under Voltage Protection)
(Short Circuit Protection)
(Over Current Protection)
Single +12V Rail
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.
LLC Resonant Circuit Layout
Full DC to DC, LCC resonant circuit design improves efficiency.
Double Ball Bearing Fan
A high-quality dual ball bearing fan gives the SuperNOVA 750 P2 an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.
Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors
Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.
NVIDIA SLI Ready
Run multiple NVIDIA graphics cards for the ultimate gaming experience. The SuperNOVA 750 P2 gives you the power you need to drive these demanding systems and achieve the best overclocks.
Fully modular designs allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximise case airflow.
80PLUS PLATINUM Efficiency
80 Plus certification ensures your power supply isn’t wasting power and turning it into exess heat. Under typical load this power supply is 92% efficient or higher.
|80 PLUS Certification||80 PLUS Platinum|
|Max. Efficiency||94 %|
|Fans||1 x 140mm|
|Internal +12V Rails||Single Rail|
|Rail 1 +12V||62.4 A|
|Rail 2 +12V||N/A|
|Rail 3 +12V||N/A|
|Rail 4 +12V||N/A|
|Rail 5 +12V||N/A|
|Rail 6 +12V||N/A|
|Max. Combined Output +12V||62.4 A|
|Dimensions||150 x 85 x 165 mm (WxHxD)|
