Offer
Scan code: LN83868 Manufacturer code: SSR-650FX

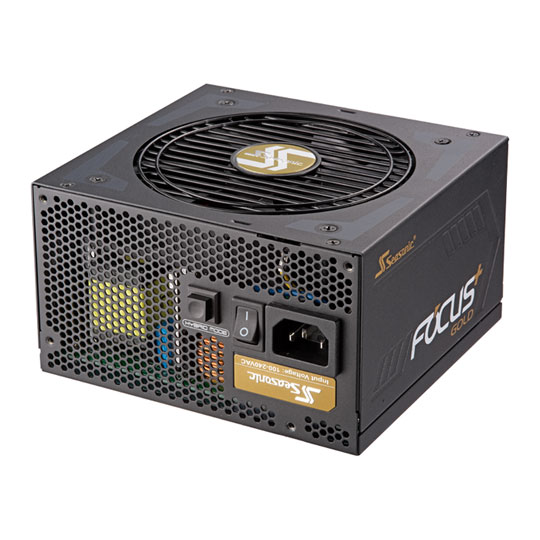

Seasonic Focus Plus+ 650 Watt Gold Modular PSU/Power Supply

650W Seasonic FOCUS Plus Gold, Full Modular, 80PLUS Gold, SLI/CrossFire, Single Rail, 54A, 120mm Fan, ATX PSU

Thumbnail 1 : Seasonic Focus Plus+ 650 Watt Gold Modular PSU/Power Supply Thumbnail 2 : Seasonic Focus Plus+ 650 Watt Gold Modular PSU/Power Supply Thumbnail 3 : Seasonic Focus Plus+ 650 Watt Gold Modular PSU/Power Supply Thumbnail 4 : Seasonic Focus Plus+ 650 Watt Gold Modular PSU/Power Supply
Scan code: LN83868 Manufacturer code: SSR-650FX
Was: £89.99
£79.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 27th Jun 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

650W Seasonic Focus Plus Gold

650W Seasonic Focus Plus Gold 80PLUS - Bronze

Focus Plus 650 Gold

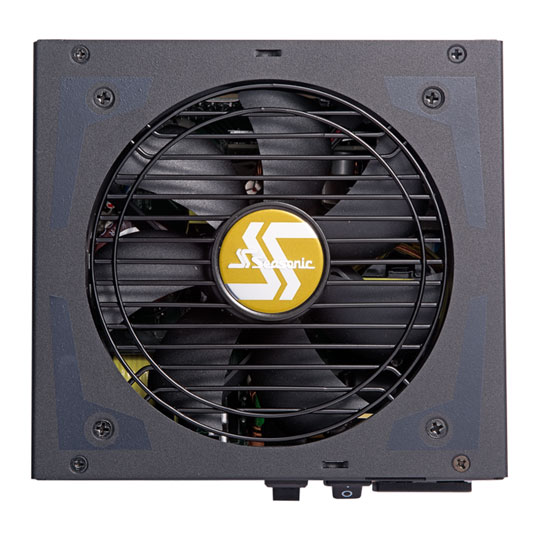

f you are looking for your next compact system build ideas, the FOCUS+ Gold 650 watt power supplies may be the ideal choice for you with their reliable and efficient power delivery, fully modular cables and efficiently regulated quiet operation. The high quality 120 mm Fluid Dynamic Bearing (FDB) fans are very quiet and proven to be very stable over the long run. When you couple these great FDB fans with Seasonic’s own Hybrid Silent Fan Control, then you have a power supply that outputs the least possible sound levels during operation.

Fluid Dynamic Fan Bearing

Fluid Dynamic Bearing

High Performance Fan Bearings

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

Hybrid Silent Fan Control

RGB LED Lighting

Endless Colour Combinations

The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

Seasonic 650 Gold Output Power Chart

Seasonic 650W ATX Power Supply
AC Input Voltage: 100V - 240V
Current: 9A - 4.5A
Frequency: 50Hz - 60Hz
DC Input Rail +3.3V +5V +12V -12V +5VSB
Maximum Power 20A 20A 54A 0.3A 3A
100W 648W 3.6W 15W
Total Continuous Power: 650W
Specifications
Size ATX
Edition FOCUS Plus Gold
Wattage 650 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 90 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 54 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 54 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 3 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 8 x SATA
Dimensions 150 x 86 x 140 mm (WxHxD)
Package Type Retail
Additional Information
Scan Code LN83868
Model Number SSR-650FX
GTIN 4711173873358
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Direct
DOA Period:
30 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Seasonic
Loading Please Wait

Please wait . . .

Reviews
650W Seasonic FOCUS Plus Gold, Full Modular, 80PLUS Gold, SLI/CrossFire, Single Rail, 54A, 120mm Fan, ATX PSU is rated 3.0 out of 5 by 1.
Rated 3 out of 5 by from Be aware not compatible with ASUS GT970 strix so I have spent the last two week trying to diagnose an intermittent fault. Run 2 screens one DP one HDMI When under load the 2 screen lose signal and PC needs to be rebooted to get signal back. Turns out this PSU is not compatible with 2 GPU's FOCUS PLUS & ASUS GTX970 STRIX: In very limited instances black screen may occur under heavy VGA usage. Current testing showed that certain VGA cards may emit higher than normal ripple when under heavy load and using a modified PCIe cables with enhanced shielding resolved the issue. FOCUS PLUS & Vega 56/64: For units with serial numbers before January 2018, in rare instances, possible system shutdown may occur when GPU is under heavy load. This is possibly caused by higher than normal peak current emitted by this particular range of GPU's when under heavy load triggering the PSU’s internal protection safety. So my sons machine gets a cool upgrade and Seasonic claimed this has gone away, but actually requires better shielded cables
