End Of Life

EVGA 650 Watt GQ Gold Hybrid Modular ATX PSU/Power Supply

Scan code: LN68204 Manufacturer code: 210-GQ-0650-V3

End Of Life

EVGA 650 Watt GQ Gold Hybrid Modular ATX PSU/Power Supply : image 1

zoom

EVGA 650 Watt GQ Gold Hybrid Modular ATX PSU/Power Supply : image 2

zoom

EVGA 650 Watt GQ Gold Hybrid Modular ATX PSU/Power Supply : image 3

zoom

EVGA 650 Watt GQ Gold Hybrid Modular ATX PSU/Power Supply : image 4

zoom

End Of Life

EVGA 650 Watt GQ Gold Hybrid Modular ATX PSU/Power Supply

650W EVGA GQ Series, 80PLUS Gold, Hybrid Modular, SLI/CrossFire, Single Rail, 54A +12V, 1x135mm Fan, ATX PSU
MORE INFO

MORE INFO

Scan code: LN68204 Manufacturer code: 210-GQ-0650-V3

End of life

This product is no longer available to purchase.

Email me when the availability or price changes

SCANPROTECT Protect against installation damage for 28 days.
48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

EVGA 650GQ 80PLUS GOLD

650GQ - Great Quality, Great Value

Introducing the GQ series power supplies from EVGA. The 650GQ takes some of the best features from EVGA's award winning power supplies, like EVGA ECO fan mode for near silent operation, Japanese Capacitor Design and a highly efficient design, at an excellent value. This power supply is 80PLUS GOLD rated and offer an outstanding 5 Year Warranty that’s backed by world class EVGA support.

650GQ POWER CHART

AC Input

DC Output

Max Output

Combined

Output

Large 54 amp single + 12V Rail 100 - 240 VAC / 10A / 50 - 60Hz
+3.3V	+5V	+12V	+5Vsb	-12V
24A	24A	54A	3A	0.5A
120W		648W	15W	6W
650W @ +50C Industrial grade testing all load and regulation testing done at 50C

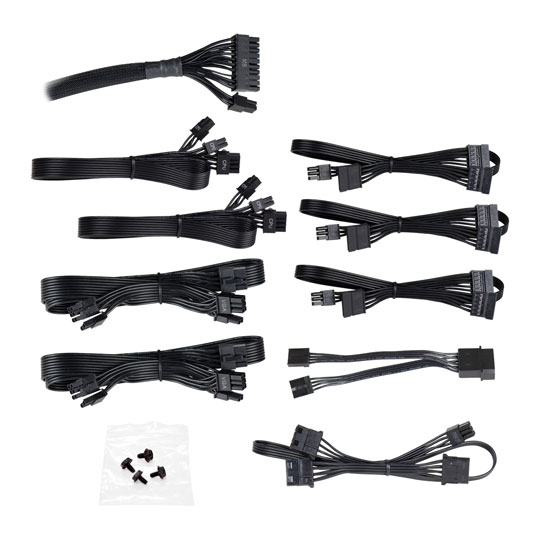

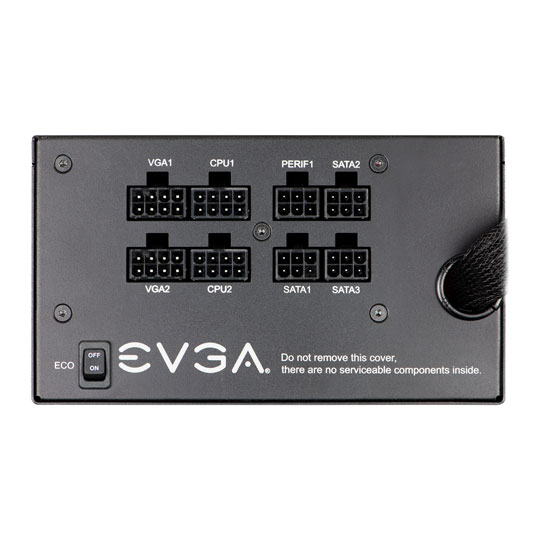

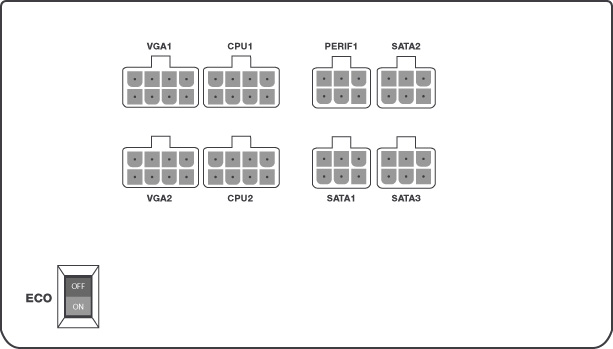

CONNECTIVITY

Modular Design
Semi-modular design allows you to only use the cables you need, helping to improve case airflow, eliminate unnecessary wires, and best of all, reduce cable clutter.

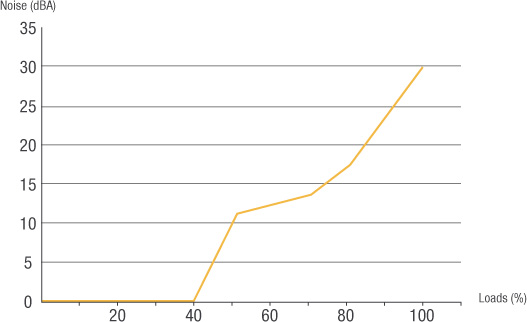

FAN NOISE CHART

SuperNOVA 650 GQ

(Eco ON)

FEATURES

Single +12V Rail

A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.

80PLUS GOLD Efficiency

80 Plus certification ensures your power supply isn’t wasting power and turning it into exess heat. Under typical load this power supply is 90% efficient or higher.

LLC Resonant Circuit Layout

Full DC to DC, LCC resonant circuit design improves efficiency.

NVIDIA SLI Ready

Run multiple NVIDIA graphics cards for the ultimate gaming experience. The SuperNOVA 650 GQ gives you the power you need to drive these demanding systems and achieve the best overclocks.

Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors

Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.

Modular

Modular design allows some cables to be removed from the power supply for ease of installation and removal. Tou can leave off unnecessary cables to reduce case clutter and maximize case airflow.

650W EVGA GQ Series, 80PLUS Gold, Hybrid Modular, SLI/CrossFire, Single Rail, 54A +12V, 1x135mm Fan, ATX PSU is rated 5.0 out of 5 by 5.

Rated 5 out of 5 by gowla from Top notch low price This is a very well priced gold 80plus. Works well. And its hybrid modular configuration makes it very neart and tidy. And as always ive had no issue with SCAN as company. They are fast and always have the best prices.

Date published: 2020-08-24

Rated 5 out of 5 by NNAISU from Not Had a Problem yet Was getting a 2060 Super so needed to upgrade form a 450W and this power supply has been great so far, one thing to note for those new to upgrading a power supply you have to use the new cables form this power supply, as I tried using my old corsair ssd cables and the PC wouldn't boot I was worried then realised after an hour of panicking that I just had to use the new cables.

Date published: 2020-06-06

Rated 5 out of 5 by Adeymag from Great Quality and Incredibly Quiet. If you are thinking about buying this PSU for your rig then you really couldn’t make a better choice. It’s overall quality really is excellent, the semi-modular design makes for a clean & easy build and in operation it is beautifully quiet, even when the fan is operating at full speed. My system is housed in a GameMax Vanguard VR2 case, which is quite a generously sized midi tower, yet the supplied cables had plenty enough length to reach all areas; even to the optical drive I have mounted in the uppermost bay of the case. The supplied cables for this PSU are of the ribbon type which I personally prefer to the sleeved rounded type of cables found on other PSUs, they are however pretty stiff which can make them a little bit awkward to work with. I found it best to warm them very slightly and to gently work them into shape prior to fitting rather than trying to bend and coerce them into place as you fit them. All in all a high quality and beautifully quiet PSU which is well worth the money, highly recommended. Regards. Ade.

Date published: 2020-02-01

Rated 5 out of 5 by JonJonJon from Quality PSU Comes protected by dense foam all around in it's own snazzy box. Scan are always good with their packing too, so there's little chance of couriers mashing it. Installation is easy due to good cables. The modular ones are all ribbons, and are therefore most pliable. They're all long too - I didn't have to use a single extender in my Fractal Design R2 XL, and that's with all my drives up in the 5.25" bays. Cable management with this PSU is a doddle. Operation is as good as silent - I can't hear it at all. My last psu was an XFX with a faulty fan, rendering it the loudest part of the system. Now it's the slight noise of the case exhaust fan. I've got the PSU on eco mode, and I've no idea when the fan comes on because it's very quiet. Even on normal fan mode, I can only tell it's on if I remove the side panel and get my ear as close to the psu as possible without the CPU fan trying to eat my hair. Top marks.

Date published: 2017-05-03

Rated 5 out of 5 by Sweatybrety from Great price for the quality only had this for 2 days but it feels like a quality power supply. Its near silent when browsing and while idle but its still very quiet when the fan spins up. comes with plenty of connectors that are all a decent length with plenty to spare even in my rather large silent base 800 case.

Date published: 2015-11-25
