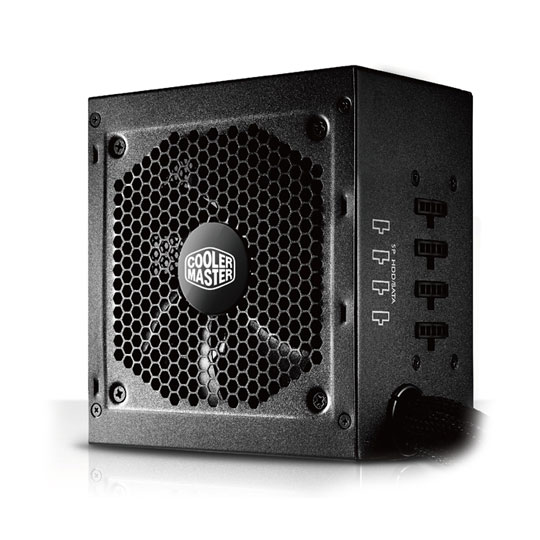

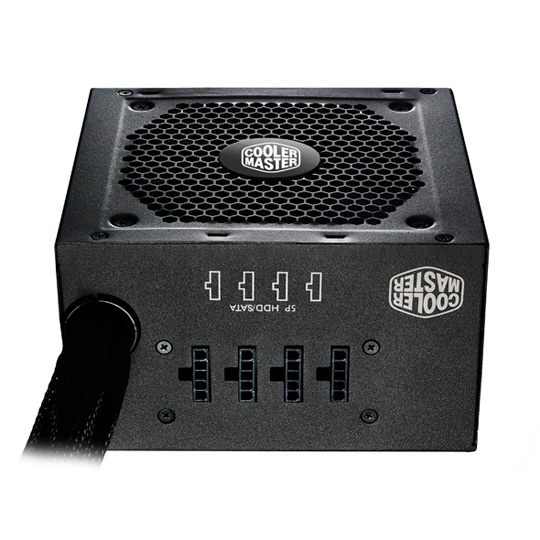

CoolerMaster G650M 650W Hybrid Modular Power Supply

650W Cooler Master G650M Hybrid Modular, 80PLUS Bronze, 1x120mm, ATX, PSU

Cooler Master
Scan code: LN54742 Manufacturer code: RS650-AMAAB1-UK Request call
End Of Life
High End
Product Overview Cooler Master G650M comes with 80 Plus Bronze certified and a single +12V rail. The intelligent 120mm fan speed controller with honey combo mesh increases airflow for better heat dissipation.

• Unique 3D circuit design offers high efficiency and improves the heat dissipation. It reduces the unnecessary cables which results in much lower crosstalk, signal noise and improves airflow
• Powerful Single +12V rail for superior load balancing and VGA compatibility. All series supports VGA up to Nvidia Titan.
• Modular cable designs for better cable management
• Custom DC-DC module design offers higher efficiency and voltage stability
• Haswell & Skylake ready
• 80 PLUS Bronze certified: up to 88% efficiency @ typical load Features Model number RS650-AMAAB1-UK
Type Intel Form Factor ATX 12V V2.31
Dimensions (LxWxH) 150(L) x 140(W) x 86(H) mm
Modularity Semi-Modular
Input Voltage 100-240Vac (Full Range)
Input Range 100-240Vac (Full Range)
Input Current 10 - 5A
Input Frequency Range 60 - 50Hz
PFC Active PFC (>0.9 typical)
Power Good Signal 100-500ms
Hold Up Time >16ms
Efficiency 85% Typically
MTBF >100,000 Hours
Protection OVP/UVP/OPP/OTP/SCP/OCP
Output Capacity 650W
Operation Temperature 0~40°C
Regulatory CE/FCC/UL/TUV/RCM/EAC/BSMI/CCC
Fan 120mm intelligent fan
80 Plus Certification 80 Plus Bronze
Connectors 1x MB 20+4 Pin
1x CPU12V 4+4 Pin
4x PCI-e 6+2 Pin
8x SATA
x 4Pin Peripheral
1x 4Pin Floppy
Warranty 5 years
ErP 2013 Complaint Yes
EAN Code 4719512044940
UPC Code 884102024047
