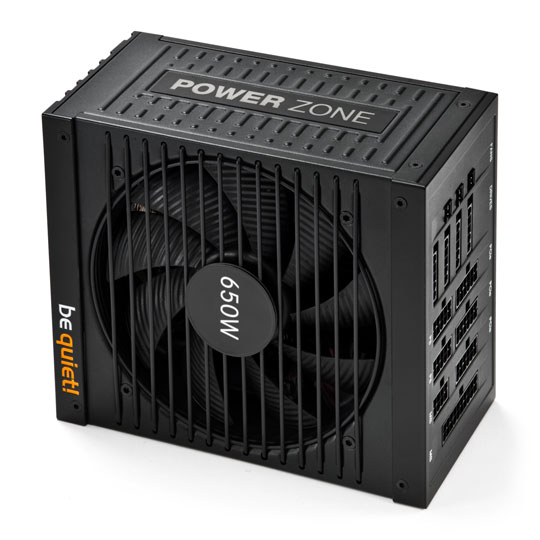

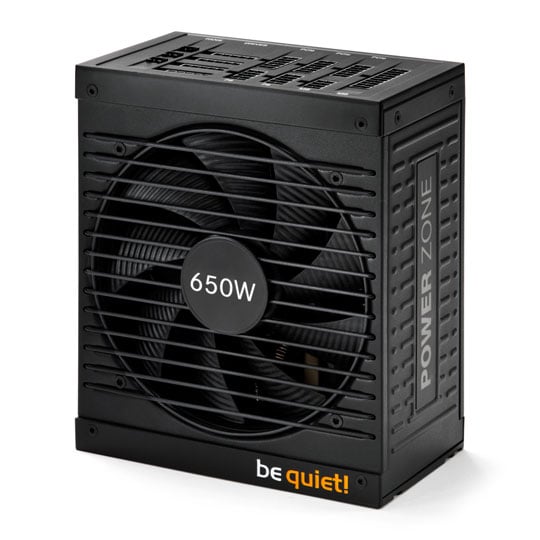

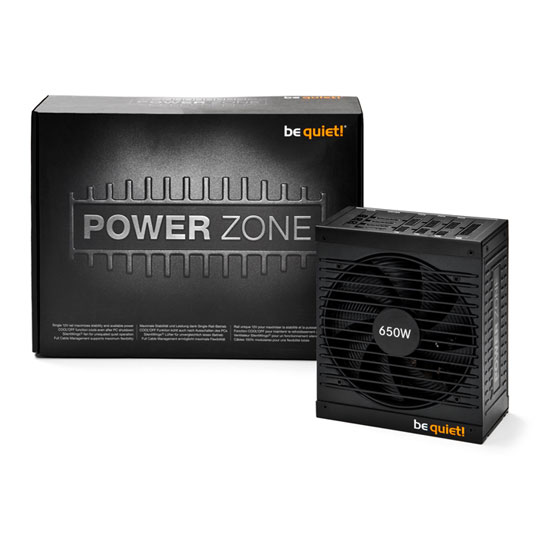

be quiet! Power Zone 650W Modular Power Supply

650W be quiet! Power Zone, Full Modular, 80PLUS Bronze, 1x135mm Fan, ATX, PSU

be quiet!
Scan code: LN53173 Manufacturer code: BN210 Request call
£99.98
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
review High End
Delivery options £11.50 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview The be quiet! Power Zone is home for discerning gamers and PC enthusiasts seeking high power, top performance and great features. Power Zone 650W hits that sweet spot with granite stability, advanced cooling features, low noise and great value.

• 650 Watts of continuous power output with massive 12V rail design and DC-to-DC technology make this power supply ideal for overclocking
• Variable speed 135mm SilentWings® fan with airflow-optimized blades, copper core fluid dynamic bearing, and special 6-pole motor enables quiet operation
• COOL*OFF feature runs fans for three minutes after system shutdown to protect your valuable components at their time of maximum heat stress
• Connect up to three case fans for optimized system cooling that is thermally controlled by the PSU, quieting your whole system
• Full cable management with quality sleeved cables and four PCI Express connectors supports maximum build flexibility and superior airflow in your case
• 80PLUS® Bronze certification for high efficiency of up to 90%. Support of Intel’s Deep Power Down C6/C7 mode
• Product conception, design and quality control in Germany
Features Performance Zone
• Massive 12V rail design, Active Clamp and Synchronous Rectifier (SR) technology (for 12V and 5V), DC-to-DC (for 3.3V and 5V) voltage step-down for rock-solid power stability and minimal signal noise
• Up to 54A / 648W available on the +12V rail, respectively 99.6% of the total power
• Designed for powerful operation even at 50° C
• Certified for NVIDIA SLI and CrossfireX multi-GPU systems
• ATX12V 2.4 & EPS12V 2.92 compatibility supports the latest generations of processors from Intel® and AMDTM
• Ready for Intel® HaswellTM platform
• Excellent voltage regulation under 2% on the 12V rail

Quiet Zone
• Installed variable speed 135mm SilentWings® fan includes a wide array of electronic and mechanical optimizations for best-of-class air flow with very low noise production
- unique airflow-optimized fan blade design reduces noise-generating fan turbulence
- advanced fluid dynamic bearing with copper core provides greatly reduced operating noise and super-long life
- special 6-pole motor reduces power consumption and vibration
• SilentWings® fan reduces transmission of vibration and noise
• Variable fan speed is optimally governed to strike the best balance between proper cooling and deep quiet

Cooling Zone
• COOL*OFF feature runs fan for three minutes after system shutdown, protecting valuable components at their time of maximum heat stress
• Connect up to three case fans for optimized system cooling that is thermally controlled by the PSU, quieting your whole system

Connection Zone

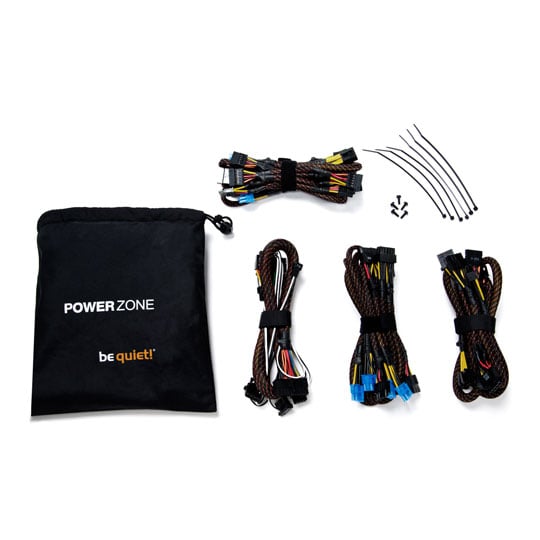

• Fully modular cable management with quality sleeved cables simplifies component installation, reduces annoying clutter, maximizes build flexibility, and improves cooling due to increased airflow
• System supports up to 21 connectors for massive system builds
• Four PCI Express connectors supported for powerful multi-GPU configurations (NVIDIA SLI and AMD CrossFireX)
• Excellent compatibility for past, current and future components
• Sleeved cable lengths up to 115cm also promote cooling and are perfect for large PC cases
• Individual P4 and P8 plugs support all common mainboard types
• Clearly labeled plugs and clever accessories promote simple installation

Safety Zone
• Top protection for components against over-currents, over- and under-voltages, short circuits, overheating and overloads
• Built-in surge protection included

Green Zone
• 80PLUS® Bronze certification for high efficiency of up to 89%
• Active Power Factor Correction with an PF of up to 0.99
• Standby power drain <0.15W
• Meets Energy Star 5.2 guideline
• ErP 2013 Ready

Quality Zone
• High quality 105°C-rated capacitors on AC and DC side for maximum performance, high reliability, and longer PSU life under high load
• 5-year manufacturer's warranty
Specifications
Specifications
Size ATX
Edition Power Zone
Wattage 650 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency 90 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 54 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4 Pin
Connectors
  • 1 x 4+4pin CPU +12V
  • 4 x 4pin Molex
  • 4 x 6+2pin PCI-E Power
  • 1 x FDD Power
  • 8 x SATA Power
Dimensions 150 x 86 x 175 mm (WxHxD)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
SCAN

Additional Notes:
5 Year Direct Warranty

Reviews
Rated 4.3 out of 5 by 3 reviewers.
Rated 5 out of 5 by Great PSU Silent, good power output and looks pretty good as well. What more could you want from a PSU? 30 October 2015
Rated 5 out of 5 by Very quiet, very sturdy, very sleek! This power supply oozes quality and is practically silent. It is not a cheap power supply and it shows in operation. Highly recommended for someone who want some good quality silence that isn't over the top expensive 22 December 2013
Rated 3 out of 5 by Cables difficult to fit The PSU itself is OK. The cables are pretty rotten. When installing the unit, connect the cables you need before you put it in the case. This is because the cables don't fit the PSU very well and you really have to force them in. The power cables are also thick and not flexible, so if you try to install them into the PSU after you've fitted it, you end up whacking whatever you've installed on the motherboard with the cable. 21 December 2013
