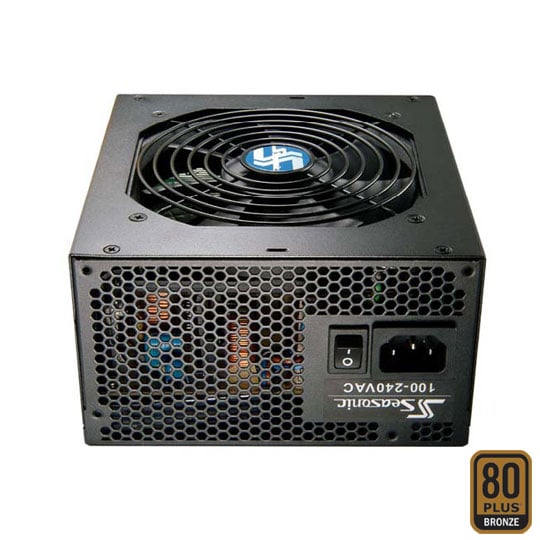

Seasonic M12II-620 620W Modular Power Supply 80+ Bronze (PSU)
Delivery
DPD £5.48 Delivered by DPD Delivered to your specified address. Receive SMS with one-hour delivery window.
UPS Access Point £4.79 Collect from local shops Collect your parcel from your newsagents, petrol stations and convenience stores.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout
End of Life

Seasonic M12II-620 620W Modular Power Supply 80+ Bronze (PSU)

620W Seasonic M12II-620, Modular, 87% Eff' 80PLUS Bronze 12cm Silent Fan S2FC SLI/CrossFire, EPS 12V, ATX v2.3, PSU

Finance
Scan Finance

Buy Now Pay Later - After a 10% deposit pay nothing for 9 months.

PayBreak

Spend between £100 and £1000 and get the goods before you pay.

620W Seasonic M12II-620, Modular, 87% Eff' 80PLUS Bronze 12cm Silent Fan S2FC SLI/CrossFire, EPS 12V, ATX v2.3, PSU

Seasonic M12II-620 620W Modular Power Supply 80+ Bronze (PSU)
Seasonic M12II-620 620W Modular Power Supply 80+ Bronze (PSU)
Product Overview
Sea Sonic Electronics launches the M12II “Bronze” Series, the new and upgraded version of the M12II “Bronze” Series in response to the growing demand and anticipation for more energy-efficient products. The M12II Bronze Series inherits the same output and wattage options as well as the superb quality and ultimate silence from the M12II Series. The M12II, available in 500 watts, offers buyers with a mid range power output solution with cable management, to meet their exact system needs; cable management is now made easier than ever.

The M12II Bronze Series achieves the 80 PLUS® Bronze standard of at least 82%, 85% and 82% efficiency under 20%, 50% and 100% operating loads respectively. Combined with Active Power Factor correction (Active PFC), the M12II Bronze reduces energy waste, boosts power efficiency and more importantly, helps the users to save energy and reduce electricity bill.

While upgrading in efficiency, the M12II Bronze Series maintains the advanced designs and quality components from the past M12II line. Such designs and components including Double Forward Converter design, Smart and Silent Fan Control and highly reliable Japanese brand capacitor also boost the overall performance in stability and silence. The M12II Bronze Series is available in standard ATX Form Factor and in wattages that are beneficial for a PC system. With the all-in-one cabling design and EPS connectors, the M12II Bronze Series is geared to support IPC and server systems and as well, both 6P & 8P PCI-E connector for latest and high end dual graphic cards. Moreover, the modular design also provides a flexible solution for orderly cable management.
Features
• 80PLUS® Bronze Certified High Efficiency
• Highly Reliable 105? Japanese Brand Capacitor
• Ample +12V Outputs
• Active Power Factor Correction [99% PF Typical]
• Double Forward Converter Design
• Smart & Silent Fan Control [S2FC]
• 12cm Ball Bearing Cooling Fan
• Soft-Mount Rubber Cushions
• Universal Video Card Support
• All-in-One DC Cabling Design
• Detachable Modular Cables
• Patented Easy Swap Connector
• Universal AC Input [Full Range]
• Ultra Ventilation [Honeycomb Structure]
Technical Specification
General
Manufacturer:
Seasonic
Size:
ATX v2.91
Edition:

Wattage:
620 W
80 PLUS Certification:
80 PLUS Bronze
Max. Efficiency:
87 %
Cooling:
Fan
Fans:
  • 1 x 120mm
Internal +12V Rails:

Rail 1 +12V:
N/A
Rail 2 +12V:
N/A
Rail 3 +12V:
N/A
Rail 4 +12V:
N/A
Rail 5 +12V:
N/A
Rail 6 +12V:
N/A
Max. Combined Output +12V:
48 A
Modular:
Yes
Modularity:
Hybrid Modular
SLI/CrossFire:
Yes
EPS 12V:
Yes
Motherboard Connector:
20+4 Pin
Connectors:
  • 1 x 4+4pin CPU +12V
  • 6 x 4pin Molex
  • 1 x 6+2pin PCI-E Power
  • 1 x 6pin PCI-E Power
  • 1 x 8pin CPU +12V
  • 2 x FDD Power
  • 9 x SATA Power
Dimensions:
150 x 86 x 160 mm (WxHxD)
Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
SCAN

Additional Notes:
5 Year Manufacturers Warranty
