Seasonic EVO 620W Full Modular Power Supply

620W Seasonic M12 II EVO Edition, Full Modular, 80PLUS Bronze, SLI/CrossFire, Single Rail, 48A, 120mm Fan, ATX PSU

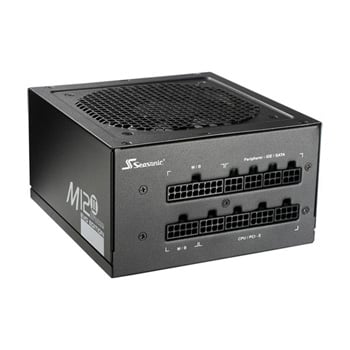

Thumbnail 1 : Seasonic EVO 620W Full Modular Power Supply
Scan code: LN55447 Manufacturer code: SS-620GM2
Was: £74.99
£69.98Item due on 03 August 2018
Pre Order
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The M12II EVO 620 watt power supply delivers solid 80 PLUS® Bronze performance and great value. This unit supports multi-GPU systems and its fully modular cabling design allows customers to use only the cables that are necessary to connect their components. Its remarkable electronic performance is based on nearly 100 % active power factor correction, generous 12 volt outputs and gold plated connectors. The enhanced +12 volt current capability broadens utilization possibilities, whereas the advanced fan control system makes this stable power supply an excellent choice. Sea Sonic’s outstanding workmanship and highly graded components guarantee long-term reliability. Features DC to DC Converter Design
Provides superior dynmaic response, greater system stability and maximizes the 12V DC rail output.

Highly Reliable 105c Aluminium Electrolytic Capacitors
A build that integrates high level, Japan-sourced components to extend product life.

Ample +12V Outputs
Enhanced +12V current capability broadens utilization possiblities.

Active Power Factor Correction
Reduces line loss and power distortion.

Smart & Silent Fan Control
Intelligent thermal control to ensure an optimal balance between silence and cooling.

120mm Ball Bearing Cooling Fan
Increases airflow and product lifetime while reducing noise and fan rotation speed.

Multi-GPU Technology Support
6-Pin and 8-Pin PCI-E Connectors to support all GPU platforms.

Fully Modular Cables
Flexible cable solution to reduce clutter and optimize cable management

Ultra ventilation
Minimizes airflow resistance for maximum cooling.

Gold Plated High current Terminals
Reduces current transmission resistance to increase efficiency.

Multi-GPU Technology Support
6-Pin and 8-Pin PCI-E Connectors to support all GPU platforms.

Fully Modular Cables
Flexible cable solution to reduce clutter and optimize cable management.
Specifications
Size ATX
Edition M12 II EVO Edition
Wattage 620 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency 85 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 48 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 48 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 5 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 1 x FDD Power
  • 8 x SATA
Dimensions 150 x 86 x 160 (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
60 months
Manufacturer Contact Details
Manufacturer:
Seasonic / Scan
Telephone:
0871 472 4747
Customers also bought
Reviews
620W Seasonic M12 II EVO Edition, Full Modular, 80PLUS Bronze, SLI/CrossFire, Single Rail, 48A, 120mm Fan, ATX PSU is rated 4.9 out of 5 by 10.
Rated 5 out of 5 by from Amazing power supply! Bough this unit from SCAN a little over a week ago. Runs very quietly, and has all the cables you'd need. Thank you SCAN for the quick delivery and great packaging.
Date published: 2018-05-16
Rated 5 out of 5 by from 620W Seasonic M12 II EVO Edition Great power supply needed a mid gaming system built,even has the extra USB power cords and modular design to hide all the cables.
Date published: 2018-05-16
Rated 5 out of 5 by from Perfect Very good PSU at a very nice price. The fully modular option really helps to keep the case clean
Date published: 2018-05-08
Rated 5 out of 5 by from Good strong build, runs very quietly Great piece of kit, does what it says on the box
Date published: 2018-04-12
Rated 5 out of 5 by from Little Gem So glad I chose this PSU more than enough power for an Asus ROG Strix Z270F, 16 GB Corsair Veng, Intel core I5 7600K kabylake and Asus GTX 1060 Phoenix 3GB. Excellent value, fully modular along with Seasonics excellent quality. Very happy with this purchase.
Date published: 2018-02-25
Rated 5 out of 5 by from Seasonic M12II Evo Excellent power supply,this is the second one I'm buying simply because of the reliability and good quality capacitors.As many might not know a lot of the power supplies by EVGA and Corsair have parts like capacitors made by Superflower and Seasonic. Being one of the major power supply manufacturers I didn't expect anything more to be honest, it does the job and it does it well. The price is a bit steep but it's definitely worth it, considering it can power a PC with two GPU's and all internal parts.
Date published: 2016-10-26
Rated 5 out of 5 by from Great quality PSU This is one of the best quality PSUs you can get on the market. Seasonic make the best quality PSUs and most good quality PSUs from other brands are made by Seasonic, so I had no hesitation in chosing this PSU and it paid off, good quality cables and great performance. Would definitely recommend as it has great value over more expensive PSUs with lower quality. PS: It's actually black, it looks grey in pictures but it will look darker when you actually see it
Date published: 2015-08-05
Rated 4 out of 5 by from Decent - but must use cables supplied A decent PSU, not silent but quiet enough. I was replacing an existing PSU but I couldn't use the existing cable setup, and had to use the cables supplied with this Seasonic PSU.
Date published: 2015-08-03
  • y_2018, m_6, d_19, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_10
  • loc_en_GB, sid_55447, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Rubber internals?

I know it is unlikely but does this power supply contain any sort of rubber internals at all? as I need it for a mineral oil cooled PC and I cannot have any kind of rubber in it.
Asked by: adrenalinetech
theres plastic connectors but not rubber .. however i cant be sure theres no rubber washers internally,however i dont think there is !
Answered by: brianthesnail
Date published: 2016-03-06

do you sell pcie cables for this psu?

i need a pcie cable 8 to 6+2, do you sell them? thanks
Asked by: mistapaul
no,however you should of received all the required cables with the psu ... however seasonic should be able to sell you the cable .. you can email them at [email protected] and they should be able to supply you with a 8 (6+2 ) pin connector ... you can get silverstone 8(6+2) connectors but you cant be sure about compatibility ... hope this helps !
Answered by: brianthesnail
Date published: 2016-03-06
