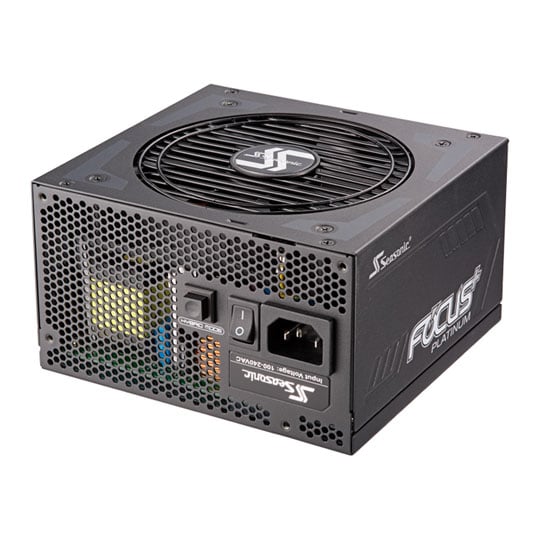

Seasonic Focus Plus+ 550 Watt Platinum Modular PSU/Power Supply (2019 Edition)
550W Seasonic FOCUS Plus Platinum, Full Modular, 80PLUS Platinum, SLI/CrossFire, Single Rail, 45A, 120mm Fan, ATX PSU
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

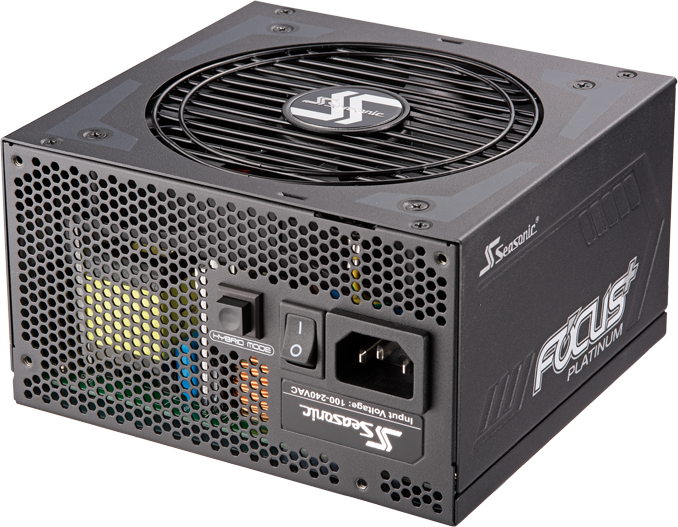

550W Seasonic Focus Plus Platinum
Focus Plus 550 Platinum
The fully modular, 80 PLUS® Platinum rated FOCUS+ Platinum 550 watt unit is based on the DC to DC Converter Design and its electric performance characteristics are impressive with their tight voltage regulation. These power supplies use high temperature Japanese capacitors to ensure stability under extreme conditions. Besides its stability and remarkable output characteristics, this unit has the highest power density in its class. Silence enthusiasts will appreciate the Seasonic Hybrid Silent Fan Control system that is the industry’s first three-phased advanced thermal control to achieve optimal balance between silence and cooling.
Fluid Dynamic Fan Bearing
High Performance Fan Bearings
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
Hybrid Silent Fan Control
Endless Colour Combinations
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
Seasonic 550 Platinum Output Power Chart
| Seasonic 550W ATX Power Supply | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100V - 240V | |||||
| Current: 8A - 4A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Input | Rail | +3.3V | +5V | +12V | -12V | +5VSB |
| Maximum Power | 20A | 20A | 45A | 0.3A | 3A | |
| 100W | 540W | 3.6W | 15W | |||
| Total Continuous Power: 550W | ||||||
