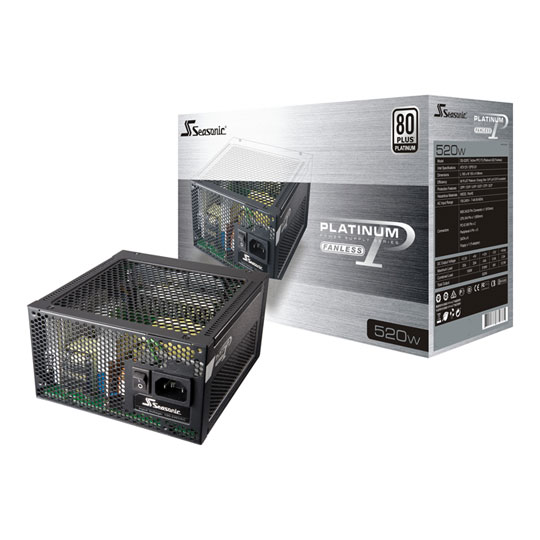

Seasonic SS-520FL2 520W Fanless Modular Power Supply

520W Seasonic Platinum 520 Fanless, Full Modular, 80 PLUS Platinum, SLI/CrossFire, Single Rail, 43A, Fanless, ATX PSU

Seasonic
Scan code: LN47999 Manufacturer code: SS-520FL2 Request call
£139.49Item due tomorrow
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Suggested alternatives
Product Overview Seasonic’s Patented Fully Modular Design while minimizing voltage drops and impedance, it greatly maximizes efficiency and cooling to enhance overall performance and reliability. The Platinum Series, certified in accordance to the 80PLUS highest standards, offers the newest technology and innovation for performance and energy savings with up to 92% efficiency and a true power factor of greater than 0.9PF.

80+ Platinum
The Platinum Series, certified in accordance to the 80PLUS highest standards, offers the newest technology and innovation for performance and energy savings with up to 92% efficiency and a true power factor of greater than 0.9PF.

Data Sheet
Features Special Features -

1. 80PLUS® Platinum Certified Super High Efficiency
2. Full Modular Cabling Design
3. Fanless- 0dBA
4. Patented DC Connector Module with Integrated VRM [Voltage Regulator Module]
5. DC to DC Converter Design
6. Conductive Polymer Aluminum Solid Capacitors
7. Highly Reliable 105°C Japanese Aluminum Electrolytic Capacitors
8. Tight Voltage Regulation [±2%]
9. Active Power Factor Correction [99% PF Typical]
10. High +12V Output
11. Gold Plated High Current Terminals
12. Dual Sided PCB Layout
13. Ultra Ventilation [Honeycomb Structure]
14. Multi-GPU Technology Support
15. All-in-One DC Cabling Design
16. Easy Swap Connector
17. Universal AC Input [Full Range]
18. 7 Years Warranty
Specifications
Size ATX
Edition Platinum 520 Fanless
Wattage 520 W
80 PLUS Certification 80 PLUS Platinum
Max. Efficiency 92 %
Cooling Fanless
Fans
Internal +12V Rails Single Rail
Rail 1 +12V 43 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 43 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 5 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 1 x FDD Power
  • 6 x SATA
Dimensions 150 x 86 x 160 (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
60 months
Manufacturer Contact Details
Manufacturer:
Seasonic / Scan
Telephone:
0871 472 4747

Additional Notes:
Scan Computers will only assist you with a warranty claim within the first year, outside of this time you will have to return to Seasonic directly in Germany.

Customers also bought
TekSpek Guides
PSUs (Power Supply Units)
PSUs (Power Supply Units)
Date Issued: 4th Jul 2011

Let's face it, power-supply units (PSUs) are boring. Presented in what's usually a mundane box spitting cables from one end, this is a product that's neither aesthetically pleasing nor technically interesting to the majority of self-builders.

Read More

80 Plus certification
80 Plus certification
Date Issued: 18th Nov 2010

Conceived back in 2004 and brought to market just a year later, the 80 PLUS initiative is one of many standards introduced in an effort to increase energy efficiency in modern technology. Targeting computer power supplies, it awards PSUs that are able to achieve an energy efficiency of over 80 per cent at varying workloads and a power factor of 0.9 or more at 100 per cent load.

Read More

Green computing at home
Green computing at home
Date Issued: 20th Nov 2008

This TekSpek explains what Green Computing is, what it means to the consumer, and how energy-efficient components can be beneficial in the home.

Read More

Reviews
520W Seasonic Platinum 520 Fanless, Full Modular, 80 PLUS Platinum, SLI/CrossFire, Single Rail, 43A, Fanless, ATX PSU is rated 4.7 out of 5 by 6.
Rated 4 out of 5 by from It's a "must have"-product I've installed it a week ago without any problems and it's been running since then 24/7. It makes no noise. No humming sound, no coil whine, no clicking whatsoever. It's been completely silent regardless if the PC is idle or under load. It comes with an impressive 7-year warranty. One needs to keep hold of the original package, because there's a small sticker on it, which when lost voids its warranty. The cables are fully modular and all black. See the specifications here at Scan for their exact numbers (which I've verified are correct). It further comes with 4 case screws, 5 plastic cable ties and an additional 3 Velcro cable ties. Only the black velvet bag, which the PSU came in, seems unnecessary. As digital PSUs are only starting to enter into the market am I glad that this isn't one of them. It reaches it's high efficiency of almost 94% by using a traditional design based on decades of experience, which is reassuring. A detailed test of this PSU can be found here: https://www.techpowerup.com/reviews/Seasonic/SS-520FL/ It's needless to say after I've replaced an ageing PSU (625W with 82% eff.) that the PC now use a whole 10W less in power when idle and about 30W-40W when under load. What I've further noticed is that the on-board LED of the mainboard and the graphics card remain lit much longer than before, which suggest this PSU has got a strong reserve against power interruptions. (See also the review at TechPowerUp, which confirms a high Hold-Up time.) It won't replace a UPS, but it's good to know one has less to fear from the occasional "brief flickering of lights". It's a "must have"-product for me and the reason why I've bought it, because it represents the future of PSUs: higher efficiencies without any noise. There is no way you wouldn't want this. The only downside, and also the reason why I am giving it 4 out 5 stars, is it's currently high price.
Date published: 2017-04-17
Rated 4 out of 5 by from Excellent PSU design My media centre PC recently died, and after a little investigation it turned out to be the most expensive piece that had gone - the fanless PSU. I purchased the Seasonic as a replacement, at about half the cost of the original (price/performance has improved in the last few years). The Seasonic comes with a modular design that allows a range of power connectors to the motherboard and peripherals. While this is not uncommon, the PSU I replaced was the older single fixed bundle of cables type. If I were to need to replace this one in future, it would take far less effort unplugging and reattaching everything. The packaging was all high quality, the instructions clear, and it even came in a little velvet bag. The attaching screw points were in line with the existing case and sufficiently numerous that I expect it will fit most cases. Checking the PD, it maintains the reference volts better than its predecessor. It's too early to judge for durability, if it dies within a year I'll comment again. Please note that the PSU vents point upward; a tower case with vents on the top would likely be a best match.
Date published: 2017-02-03
Rated 5 out of 5 by from Silence is...the 520w Season fanless PSU ;-) Exactly what I was after. I'd measured my PC power usage at 288w at maximum load and chose this PSU to replace a normal fan cooled 750w PSU. I had managed to get all case noise down enough that the only sound was coming from my PSU. Once I replaced that with the 520w Season Platinum Fanless PSU...SILENCE! If what I've described is something you're trying to do...this PSU is worth the money for high quality, efficiency and silent operation.
Date published: 2016-10-20
Rated 5 out of 5 by from Shhhhh Bought for a quiet server, very slight clicking noise if you stick your ear right next to it but otherwise totally silent, runs cool even under load (8-core AMD FX 8320e, two GT720s, 3 SSDs and 2 HDDs). Will most likey buy another to replace the noisy PSU in my older server.
Date published: 2015-08-01
Rated 5 out of 5 by from Best power supply ever I've been through too many power supplies trying to find the one with the quietest fans, they all promised so much but still pumped out way too much noise for my liking. Then I discovered this! It's enough for my needs. If I was into gaming more and had two graphics cards I MAY think twice, but I think it could handle a general two card set up fine.
Date published: 2014-07-28
Rated 5 out of 5 by from Fairly Unique concept, superbly executed and so far running flawlessly In my case the PSU I had struggled to pull air to cool itself as the main system fan produces such good airflow over the top of the PSU fan. So after having that PSU reach silly temps under load and making a hideious racket under no load. Even with attempts at ducting (and this was a gold rated PSU) I decided to try a fanless. On arrival I was impressed with the solidity of the caseing - its rather full of holes for ventilation but ridgid as can be. Since installing it in my system even at full load for several hours of continous gaming its still running soo cool the air out the case only feels a few degrees up on ambient and the nearest I could get to the internal heatsinks with my thermocouple indicated around 40 celcius. I've only been running it a few weeks but I can't see it failing for a long time to come as its running so cool. N.B. While in my case with a 12" fan on one side it stays perfectly cool the lack of fan will almost certainly lead to overheating if the airflow in your case is poor. I expect a normal ATX format will work just fine but be catious and use a themometer in for the first few hours to be sure you case has sufficent airflow.. In conclusion I definatly recomend it as a quiet PSU for a general purpose computer in most cases - the load shouldn't build up heat. Or for a gaming rig just be careful you don't have too large a power requirement and have good airflow.
Date published: 2013-08-16
